A simulation is a small model of a real system that a computer plays forward in time. Take a shop that packs orders. Orders arrive at random moments, packers take one at a time, and packing takes longer for some orders than for others. When orders arrive faster than the packers can finish them, a queue forms. A simulation shows how long that queue gets and how long orders wait, without running the real shop.

The last post in this series showed such a model written as a YAML file and run with one command, with dynamic-des 0.16.0 to 0.19.0. The package is now called desflow. It still sends its events to Kafka, Redis, PostgreSQL, Parquet and Iceberg, and it can now also answer the question a simulation is usually built for, such as “would a third packer keep the wait under 2 seconds?”. Everything below runs on your own machine, without Docker.

This post covers what is new since dynamic-des 0.19.0:

A New Name

dynamic-des became desflow in 0.20.0. The new name reflects a wider scope: from sending simulated events to whole simulation studies, with a server to run them next. Why desflow explains the name. Only the names changed in that release:

1pip install desflow                     # was: pip install dynamic-des
2python -c "import desflow"              # was: import dynamic_des
3desflow --version                       # was: ddes --version

The old names still work, with a warning, until 0.30.0. The documentation moved to jaehyeon.me/desflow. Later releases changed some behaviour as well. If you upgrade a model from dynamic-des, the Upgrading section of each release in the Changelog lists what to change.

Modelling More of a Real System

A real shop has more going on than orders, packers and a packing time: customers give up when the queue is long, machines break, and some work needs two people at once. desflow runs on SimPy, the standard Python library for this kind of simulation, so a model written in Python could always build these by hand. Since 0.22.0, a model declares each of them in a few lines of YAML or builder code, with no SimPy code to write.

Customers who give up take two settings. In this excerpt of the patience example, each order waits at most a set number of seconds before it leaves, and after 100 seconds the shop takes no new orders:

 1arrivals:
 2  orders: {dist: exponential, rate: 0.5, spawn: pack, attributes: {patience: 20}}
 3  walk_ins: {dist: exponential, rate: 0.1, spawn: pack, attributes: {patience: 10}}
 4
 5tasks:
 6  pack:
 7    service: packing
 8    resource: packers
 9    patience: attr.patience    # leave after waiting this long
10    balk: t >= 100             # turn new orders away from 100 seconds

desflow records each order that gives up and each one turned away, as events and as counts.

A machine that breaks takes one more block. In the breakdowns example, a packing station fails about once a minute and takes 5 to 15 seconds to repair. The order it was packing waits and then carries on:

 1resources:
 2  station:
 3    current_cap: 2
 4    max_cap: 3
 5    breakdown:
 6      time_to_failure: {dist: exponential, rate: 0.0167}   # about once a minute
 7      repair: {dist: uniform, low: 5 s, high: 15 s}
 8      work: interrupt
 9
10tasks:
11  pack:
12    service: packing
13    resource: station
14    on_interrupt: resume

Each failure and each repair is recorded as an event. That record is useful beyond the simulation: it is the known answer that a fault detection model can be trained and tested against.

Releases 0.21.0 to 0.23.0 also add:

  • more ways to describe a time that varies, and durations such as 5 min anywhere a time is set;
  • stock that tasks take from and add to, such as parcels on a shelf;
  • orders that go through several steps, where the next step depends on the order;
  • work that interrupts other work, such as an urgent order;
  • ways to end a run, such as closing the shop and finishing the orders already inside;
  • replaying the arrival times of a real day from a file.

Since 0.23.0, a model can use every feature of SimPy 4.1.2 in YAML as well as in Python. The SimPy Compatibility page lists each feature with the test that checks it against SimPy.

Trusting the Numbers

A simulation draws its arrival and packing times at random, so two runs give different answers. One run might show a short wait by luck. To trust a result, run the model many times and look at the range the answers fall in. Releases 0.21.0 and 0.22.0 add the tools for this:

  • Statistics: each run measures waits, queue lengths and how busy each resource was. The first minutes can be left out, because the shop starts empty and would make the wait look shorter.
  • Repeated runs: desflow run --replications 10 runs a model ten times and gives the average of each measure, with a range that the true average very likely falls in (a 95% confidence interval).
  • Experiments: desflow experiment compares versions of a model and writes a report.
  • Fitting inputs: desflow fit turns measured times into a setting for the model.

The shop of the experiment example has two packers. An order arrives every 2.5 seconds on average, and packing takes 4 seconds on average. The example asks whether a third packer keeps the average wait under 2 seconds. The example holds the model, the wait measured in the real shop, and the study file experiment.yaml. The study runs one hour of the shop 20 times with two packers and 20 times with three:

 1experiment: packers
 2question: Does a third packer keep the mean wait under 2 seconds?
 3model: experiment_shop.yaml
 4until: 1 h
 5warmup: 3 min              # leave out the first 3 minutes
 6replications: 20
 7seed: 42
 8pairing: common            # both versions see the same orders
 9measures: [tasks.pack.wait_mean, resources.packers.utilization_avg]
10variants:
11  two: {}
12  three: {Shop.resources.packers.current_cap: 3}
13compare:
14  - {baseline: two, variant: three}
15checks:
16  - {measure: tasks.pack.wait_mean, variant: three, max: 2}
17observed:
18  file: ../observed_waits.csv   # the mean wait measured in the real shop
19  variant: two                  # the real shop has two packers

1$ desflow examples get experiment --api yaml
2wrote experiment/yaml/experiment.yaml
3wrote experiment/yaml/experiment_shop.yaml
4wrote experiment/observed_waits.csv
5...
6$ cd experiment/yaml
7$ desflow experiment experiment.yaml --output results/packers
8Wrote the artifacts and report.md to results/packers
9passed: three: tasks.pack.wait_mean max 2, checked 0.5919

Both versions see the same orders at the same times, so any difference comes from the third packer and not from luck. With three packers, even the top of the range of the average wait is well under 2 seconds, so the check passes. The experiment also compares two packers with the real shop: the wait measured there falls inside the range the model gives, which is evidence that the model describes the shop well.

The report, report.md, records the question, the model, the inputs and where they came from, every result and the limits of the study. The command fails when a check fails, so it can run in a CI pipeline.

Checking a Model Before Running It

A model with a wrong setting still runs and gives numbers that look reasonable, so nothing in the output shows the mistake. Release 0.25.0 adds a check that compares a model with simple arithmetic before it runs.

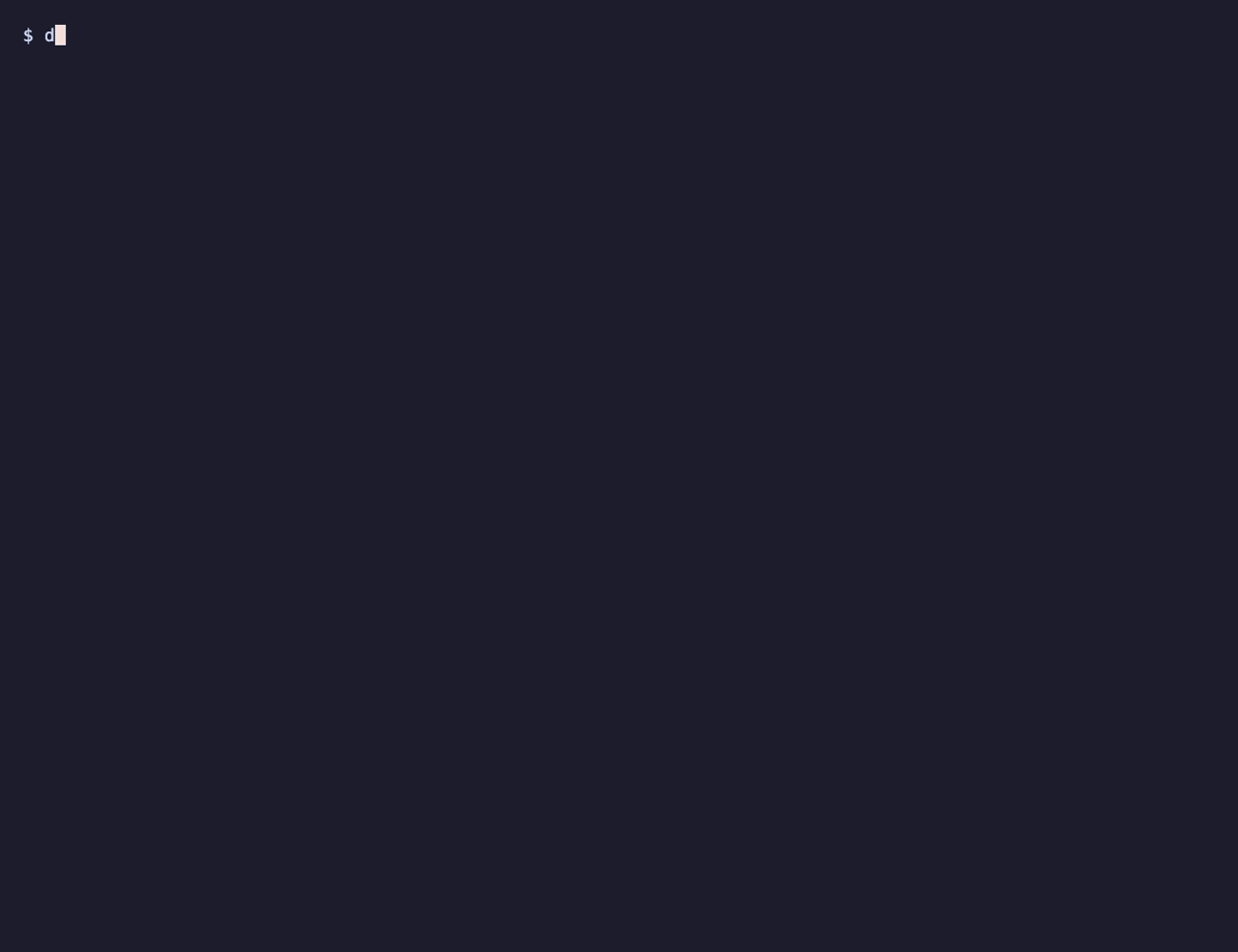

The recording shows this on the shop in three steps. First, desflow checks the model without running it. Then it runs the model ten times to confirm the check. Last, it runs the experiment from the previous section.

desflow explain on the shop, then explain –verify with ten one-hour runs that agree with the analysis, then desflow experiment, whose check that three packers keep the mean wait under 2 seconds passes

Queueing theory, the mathematics of waiting lines, describes a line such as the shop’s with a few numbers, each written as a letter. desflow explain works them out from the model and prints them:

  • λ (lambda), the arrival rate: how many orders arrive a second. An order every 2.5 seconds is 0.4 a second.
  • μ (mu), the service rate: how many orders one packer finishes a second. Packing takes 4 seconds, so one packer finishes 0.25 a second.
  • c, the capacity: the number of packers, 2.
  • ρ (rho), the utilisation: the share of time the packers are busy. Two packers finish c × μ = 0.5 orders a second while 0.4 arrive, so ρ = λ ÷ (c × μ) = 0.4 ÷ 0.5 = 0.8. They are busy 80% of the time.

When ρ is 1 or more, orders arrive faster than they are packed, and the queue grows for as long as the shop stays open. One packer would give ρ = 0.4 ÷ 0.25 = 1.6.

desflow explain works this out for every resource in a model, without running it:

 1$ desflow explain experiment_shop.yaml
 2...
 3Resources
 4+---------------------------------------------------+
 5| resource |   λ |    μ | c |   ρ | Wq | L | status |
 6|----------+-----+------+---+-----+----+---+--------|
 7| packers  | 0.4 | 0.25 | 2 | 0.8 |  - | - | OK     |
 8+---------------------------------------------------+
 9packers by units
10+-----------------------+
11| c |      ρ | status   |
12|---+--------+----------|
13| 1 |    1.6 | UNSTABLE |
14| 2 |    0.8 | OK       |
15| 3 | 0.5333 | OK       |
16| 4 |    0.4 | OK       |
17+-----------------------+
18Bottleneck: packers

The first table holds those four numbers for the packers, and three more columns:

  • Wq: the average time an order waits in the queue.
  • L: the average number of orders in the shop, waiting or being packed.
  • status: OK while ρ is below 0.85, CONGESTED from 0.85, where the queue gets long quickly, and UNSTABLE from 1, where it never stops growing.

Wq and L are blank here. A formula gives them only for simpler shops, such as one with a single packer, and explain leaves them out rather than guess.

The second table, packers by units, works out ρ for one to four packers, which shows how many packers the shop needs. Bottleneck names the resource with the highest ρ.

The second step, --verify, runs the model and checks it against the arithmetic. Here it runs one hour of the shop ten times:

 1$ desflow explain experiment_shop.yaml --verify --replications 10 --until 1h
 2...
 3+------------------------------------------------------------------------+
 4| node    | measure      | analysis | measured |        ± | result       |
 5|---------+--------------+----------+----------+----------+--------------|
 6| packers | utilization  |      0.8 |   0.7953 |  0.01561 | agrees       |
 7| packers | queue_length |        - |    1.823 |   0.2856 | not compared |
 8| pack    | wait         |        - |    4.505 |   0.6483 | not compared |
 9| orders  | throughput   |      0.4 |   0.4002 | 0.007201 | agrees       |
10+------------------------------------------------------------------------+

Each row is one measure of one part of the model:

  • node: the part measured: the packers, the pack task or the orders arrival.
  • measure: what was measured. throughput is how many orders leave the shop a second.
  • analysis: the value the arithmetic gives, or - where no formula applies.
  • measured: the average over the ten runs.
  • ±: give or take: the true average very likely lies within this distance of the measured one (a 95% confidence interval).
  • result: agrees when the analysis lies within that range, differs when it does not, and not compared when there is no analysis to compare.

The runs keep the packers as busy as the arithmetic says, and finish orders as fast as they arrive, so the model does what its settings describe. The runs also measure the wait that no formula gave. Whether the model matches the real shop is a different question, which the experiment answers with the wait measured there.

Two smaller commands help before a run as well. desflow run --sample 5 prints the first five events, without sending anything to the model’s destinations. desflow dist turns a measured average and spread of packing times into the settings a model needs.

Help With Writing a Model

A blueprint is easier to write when the editor knows its settings. Release 0.24.0 ships a description of every setting as a JSON Schema. With the Red Hat YAML extension in VS Code, one line at the top of a blueprint makes the editor suggest settings and mark a misspelt one as you type:

1# yaml-language-server: $schema=https://jaehyeon.me/desflow/latest/schema/blueprint.schema.json

The same release adds a skill for AI coding assistants such as Claude Code. It teaches an assistant to write a blueprint, check it with desflow explain, and run it enough times to trust the result. With the GitHub CLI 2.90.0 or later, one command installs it for Claude Code:

1gh skill install jaehyeon-kim/desflow desflow --agent claude-code --scope user

Use an AI Assistant also shows how to install it by hand.

Documentation to Learn From

The documentation now teaches simulation itself, not only the library. The Learn section explains waiting lines, why one run is not enough, how to check a model, and the steps of a simulation study, with code you can run. The tutorials build up the shop one idea at a time, from a first model to fitting measured times.

The new Complete Model tutorial goes through a whole study in one page, from measured data to a recommendation. Command Line runs every command on one shop.

Try It Out

1# desflow, the library and its command
2pip install desflow
3
4# desflow fit, which needs scipy and matplotlib
5pip install "desflow[fit]"
6
7# Download the shop of this post and check it
8desflow examples get experiment --api yaml
9cd experiment/yaml && desflow explain experiment_shop.yaml
