Live Parameters: `SimulationRegistry`

Every run has one SimulationRegistry, at env.registry. It maps dot-notation paths, such as Shop.resources.packers.current_cap, to the values the simulation reads. An ingress connector, a scenario or a process changes a parameter by updating its path, and the simulation follows the change without restarting.

Registry Paths

run() flattens the configuration into the registry, and every path an ingress message, a scenario or registry.get names has one of these forms:

Builder call	Paths
`add_arrival(name, ...)`, `add_service(name, ...)`	`<sim_id>.arrival.<name>.rate` and `<sim_id>.service.<name>.rate` for an exponential distribution, `.value` for a constant, otherwise `.mean` and `.std`, and `.low` for a truncated normal
`add_resource(name, ...)`, `add_container(name, ...)`	`<sim_id>.resources.<name>.current_cap` and `.max_cap`, `<sim_id>.containers.<name>.current_cap` and `.max_cap`
`add_variable(name, value)`	`<sim_id>.variables.<name>`

Stores, registered through SimParameter(stores=...) on the low-level API, take <sim_id>.stores.<name>.current_cap and .max_cap. An update to a path that does not exist is logged as a warning and ignored.

compile_parameters() on a SimulationContext returns the SimParameter that run() registers, so the paths of a configuration can be checked before the run.

docs/snippets/pages/registry.py:paths

params = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="exponential", rate=0.5)},
    service={"packing": DistributionConfig(dist="normal", mean=3.0, std=0.5)},
    resources={"packers": CapacityConfig(current_cap=2, max_cap=5)},
    variables={"conveyor_speed": 1.5},
)
env = DynamicRealtimeEnvironment(factor=0.0)
env.registry.register_sim_parameter(params)
# Registered paths include:
#   Shop.arrival.orders.rate
#   Shop.service.packing.mean, Shop.service.packing.std
#   Shop.resources.packers.current_cap, Shop.resources.packers.max_cap
#   Shop.variables.conveyor_speed
print(env.registry.get("Shop.resources.packers.current_cap").value)  # 2

How an Update Is Applied

env.registry.update(path, value) applies one change. The checks run in order, and an accepted value reaches the parts that read it:

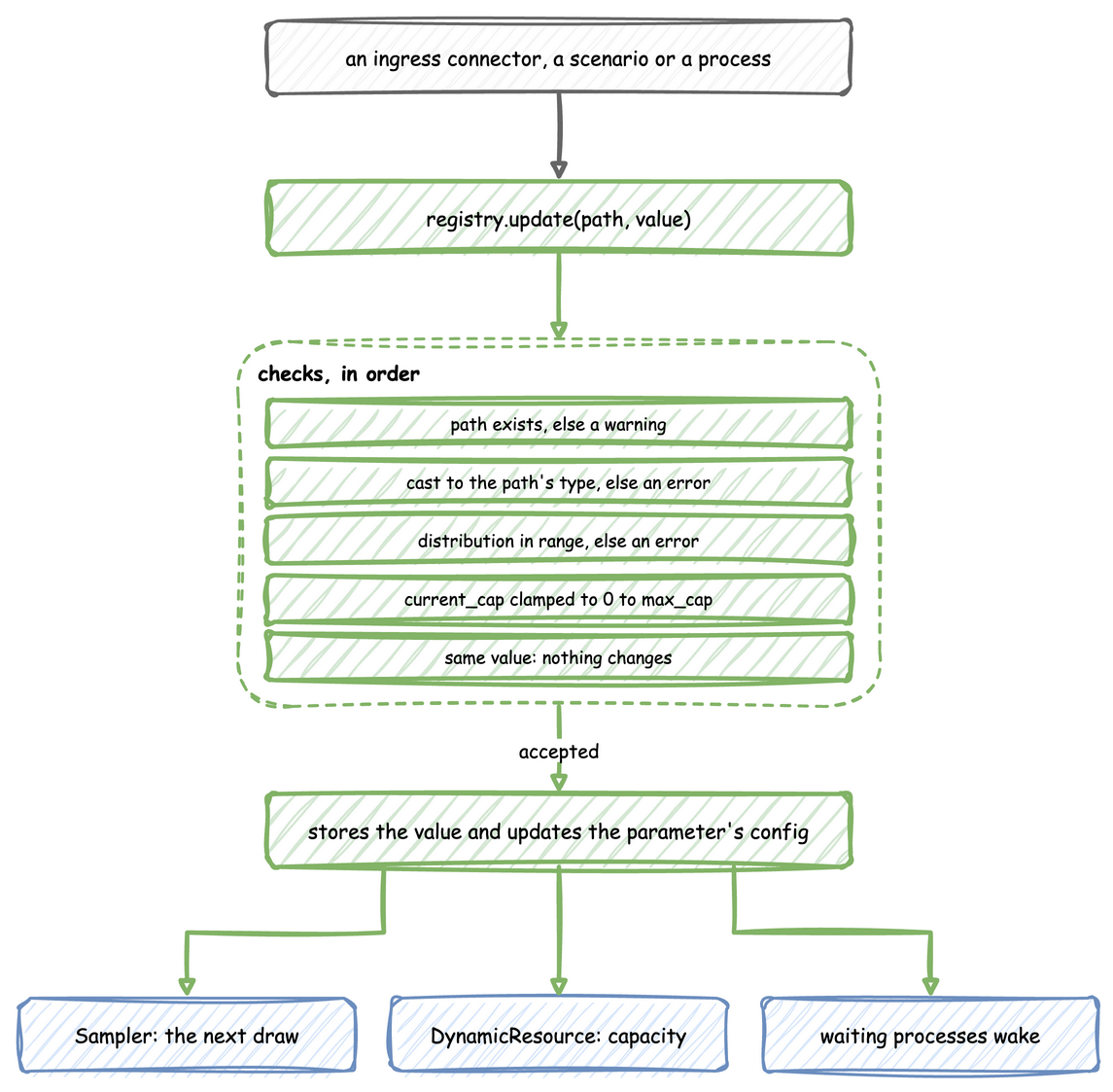

An update from an ingress connector, a scenario or a process passes five checks, then the registry stores the value and updates the parameter's config; the sampler, the resource and waiting processes follow

A path that does not exist is logged as a warning, and the update is ignored.
A value of a different type is converted to the type the path holds, so the string "5" sent to an integer path becomes 5. The conversion is Python's own, so 2.5 sent to an integer path becomes 2. A value that cannot be converted is logged as an error, and the update is ignored.
A distribution parameter outside its range, such as a negative std or a rate of 0, is logged as an error, and the update is ignored. The rules are the ones checked at load, listed under dist.
A current_cap below 0 or above the path's max_cap is stored as 0 or max_cap, with a warning.
A value equal to the current one changes nothing.
Otherwise the value is replaced, and the configuration object the path belongs to is updated too, such as the rate of a DistributionConfig or an entry of the variables.

Ingress connectors run on a background thread, so they do not call update themselves. Each puts a (path, value) pair on a queue, and a SimPy process started by setup_ingress applies everything queued every 0.1 simulation seconds. At factor=1.0 an update therefore lands within 0.1 seconds of arriving. The simulation time it lands at depends on when it arrives, so a change that must happen at an exact simulation time is a scenario.

docs/snippets/pages/registry.py:update

env.registry.update("Shop.resources.packers.current_cap", 3)  # applied
env.registry.update("Shop.resources.packers.current_cap", 9)  # stored as 5, the max_cap
env.registry.update("Shop.service.packing.std", -1.0)  # refused, the old 0.5 stays
env.registry.update("Shop.resources.lath.current_cap", 3)  # no such path: ignored

What Follows a Change

Arrival and service distributions. A Sampler reads the configuration object each time it draws, so the next draw uses the new value. context.wait_for_arrival draws when it is called, so the arrival already being waited for keeps its old gap. @app.task draws the service time once the resource is acquired, so a task still in the queue uses the new value.
Resource capacity. A DynamicResource follows current_cap, rounded down to a whole number and limited to between 0 and the max_cap the registry holds. A change to max_cap applies current_cap again under the new limit. Resources describes what happens when the capacity shrinks below the number of tasks in progress.
Container capacity. A DynamicContainer follows current_cap, fractions included even when the starting value is a whole number, limited to between 0 and the max_cap the registry holds. A change to max_cap applies current_cap again under the new limit. A DynamicStore does the same with whole numbers.
Variables. The new value is stored. A process reads it with env.registry.get(path).value.

docs/snippets/pages/registry.py:follow

packing = env.registry.get_config("Shop.service.packing")
print(packing.mean)  # 3.0: the Sampler reads this object on its next draw
env.registry.update("Shop.service.packing.mean", 4.0)
print(packing.mean)  # 4.0: the same object, updated in place

Sources of Updates

Each source lands its change at a different moment:

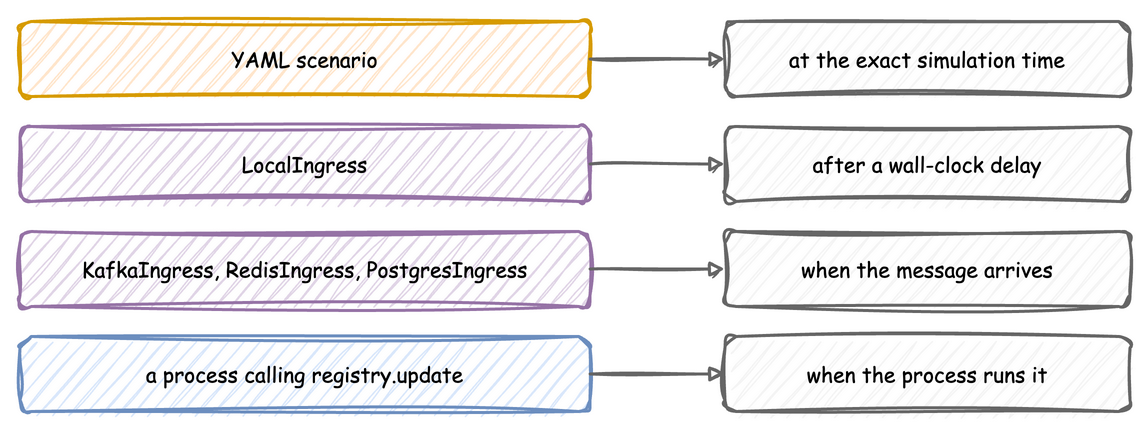

A YAML scenario lands at the exact simulation time, LocalIngress after a wall-clock delay, the Kafka, Redis and PostgreSQL connectors when a message arrives, and a process when it runs

Ingress connectors: Kafka, Redis, PostgreSQL and LocalIngress. Connectors gives the message each one expects.
A scenario in a YAML blueprint, compared with LocalIngress below.
A process, which calls env.registry.update(path, value) directly, as the breaks process in Python in a Blueprint does.

Scenarios versus `LocalIngress`

A YAML blueprint can carry a scenario: a list of registry changes, each with the simulation time it applies at, such as {at: 10, path: Shop.resources.packers.current_cap, value: 3}. Script an experiment shows a complete file.

docs/snippets/yaml/scenario.yaml

# The first blueprint with a scripted experiment: a second packer starts at 30 s,
# orders arrive twice as fast from 1 min, and the extra packer leaves at
# 2 min. Every change lands at exactly that simulation time, on every run.
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 1

egress:
  - type: Console

resources:
  packers: {current_cap: 1, max_cap: 3}

services:
  packing: {dist: normal, mean: 4.0, std: 1.0}

arrivals:
  orders: {dist: exponential, rate: 0.2, spawn: pack_order}

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {status: finished}
    id_field: order_id

telemetry:
  # Shows each change as it lands.
  - interval: 10
    publish:
      packers.capacity: packers.capacity
      packers.queue_length: packers.queue_length

scenario:
  - {at: 30, path: Shop.resources.packers.current_cap, value: 2}
  - {at: 1 min, path: Shop.arrival.orders.rate, value: 0.4}
  - {at: 2 min, path: Shop.resources.packers.current_cap, value: 1}

run:
  until: 3 min

A scenario is not a connector. It is compiled into a SimPy process that waits on the simulation clock, so each change lands at exactly its at, on every run and at any factor, including factor=0. Every path is checked against the registry when the file is loaded, so a misspelt path stops the load with its line number. LocalIngress waits on the wall clock instead, and an unknown path is only logged as a warning when it is due.

A scenario and an ingress connector can be used together. Both write to the same registry, so a scripted baseline can run while an operator steers over Kafka. When both change the same path, the later write wins.

Waiting for a Change

env.registry.get(path).wait_for_change() returns a SimPy event that fires when the value at that path changes. Each value has one change signal, and the first process waiting takes it. DynamicResource, DynamicContainer and DynamicStore already wait on their current_cap and max_cap, so wait only on paths that nothing else waits on, such as variables.

docs/snippets/pages/registry.py:wait

def watch_speed(env):
    """Logs the conveyor speed every time it changes."""
    speed = env.registry.get("Shop.variables.conveyor_speed")
    while True:
        yield speed.wait_for_change()
        print(f"t={env.now}: conveyor speed is now {speed.value}")


env.process(watch_speed(env))
