Complete Model

Each earlier page added one idea to the shop and answered one question. This page carries out a whole study, from the shop's own records to a recommendation, in the steps of A Simulation Study. In the busy hour the shop has one picker and three packers, and it can hire one more person, as a second picker or a fourth packer. This page asks: which shop design should be recommended?

  • Decision: today's shop, a second picker or a fourth packer. The rule: recommend the design in which the upper end of the 95% interval of both mean waits is under 1 second.
  • Measures: the mean wait for picking and the mean wait for packing, over the orders that start each step after a warm-up, which Choose Warm-up and Precision sets at 2 minutes.
  • Runs: one busy hour, from an order's arrival to its shipment, with the shelf of shipping boxes and its deliveries. Each design runs 40 replications with the same seeds, spawned from 42. Before that, desflow explain --verify runs 10 replications, and Choose Warm-up and Precision runs today's design 40 times after each of three warm-ups.
  • Assumptions: orders arrive at random at a steady rate, the picker and the packers work the whole hour, and each order is one parcel in one box.

What You Add

This page adds no new feature: the study uses the built-in commands of the earlier pages, in the order of a study. desflow fit from Fitting the Inputs fits the inputs to the records. desflow explain --verify from Checking a Model checks the program against the queueing formulas. An experiment, as in Comparing Designs, compares the model with values observed in the shop, measures each design with the same seeds and checks the decision rule. desflow report writes the report. The model puts picking before packing, as in A Flow of Tasks, and adds a shelf of boxes, from which each order takes one, as in Stock.

Fitting needs the fit extra, which adds scipy and matplotlib:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# The desflow command, with uv
uv tool install "desflow[fit]"

# A Python file, with uv outside a project
uv run --with "desflow[fit]" python complete_model.py

# In a uv project
uv add "desflow[fit]"

# With pip
pip install "desflow[fit]"

Fit the Inputs

For each of 300 orders in a busy hour, the shop recorded the gap since the order before, the time to pick the order and the time to pack it, in seconds. complete_model_observed.csv holds them. The values are illustrative, and a real study uses the shop's own records. Save the files from Full Files in one folder, download the records into it, and run the commands there:

1
curl -O https://raw.githubusercontent.com/jaehyeon-kim/desflow/v0.25.0/docs/snippets/tutorials/complete_model_observed.csv

Fit each column, with no time below 0:

1
2
3
desflow fit complete_model_observed.csv --column gap_seconds --lower 0 --out fitted/complete_orders.yaml
desflow fit complete_model_observed.csv --column picking_seconds --lower 0 --out fitted/complete_picking.yaml
desflow fit complete_model_observed.csv --column packing_seconds --lower 0 --out fitted/complete_packing.yaml
docs/snippets/tutorials/complete_model.py:fit
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
with OBSERVED.open(newline="", encoding="utf-8") as handle:
    rows = list(csv.DictReader(handle))
columns = {
    "orders": "gap_seconds",
    "picking": "picking_seconds",
    "packing": "packing_seconds",
}
# Every column is in seconds, and no time can be below 0
return {
    name: fit_column([float(row[column]) for row in rows], unit="s", lower=0)
    for name, column in columns.items()
}
docs/snippets/tutorials/complete_model_low_level.py:fit
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
with OBSERVED.open(newline="", encoding="utf-8") as handle:
    rows = list(csv.DictReader(handle))
columns = {
    "orders": "gap_seconds",
    "picking": "picking_seconds",
    "packing": "packing_seconds",
}
# Every column is in seconds, and no time can be below 0
return {
    name: fit_column([float(row[column]) for row in rows], unit="s", lower=0)
    for name, column in columns.items()
}

The best fit of each column, as desflow fit wrote it:

docs/snippets/yaml/fitted/complete_orders.yaml
1
2
3
# Fitted by desflow fit from complete_model_observed.csv, column gap_seconds: exponential, from 300 values in s, written in seconds.
dist: exponential
rate: 1.50719
docs/snippets/yaml/fitted/complete_picking.yaml
1
2
3
4
# Fitted by desflow fit from complete_model_observed.csv, column picking_seconds: gamma, from 300 values in s, written in seconds.
dist: gamma
shape: 4.01421
scale: 0.110615
docs/snippets/yaml/fitted/complete_packing.yaml
1
2
3
4
# Fitted by desflow fit from complete_model_observed.csv, column packing_seconds: gamma, from 300 values in s, written in seconds.
dist: gamma
shape: 8.56765
scale: 0.204467

Each fit also comes with its diagnostics. The table desflow fit prints for the packing times:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
300 rows: 300 used, 0 missing, 0 invalid
family            status              AIC  KS stat KS p (approx.)  parameters or reason
exponential       rejected                                         its std is 1.752, the data's is 0.5887: more than 25% apart
normal            fitted            537.5  0.05413         0.3311  mean=1.7518, std=0.588695 (can draw below the lower bound 0)
lognormal         fitted            534.3   0.0501         0.4248  mean=1.75783, std=0.643777
truncated_normal  fitted            536.5  0.05303         0.3552  mean=1.74874, std=0.593237, low=0
constant          skipped                                          the values are not all equal
uniform           rejected                                         its std is 0.9093, the data's is 0.5887: more than 25% apart
triangular        fitted            546.3   0.1169      0.0004971  low=0.465992, mode=1.41, high=3.71725
gamma *           fitted            523.3  0.02959         0.9484  shape=8.56765, scale=0.204467
weibull           fitted            534.9  0.05002          0.427  shape=3.1729, scale=1.95579
empirical         fitted                                           values: 300 numbers
* best: gamma

The gamma has the lowest AIC, and its KS p-value of 0.9484 gives no reason to reject it. AIC and the KS Test explains both scores. The same tables give a KS p-value of 0.995 for the exponential of the gaps and 0.634 for the gamma of the picking times.

The gaps fit an exponential distribution at about 1.5 orders a second, which is the distribution of the gaps between orders placed independently of each other. The picking and packing times each fit a gamma distribution, with means of about 0.44 and 1.75 seconds, close to the means of the data. These are inputs: the fit says which distribution draws times like the recorded ones. Whether the model then behaves like the shop is a separate question, answered by its outputs below. The model reads the fits in place of the times:

docs/snippets/yaml/complete_model.yaml:inputs
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
arrivals:
  # The fitted gaps between orders; each order starts with picking
  orders: !include {file: fitted/complete_orders.yaml, spawn: pick_order}
  # A delivery of 1,000 boxes every 10 minutes
  deliveries: {dist: constant, value: 10 min, spawn: restock}

services:
  # The fitted picking and packing times
  picking: !include fitted/complete_picking.yaml
  packing: !include fitted/complete_packing.yaml

The fitted file of the gaps holds only a distribution, and an arrival also needs its spawn. !include {file: ..., spawn: pick_order} reads the file and adds the other keys to it. Input Fitting describes both forms of !include.

docs/snippets/tutorials/complete_model.py:inputs
1
2
3
4
5
6
7
# The fitted gaps between orders; each order starts with picking
.add_arrival("orders", **FITS["orders"], spawn="pick_order")
# A delivery of 1,000 boxes every 10 minutes
.add_arrival("deliveries", dist="constant", value=600, spawn="restock")
# The fitted picking and packing times
.add_service("picking", **FITS["picking"])
.add_service("packing", **FITS["packing"])

FITS holds result.settings() of each fit. It keeps the same six significant digits as the fitted files that the blueprint reads, so the builder draws the same values as the blueprint.

docs/snippets/tutorials/complete_model_low_level.py:inputs
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
PARAMS = SimParameter(
    sim_id="Shop",
    arrival={
        # The fitted gaps between orders
        "orders": DistributionConfig(**FITS["orders"]),
        # A delivery of 1,000 boxes every 10 minutes
        "deliveries": DistributionConfig(dist="constant", value=600),
    },
    # The fitted picking and packing times
    service={
        "picking": DistributionConfig(**FITS["picking"]),
        "packing": DistributionConfig(**FITS["packing"]),
    },
    # One picker and three packers, as the shop has today
    resources={
        "pickers": CapacityConfig(current_cap=1, max_cap=4),
        "packers": CapacityConfig(current_cap=3, max_cap=10),
    },
    # Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
    containers={"stock": ContainerConfig(current_cap=2000, max_cap=2000, level=1000)},
)

Build the Model

The shop has one picker, three packers and a shelf of shipping boxes:

docs/snippets/yaml/complete_model.yaml:resources
1
2
3
4
5
6
7
8
resources:
  # One picker and three packers, as the shop has today
  pickers: {current_cap: 1, max_cap: 4}
  packers: {current_cap: 3, max_cap: 10}

containers:
  # Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
  stock: {current_cap: 2000, max_cap: 2000, level: 1000}
docs/snippets/tutorials/complete_model.py:resources
1
2
3
4
5
# One picker and three packers, as the shop has today
.add_resource("pickers", current_cap=1, max_cap=4)
.add_resource("packers", current_cap=3, max_cap=10)
# Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
.add_container("stock", current_cap=2000, max_cap=2000, level=1000)

The resources and the shelf are in PARAMS above.

Each order is picked, then packed, then shipped in a box from the shelf. A delivery puts 1,000 boxes on the shelf every 10 minutes:

docs/snippets/yaml/complete_model.yaml:flow
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
tasks:
  pick_order:
    service: picking
    resource: pickers
    payload: {event_type: order_picked}
    next: pack_order
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}
    next: ship_order
  ship_order:
    # Each parcel leaves in a box from the shelf; waits while the shelf is empty
    get: {container: stock, amount: 1}
    payload: {event_type: order_shipped}
  restock:
    put: {container: stock, amount: 1000}
    payload: {event_type: stock_delivered}
docs/snippets/tutorials/complete_model.py:flow
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
@app.task(service_id="picking", resource_id="pickers", next="pack_order")
def pick_order(task_id: int):
    return {"event_type": "order_picked"}

@app.task(service_id="packing", resource_id="packers", next="ship_order")
def pack_order(task_id: int):
    return {"event_type": "order_packed"}

# Each parcel leaves in a box from the shelf; waits while the shelf is empty
@app.task(get={"container": "stock", "amount": 1})
def ship_order(task_id: int):
    return {"event_type": "order_shipped"}

@app.task(put={"container": "stock", "amount": 1000})
def restock(task_id: int):
    return {"event_type": "stock_delivered"}
docs/snippets/tutorials/complete_model_low_level.py:flow
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
# Each task's service, resource and the task after it; None where it has none
TASKS = {
    "pick_order": ("picking", "pickers", "pack_order"),
    "pack_order": ("packing", "packers", "ship_order"),
    "ship_order": (None, None, None),
}
EVENTS = {
    "pick_order": "order_picked",
    "pack_order": "order_packed",
    "ship_order": "order_shipped",
}


def task(env, sampler, shop, name, key, task_id, counters):
    """Runs one task of an order, then starts the task after it."""
    service, resource, following = TASKS[name]
    status = {"path_id": f"Shop.service.{service}"} if service else {}

    def publish(value):
        env.publish_event(key, value, task=name, instance=task_id)

    if name == "pick_order":
        env.stats.flow_started("orders")  # the order enters the shop
    publish({**status, "status": "queued"})
    env.stats.task_queued(name, task_id)
    if resource is not None:
        with shop[resource].request() as request:
            yield request
            publish({**status, "status": "started"})
            env.stats.task_started(name, task_id)
            yield env.timeout(
                sampler.sample(env.registry.get_config(status["path_id"]))
            )
            publish({"event_type": EVENTS[name]})
            env.stats.task_finished(name, task_id)
    else:
        # Each parcel leaves in a box from the shelf; waits while the shelf is empty
        yield shop["stock"].get(1)
        publish({"status": "started"})
        env.stats.task_started(name, task_id)
        publish({"event_type": EVENTS[name]})
        env.stats.task_finished(name, task_id)
    if following is None:
        env.stats.flow_finished("orders")  # the order leaves the shop
        return
    instance = next(counters[following])
    env.process(task(env, sampler, shop, following, key, instance, counters))


def restock(env, shop, key, task_id):
    """One delivery: 1,000 boxes onto the shelf, waiting while there is no room."""
    env.stats.flow_started("deliveries")
    yield shop["stock"].put(1000)
    env.publish_event(
        key, {"event_type": "stock_delivered"}, task="restock", instance=task_id
    )
    env.stats.task_finished("restock", task_id)
    env.stats.flow_finished("deliveries")

shop["stock"].get(1) and put(1000) are SimPy's container operations, which Stock introduced. get waits until the shelf holds a box, and put waits until the shelf has room for the boxes.

The three tabs publish the same records. The model keeps the typical statistics, so each task has a mean wait and each resource a utilisation.

Check the Model

A model is checked twice before it answers anything: against the model on paper, which is verification, and against the shop, which is validation (Checking and Validating).

Against Theory

desflow explain --verify puts the queueing formulas beside 10 replications of the model:

1
desflow explain complete_model.yaml --verify --replications 10

1
desflow explain complete_model.py --verify --until "1 h" --replications 10

explain reads the one SimulationContext the file defines at module level, app. A builder file has no run.until, so --until gives the length of each run.

desflow explain does not support low-level models. It reads which arrival starts which task and which resource each task uses, and a low-level model does not declare those links: its SimPy code makes them as it runs.

The resources, what is not estimated, and the comparison:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Resources
+---------------------------------------------------------------------+
| resource |     λ |      μ | c |      ρ |     Wq |     L | status    |
|----------+-------+--------+---+--------+--------+-------+-----------|
| pickers  | 1.507 |  2.252 | 1 | 0.6692 | 0.5611 | 1.515 | OK        |
| packers  | 1.507 | 0.5708 | 3 | 0.8801 |      - |     - | CONGESTED |
+---------------------------------------------------------------------+
Bottleneck: packers
Not estimated:
  task ship_order: it has get, which the formulas leave out
  task restock: it has put, which the formulas leave out
  wait at packers: no closed formula for c > 1 with non-exponential times
  container stock: no queueing analysis for a container
Verify: 10 runs to 3600 s, seed 42
+---------------------------------------------------------------------------+
| node       | measure      | analysis | measured |        ± | result       |
|------------+--------------+----------+----------+----------+--------------|
| pickers    | utilization  |   0.6692 |   0.6726 | 0.006723 | agrees       |
| pickers    | queue_length |   0.8457 |   0.8605 |  0.05853 | agrees       |
| packers    | utilization  |   0.8801 |   0.8816 | 0.009924 | agrees       |
| packers    | queue_length |        - |    2.869 |   0.4413 | not compared |
| pick_order | wait         |   0.5611 |   0.5691 |  0.03476 | agrees       |
| pack_order | wait         |        - |    1.895 |   0.2785 | not compared |
| orders     | throughput   |        - |    1.511 |  0.01516 | not compared |
| deliveries | throughput   |        - | 0.001437 |        0 | not compared |
+---------------------------------------------------------------------------+
Not compared:
  packers queue_length: no closed formula for c > 1 with non-exponential times
  pack_order wait: no closed formula for c > 1 with non-exponential times
  orders throughput: task ship_order: it has get, which the formulas leave out
  deliveries throughput: task restock: it has put, which the formulas leave out
--verify checks the implementation against the queueing analysis where it applies; it does not show that the model is close enough to the real system

The picker is one server, and the orders reach it directly, with exponential gaps. For such a server Kingman's formula gives the wait exactly, and the utilisation, the queue and the wait all agree with the runs. The packers' utilisation agrees too, and at a utilisation of 0.88 they are the bottleneck. Three packers with gamma times are outside the formulas' assumptions, so their wait has no closed formula, and only the runs measure it. The shipping step takes a box from the shelf, which the formulas leave out, so the orders' throughput is not compared either. Agreement shows that the program computes what the model on paper says. It says nothing about whether the model is close enough to the shop.

Against the Shop

Suppose the shop also measured, over the busy hour after its first 2 minutes, a mean wait of 0.57 seconds for picking, 1.9 seconds for packing, and the packers busy 88% of the time. complete_model_outputs.csv, in Full Files, holds these values, with the unit, population and horizon of each. They were chosen by hand to be close to the model's means for today's design, so they agree with the model by construction. The page shows the method, not evidence about a real shop. The experiment run in Compare the Designs places each beside the interval of today's design, current:

docs/snippets/yaml/complete_model_experiment.yaml:observed
1
2
3
# Values made from the model's own runs to show the method, not shop records;
# the real shop runs the current design
observed: {file: complete_model_outputs.csv, variant: current}
docs/snippets/tutorials/complete_model.py:observed
1
2
3
4
5
6
# Values made from the model's own runs to show the method, not shop records;
# the real shop runs the current design
"observed": {
    "file": str(HERE / "complete_model_outputs.csv"),
    "variant": "current",
},

The same key, in the same mapping as the model below.

All three values lie inside the model's interval for their mean: 0.57 inside 0.55 to 0.58 seconds, 1.9 inside 1.75 to 2.08, and 88 inside 87.44 to 88.47.

An interval for a mean is narrow, though, and one observed hour is not a mean. One observed hour varies as much as one run does. Across the 40 replications of current, the standard deviation of one run is:

  • 0.048 seconds for the picking wait;
  • 0.515 seconds for the packing wait;
  • 1.615 percentage points for the packers' utilisation.

Only 7, 9 and 9 of the 40 single runs fall inside the three intervals. A real observed hour can therefore fall outside an interval while the model is right. For this reason a study also compares the observed value with the spread of single runs. Here each observed value lies within one such standard deviation of the model's mean: 0.57 is 0.16 standard deviations from it, 1.9 is 0.03 and 88 is 0.03.

Choose Warm-up and Precision

Each run starts with the shop empty. The real busy hour does not start empty, because orders are already in the shop when it starts. The study therefore treats the hour as steady state and leaves out the empty start. Run today's design 40 times after three candidate warm-ups and compare the mean waits:

1
WARMUP=0 desflow run complete_model.yaml --replications 40 --measure tasks.pick_order.wait_mean --measure tasks.pack_order.wait_mean

WARMUP="10 min" runs the third candidate, and the file's own setting of 2 minutes is the second.

docs/snippets/tutorials/complete_model.py:warmups
1
2
3
4
return {
    warmup: replicate(shop, 40, seed=42, until="1 h", warmup=warmup, measures=WAITS)
    for warmup in (0, "2 min", "10 min")
}
docs/snippets/tutorials/complete_model_low_level.py:warmups
1
2
3
4
return {
    warmup: replicate(SHOP, 40, seed=42, until=3600, warmup=warmup, measures=WAITS)
    for warmup in (0, WARMUP, 600)
}

The mean waits over the 40 replications, in seconds, with the 95% half-width:

Warm-up Picking Packing
none 0.562 ± 0.014 1.903 ± 0.163
2 minutes 0.562 ± 0.015 1.916 ± 0.165
10 minutes 0.563 ± 0.015 1.915 ± 0.175

Without a warm-up, the mean packing wait is 0.013 seconds lower than with 2 minutes, well inside the half-width. A warm-up of 10 minutes gives the same means as 2 minutes. Every candidate therefore passes the comparison. The rule of Output Analysis also needs the warm-up to cover the climb in a plot of the start. This shop has no plot of its own. Its packers are about as busy as those of Trusting Results, 88% of the time against 90%, and that page's plot climbs for about a minute and a half. The study therefore keeps 2 minutes. The comparison holds for this shop and this hour only, and a busier shop or another horizon needs it run again.

The precision the decision needs is set by the rule: each interval must lie wholly on one side of 1 second. With 40 replications of each design, the experiment below gives half-widths of at most 0.17 seconds. The interval nearest the bound, that of the fourth packer's picking wait, ends at 0.58 seconds. Every interval is far from 1 second, so 40 replications are enough. A design whose interval crossed 1 second would need more replications before it could be decided (How Many Replications).

Compare the Designs

The experiment runs each design 40 times, with the measures of the decision and of the checks:

docs/snippets/yaml/complete_model_experiment.yaml:model
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# The busy hour, with its 2-minute warm-up; 40 runs of each design
model: complete_model.yaml
until: 1 h
replications: 40
seed: 42
measures:
  - tasks.pick_order.wait_mean
  - tasks.pack_order.wait_mean
  - resources.packers.utilization_avg
  - tasks.ship_order.wait_mean
docs/snippets/tutorials/complete_model.py:model
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# The busy hour, with its 2-minute warm-up; 40 replications of each design
"model": shop,
"until": "1 h",
"replications": 40,
"seed": 42,
"measures": [
    "tasks.pick_order.wait_mean",
    "tasks.pack_order.wait_mean",
    "resources.packers.utilization_avg",
    "tasks.ship_order.wait_mean",
],
docs/snippets/tutorials/complete_model_low_level.py:model
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
# The busy hour as a LowLevelModel, and its 2-minute warm-up
"model": SHOP,
"warmup": WARMUP,
"until": 3600,
"replications": 40,
"seed": 42,
"measures": [
    "tasks.pick_order.wait_mean",
    "tasks.pack_order.wait_mean",
    "resources.packers.utilization_avg",
    "tasks.ship_order.wait_mean",
],

Each design changes one capacity, and every design runs with the same seeds, so each is compared with today's shop seed by seed:

docs/snippets/yaml/complete_model_experiment.yaml:designs
1
2
3
4
5
6
7
8
9
# Every design runs with the same seeds, so they are compared seed by seed
pairing: common
compare:
  - {baseline: current, variant: second-picker}
  - {baseline: current, variant: fourth-packer}
variants:
  current: {}
  second-picker: {Shop.resources.pickers.current_cap: 2}
  fourth-packer: {Shop.resources.packers.current_cap: 4}
docs/snippets/tutorials/complete_model.py:designs
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# Every design runs with the same seeds, so they are compared seed by seed
"pairing": "common",
"compare": [
    {"baseline": "current", "variant": "second-picker"},
    {"baseline": "current", "variant": "fourth-packer"},
],
"variants": {
    "current": {},
    "second-picker": {"Shop.resources.pickers.current_cap": 2},
    "fourth-packer": {"Shop.resources.packers.current_cap": 4},

The same keys, in the same mapping as the model.

The checks state the decision rule for the recommended design, and that no order waits for a box in any of the three designs:

docs/snippets/yaml/complete_model_experiment.yaml:checks
1
2
3
4
5
6
7
8
checks:
  # The recommended design: the upper end of each wait's interval is under 1 second
  - {measure: tasks.pick_order.wait_mean, variant: fourth-packer, max: 1}
  - {measure: tasks.pack_order.wait_mean, variant: fourth-packer, max: 1}
  # In each of the three designs, no order waits for a shipping box
  - {measure: tasks.ship_order.wait_mean, variant: current, max: 0}
  - {measure: tasks.ship_order.wait_mean, variant: second-picker, max: 0}
  - {measure: tasks.ship_order.wait_mean, variant: fourth-packer, max: 0}
docs/snippets/tutorials/complete_model.py:checks
1
2
3
4
5
6
7
8
"checks": [
    # The recommended design: the upper end of each wait's interval is under 1 s
    {"measure": "tasks.pick_order.wait_mean", "variant": "fourth-packer", "max": 1},
    {"measure": "tasks.pack_order.wait_mean", "variant": "fourth-packer", "max": 1},
    # In each of the three designs, no order waits for a shipping box
    {"measure": "tasks.ship_order.wait_mean", "variant": "current", "max": 0},
    {"measure": "tasks.ship_order.wait_mean", "variant": "second-picker", "max": 0},
    {"measure": "tasks.ship_order.wait_mean", "variant": "fourth-packer", "max": 0},

The same key, in the same mapping as the model.

Run it:

1
desflow experiment complete_model_experiment.yaml

1
python complete_model.py

1
python complete_model_low_level.py

The table gives each design's mean waits over its 40 replications, in seconds, and the packers' utilisation in percent, with the 95% half-width:

Design Picking wait Packing wait Packers busy
current 0.56 ± 0.02 1.92 ± 0.16 87.96 ± 0.52
second-picker 0.04 ± 0.00 2.17 ± 0.17 87.95 ± 0.52
fourth-packer 0.56 ± 0.02 0.15 ± 0.01 65.96 ± 0.39

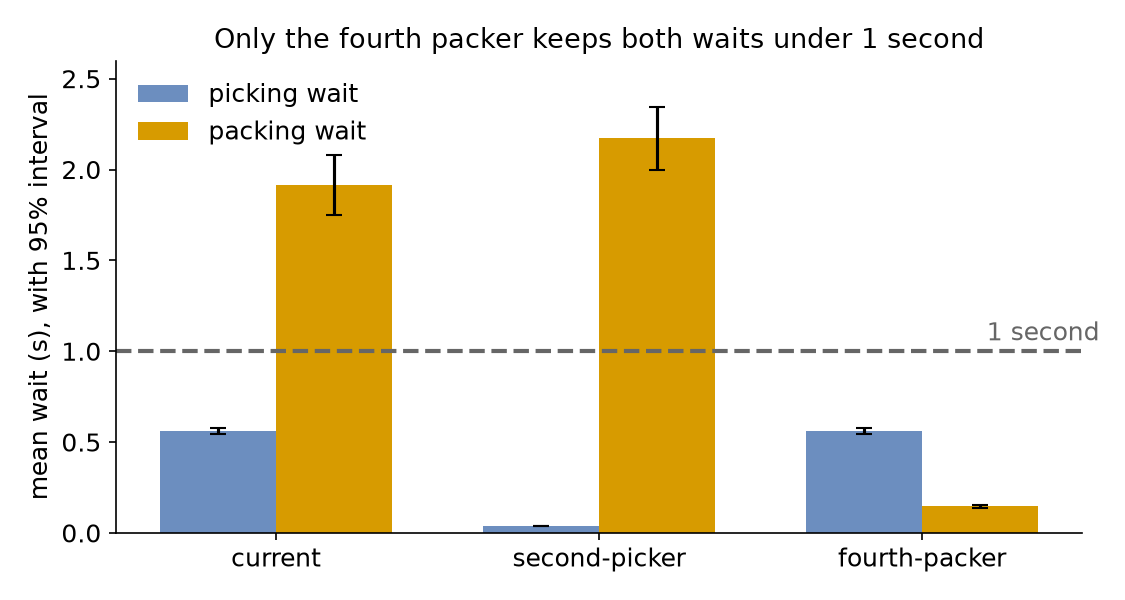

Mean picking and packing waits of the three designs with their 95% half-widths, beside a line at 1 second. Current: picking 0.56, packing 1.92. Second picker: picking 0.04, packing 2.17. Fourth packer: picking 0.56, packing 0.15.

Only the fourth packer keeps both waits under 1 second. Seed by seed, it cuts the packing wait by 1.77 ± 0.16 seconds and leaves the picking wait as it was. A second picker cuts the picking wait by 0.52 ± 0.01 seconds but lengthens the packing wait by 0.26 ± 0.02 seconds. One picker passes orders on one at a time, with at least one picking time between them. Two pickers pass orders on closer together, nearer the times they arrive, so more orders find all three packers busy. explain named the packers as the bottleneck, and the experiment measures how much each design changes the wait there. Every design draws from the same three random streams, arrival.orders, service.packing and service.picking, and the constant deliveries draw from none. Every difference is therefore paired. In none of the three designs did an order wait for a box, so the shelf does not limit the answer.

Test the Sensitivity

The recommendation rests on the fitted arrival rate of 1.50719 orders a second. The rate is fitted from 300 gaps. Its standard error is the standard deviation of the fitted rate over repeated samples. For an exponential fit, the standard error is about the rate ÷ √n for n gaps, so here it is about 1/√300 of the rate, about 6%. A 95% interval for the rate reaches about 1.96 standard errors either side, about 11%, so the data cannot rule out a rate 10% higher. The experiment therefore also runs the fourth packer with orders 10% faster, at 1.65791 orders a second. The new variant is a test of the recommendation, not a design to recommend:

docs/snippets/yaml/complete_model_experiment.yaml:sensitivity
1
2
# The recommended design, with orders 10% faster than the fitted rate of 1.50719
fourth-packer-busier: {Shop.resources.packers.current_cap: 4, Shop.arrival.orders.rate: 1.65791}
docs/snippets/tutorials/complete_model.py:sensitivity
1
2
3
4
5
# The recommended design, with orders 10% faster than the fitted rate of 1.50719
"fourth-packer-busier": {
    "Shop.resources.packers.current_cap": 4,
    "Shop.arrival.orders.rate": 1.65791,
},

The same keys, in the same mapping as the model.

A sixth and a seventh check state that both waits stay under 1 second:

docs/snippets/yaml/complete_model_experiment.yaml:sensitivity-check
1
2
3
# With orders 10% faster, the fourth packer keeps both waits under 1 second
- {measure: tasks.pick_order.wait_mean, variant: fourth-packer-busier, max: 1}
- {measure: tasks.pack_order.wait_mean, variant: fourth-packer-busier, max: 1}
docs/snippets/tutorials/complete_model.py:sensitivity-check
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# With orders 10% faster, the fourth packer keeps both waits under 1 s
{
    "measure": "tasks.pick_order.wait_mean",
    "variant": "fourth-packer-busier",
    "max": 1,
},
{
    "measure": "tasks.pack_order.wait_mean",
    "variant": "fourth-packer-busier",
    "max": 1,
},

The same key, in the same mapping as the model.

With orders 10% faster, the mean picking wait over the 40 replications is 0.78 ± 0.02 seconds, the mean packing wait 0.23 ± 0.01 seconds, and the packers are busy 72.59 ± 0.41% of the time. Both upper ends stay under 1 second, at 0.80 and 0.24 seconds, so the sixth and seventh checks pass. The variant shows something the three designs did not: orders now wait for shipping boxes, 0.22 ± 0.14 seconds on average. In 21 of the 40 replications some orders waited for a box, and the highest mean wait of one run was 1.84 seconds. A delivery of 1,000 boxes every 10 minutes is 1.67 boxes a second, only just above 1.66 orders a second. Orders arrive at random, so in some periods they take boxes faster than the deliveries replace them, and the shelf is empty before the next delivery. A busier hour would need larger or more frequent deliveries as well as the fourth packer.

Build the Report

The experiment states its assumptions, where each input came from, and its limits, and writes them into report.md:

docs/snippets/yaml/complete_model_experiment.yaml:report
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
assumptions:
  - Orders arrive at random, at a steady rate, through the busy hour.
  - One picker and three packers work the whole hour; nobody takes a break.
  - Every order is one parcel in one shipping box.
inputs:
  Shop.arrival.orders: gaps between 300 orders observed in the shop, fitted by desflow fit
  Shop.service.picking: picking times of the same 300 orders, fitted by desflow fit
  Shop.service.packing: packing times of the same 300 orders, fitted by desflow fit
  Shop.arrival.deliveries: the supplier's schedule, a delivery every 10 minutes
limits:
  - One busy hour only; the rest of the day is not modelled.
  - The observed values were made from the model's own runs, so comparing with them shows the method only.
output: results/complete-model
docs/snippets/tutorials/complete_model.py:report
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
"assumptions": [
    "Orders arrive at random, at a steady rate, through the busy hour.",
    "One picker and three packers work the whole hour; nobody takes a break.",
    "Every order is one parcel in one shipping box.",
],
"inputs": {
    "Shop.arrival.orders": "gaps between 300 orders observed in the shop, "
    "fitted by fit_column",
    "Shop.service.picking": "picking times of the same 300 orders, "
    "fitted by fit_column",
    "Shop.service.packing": "packing times of the same 300 orders, "
    "fitted by fit_column",
    "Shop.arrival.deliveries": "the supplier's schedule, a delivery every 10 "
    "minutes",
},
"limits": [
    "One busy hour only; the rest of the day is not modelled.",
    "The observed values were made from the model's own runs, so comparing "
    "with them shows the method only.",
],
"output": "results/complete-model",

The same keys, in the same mapping as the model.

report.md gives the question, the model and its versions, the assumptions, each input with its fitted parameters and provenance, the run settings, the counts, the results, the comparisons, the checks and the observed comparison, then the limits and any input with no provenance. Every input has its provenance, so its Missing Inputs section says "None." The part that answers the question:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
## Comparisons

Each difference is the variant's value minus the baseline's, seed by seed, with the confidence interval of the mean difference.

| Baseline | Variant | Measure | Difference | Half-width | Interval | Random streams |
|---|---|---|---|---|---|---|
| current | second-picker | `tasks.pick_order.wait_mean` | -0.5248 | 0.01449 | -0.5393 to -0.5103 | 3 shared |
| current | second-picker | `tasks.pack_order.wait_mean` | 0.2555 | 0.01564 | 0.2399 to 0.2712 | 3 shared |
| current | second-picker | `resources.packers.utilization_avg` | -0.0009137 | 0.003114 | -0.004028 to 0.002201 | 3 shared |
| current | second-picker | `tasks.ship_order.wait_mean` | 0 | 0 | 0 to 0 | 3 shared |
| current | fourth-packer | `tasks.pick_order.wait_mean` | 0 | 0 | 0 to 0 | 3 shared |
| current | fourth-packer | `tasks.pack_order.wait_mean` | -1.77 | 0.1598 | -1.929 to -1.61 | 3 shared |
| current | fourth-packer | `resources.packers.utilization_avg` | -22 | 0.1309 | -22.13 to -21.87 | 3 shared |
| current | fourth-packer | `tasks.ship_order.wait_mean` | 0 | 0 | 0 to 0 | 3 shared |

## Checks

Checks passed: 7 of 7.

| Design | Measure | Checked | Bound | Value | Result |
|---|---|---|---|---|---|
| fourth-packer | `tasks.pick_order.wait_mean` | the upper end | max 1 | 0.5776 | passed |
| fourth-packer | `tasks.pack_order.wait_mean` | the upper end | max 1 | 0.1523 | passed |
| current | `tasks.ship_order.wait_mean` | the upper end | max 0 | 0 | passed |
| second-picker | `tasks.ship_order.wait_mean` | the upper end | max 0 | 0 | passed |
| fourth-packer | `tasks.ship_order.wait_mean` | the upper end | max 0 | 0 | passed |
| fourth-packer-busier | `tasks.pick_order.wait_mean` | the upper end | max 1 | 0.802 | passed |
| fourth-packer-busier | `tasks.pack_order.wait_mean` | the upper end | max 1 | 0.2386 | passed |

## Observed Comparison

| Design | Measure | Observed | Unit | Simulated interval | Inside |
|---|---|---|---|---|---|
| current | `tasks.pick_order.wait_mean` | 0.57 | s | 0.5471 to 0.5776 | yes |
| current | `tasks.pack_order.wait_mean` | 1.9 | s | 1.751 to 2.08 | yes |
| current | `resources.packers.utilization_avg` | 88 | percent | 87.44 to 88.47 | yes |

The report is built from the files the experiment wrote, so it can be built again without running anything:

1
desflow report results/complete-model

Experiment Results describes each file and section.

Result

Which shop design should be recommended? The fourth packer. With it, the mean picking wait over 40 replications is 0.56 ± 0.02 seconds and the mean packing wait 0.15 ± 0.01 seconds. Both upper ends are under 1 second, and every check passes. In today's shop the mean packing wait is 1.92 ± 0.16 seconds, and a second picker would lengthen it by 0.26 seconds. The model agrees with the formulas where they apply, and each observed value lies inside the model's interval for its mean. Any warm-up from none to 10 minutes changes the mean waits by less than their half-widths. With orders 10% faster, the fourth packer still keeps both waits under 1 second, but orders then sometimes wait for shipping boxes. The data on this page are illustrative, and a real study reaches its recommendation from the shop's own records.

Why It Works

Each step answers a different doubt about the result. The fits test the inputs, the formulas test the program, and the observed values test the model. The warm-up removes the empty start, the replications measure the effect of chance, and the paired seeds measure the size of each difference. A Simulation Study sets out the steps, Checking and Validating the checks, and Output Analysis the warm-up, the replications and the paired comparison. The report records every step in one file, so another reader can repeat the study and see what it rests on.

Full Files

Full files
docs/snippets/yaml/complete_model.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
# The Complete Model tutorial: the shop's busy hour, from order to shipment, with its
# inputs fitted to the observed orders.
# Fit the inputs, then run it:
#   desflow fit complete_model_observed.csv --column gap_seconds --lower 0 --out fitted/complete_orders.yaml
#   desflow fit complete_model_observed.csv --column picking_seconds --lower 0 --out fitted/complete_picking.yaml
#   desflow fit complete_model_observed.csv --column packing_seconds --lower 0 --out fitted/complete_packing.yaml
#   desflow run complete_model.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42
  # Records and statistics start after the first 2 minutes; 0 keeps everything
  warmup: ${WARMUP:-2 min}

resources:
  # One picker and three packers, as the shop has today
  pickers: {current_cap: 1, max_cap: 4}
  packers: {current_cap: 3, max_cap: 10}

containers:
  # Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
  stock: {current_cap: 2000, max_cap: 2000, level: 1000}

arrivals:
  # The fitted gaps between orders; each order starts with picking
  orders: !include {file: fitted/complete_orders.yaml, spawn: pick_order}
  # A delivery of 1,000 boxes every 10 minutes
  deliveries: {dist: constant, value: 10 min, spawn: restock}

services:
  # The fitted picking and packing times
  picking: !include fitted/complete_picking.yaml
  packing: !include fitted/complete_packing.yaml

tasks:
  pick_order:
    service: picking
    resource: pickers
    payload: {event_type: order_picked}
    next: pack_order
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}
    next: ship_order
  ship_order:
    # Each parcel leaves in a box from the shelf; waits while the shelf is empty
    get: {container: stock, amount: 1}
    payload: {event_type: order_shipped}
  restock:
    put: {container: stock, amount: 1000}
    payload: {event_type: stock_delivered}

# Waits, utilisation and the stock's level, published at the end
stats: {level: typical, interval: 1 h}

run:
  until: 1 h
docs/snippets/yaml/complete_model_experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
# The Complete Model tutorial: which shop design should be recommended?
# Run it with: desflow experiment complete_model_experiment.yaml
# Rebuild the report from its files with: desflow report results/complete-model
experiment: complete-model
question: Which design keeps both mean waits of the busy hour under 1 second?
# The busy hour, with its 2-minute warm-up; 40 runs of each design
model: complete_model.yaml
until: 1 h
replications: 40
seed: 42
measures:
  - tasks.pick_order.wait_mean
  - tasks.pack_order.wait_mean
  - resources.packers.utilization_avg
  - tasks.ship_order.wait_mean
# Values made from the model's own runs to show the method, not shop records;
# the real shop runs the current design
observed: {file: complete_model_outputs.csv, variant: current}
# Every design runs with the same seeds, so they are compared seed by seed
pairing: common
compare:
  - {baseline: current, variant: second-picker}
  - {baseline: current, variant: fourth-packer}
variants:
  current: {}
  second-picker: {Shop.resources.pickers.current_cap: 2}
  fourth-packer: {Shop.resources.packers.current_cap: 4}
  # The recommended design, with orders 10% faster than the fitted rate of 1.50719
  fourth-packer-busier: {Shop.resources.packers.current_cap: 4, Shop.arrival.orders.rate: 1.65791}
checks:
  # The recommended design: the upper end of each wait's interval is under 1 second
  - {measure: tasks.pick_order.wait_mean, variant: fourth-packer, max: 1}
  - {measure: tasks.pack_order.wait_mean, variant: fourth-packer, max: 1}
  # In each of the three designs, no order waits for a shipping box
  - {measure: tasks.ship_order.wait_mean, variant: current, max: 0}
  - {measure: tasks.ship_order.wait_mean, variant: second-picker, max: 0}
  - {measure: tasks.ship_order.wait_mean, variant: fourth-packer, max: 0}
  # With orders 10% faster, the fourth packer keeps both waits under 1 second
  - {measure: tasks.pick_order.wait_mean, variant: fourth-packer-busier, max: 1}
  - {measure: tasks.pack_order.wait_mean, variant: fourth-packer-busier, max: 1}
assumptions:
  - Orders arrive at random, at a steady rate, through the busy hour.
  - One picker and three packers work the whole hour; nobody takes a break.
  - Every order is one parcel in one shipping box.
inputs:
  Shop.arrival.orders: gaps between 300 orders observed in the shop, fitted by desflow fit
  Shop.service.picking: picking times of the same 300 orders, fitted by desflow fit
  Shop.service.packing: packing times of the same 300 orders, fitted by desflow fit
  Shop.arrival.deliveries: the supplier's schedule, a delivery every 10 minutes
limits:
  - One busy hour only; the rest of the day is not modelled.
  - The observed values were made from the model's own runs, so comparing with them shows the method only.
output: results/complete-model
docs/snippets/yaml/complete_model_outputs.csv
1
2
3
4
measure,value,unit,population,horizon
tasks.pick_order.wait_mean,0.57,s,started instances,58 min
tasks.pack_order.wait_mean,1.9,s,started instances,58 min
resources.packers.utilization_avg,88.0,percent,time average,58 min
docs/snippets/tutorials/complete_model.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
"""The Complete Model tutorial, builder: which shop design should be recommended?

Fits the gaps between orders and the picking and packing times of 300 observed
orders, builds the shop's busy hour from the fits, compares three warm-ups, and runs
the experiment that compares the designs, checks them and writes the report. Explain
and verify the model with:
desflow explain complete_model.py --verify --until "1 h" --replications 10
"""

import csv
import logging
from pathlib import Path

from desflow import SimulationContext, fit_column, replicate, run_experiment

# Replications and the experiment log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

HERE = Path(__file__).resolve().parent
OBSERVED = HERE / "complete_model_observed.csv"


def fitted() -> dict:
    """Each input fitted to its column of the observed orders."""
    with OBSERVED.open(newline="", encoding="utf-8") as handle:
        rows = list(csv.DictReader(handle))
    columns = {
        "orders": "gap_seconds",
        "picking": "picking_seconds",
        "packing": "packing_seconds",
    }
    # Every column is in seconds, and no time can be below 0
    return {
        name: fit_column([float(row[column]) for row in rows], unit="s", lower=0)
        for name, column in columns.items()
    }


# The best fit of each input: dist and its parameters
FITS = {name: result.settings() for name, result in fitted().items()}


def shop() -> SimulationContext:
    """A new busy hour, built from the fits."""
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42, warmup="2 min")
        # One picker and three packers, as the shop has today
        .add_resource("pickers", current_cap=1, max_cap=4)
        .add_resource("packers", current_cap=3, max_cap=10)
        # Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
        .add_container("stock", current_cap=2000, max_cap=2000, level=1000)
        # The fitted gaps between orders; each order starts with picking
        .add_arrival("orders", **FITS["orders"], spawn="pick_order")
        # A delivery of 1,000 boxes every 10 minutes
        .add_arrival("deliveries", dist="constant", value=600, spawn="restock")
        # The fitted picking and packing times
        .add_service("picking", **FITS["picking"])
        .add_service("packing", **FITS["packing"])
        # Waits, utilisation and the stock's level, published at the end
        .with_stats("typical", interval=3600)
    )

    @app.task(service_id="picking", resource_id="pickers", next="pack_order")
    def pick_order(task_id: int):
        return {"event_type": "order_picked"}

    @app.task(service_id="packing", resource_id="packers", next="ship_order")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    # Each parcel leaves in a box from the shelf; waits while the shelf is empty
    @app.task(get={"container": "stock", "amount": 1})
    def ship_order(task_id: int):
        return {"event_type": "order_shipped"}

    @app.task(put={"container": "stock", "amount": 1000})
    def restock(task_id: int):
        return {"event_type": "stock_delivered"}

    return app


# The one context desflow explain complete_model.py reads
app = shop()

WAITS = ["tasks.pick_order.wait_mean", "tasks.pack_order.wait_mean"]
DESIGNS = ["current", "second-picker", "fourth-packer"]


def warmups() -> dict:
    """The mean waits of 40 replications of today's shop, after three candidate warm-ups."""
    return {
        warmup: replicate(shop, 40, seed=42, until="1 h", warmup=warmup, measures=WAITS)
        for warmup in (0, "2 min", "10 min")
    }


EXPERIMENT = {
    "experiment": "complete-model",
    "question": "Which design keeps both mean waits of the busy hour under 1 second?",
    # The busy hour, with its 2-minute warm-up; 40 replications of each design
    "model": shop,
    "until": "1 h",
    "replications": 40,
    "seed": 42,
    "measures": [
        "tasks.pick_order.wait_mean",
        "tasks.pack_order.wait_mean",
        "resources.packers.utilization_avg",
        "tasks.ship_order.wait_mean",
    ],
    # Values made from the model's own runs to show the method, not shop records;
    # the real shop runs the current design
    "observed": {
        "file": str(HERE / "complete_model_outputs.csv"),
        "variant": "current",
    },
    # Every design runs with the same seeds, so they are compared seed by seed
    "pairing": "common",
    "compare": [
        {"baseline": "current", "variant": "second-picker"},
        {"baseline": "current", "variant": "fourth-packer"},
    ],
    "variants": {
        "current": {},
        "second-picker": {"Shop.resources.pickers.current_cap": 2},
        "fourth-packer": {"Shop.resources.packers.current_cap": 4},
        # The recommended design, with orders 10% faster than the fitted rate of 1.50719
        "fourth-packer-busier": {
            "Shop.resources.packers.current_cap": 4,
            "Shop.arrival.orders.rate": 1.65791,
        },
    },
    "checks": [
        # The recommended design: the upper end of each wait's interval is under 1 s
        {"measure": "tasks.pick_order.wait_mean", "variant": "fourth-packer", "max": 1},
        {"measure": "tasks.pack_order.wait_mean", "variant": "fourth-packer", "max": 1},
        # In each of the three designs, no order waits for a shipping box
        {"measure": "tasks.ship_order.wait_mean", "variant": "current", "max": 0},
        {"measure": "tasks.ship_order.wait_mean", "variant": "second-picker", "max": 0},
        {"measure": "tasks.ship_order.wait_mean", "variant": "fourth-packer", "max": 0},
        # With orders 10% faster, the fourth packer keeps both waits under 1 s
        {
            "measure": "tasks.pick_order.wait_mean",
            "variant": "fourth-packer-busier",
            "max": 1,
        },
        {
            "measure": "tasks.pack_order.wait_mean",
            "variant": "fourth-packer-busier",
            "max": 1,
        },
    ],
    "assumptions": [
        "Orders arrive at random, at a steady rate, through the busy hour.",
        "One picker and three packers work the whole hour; nobody takes a break.",
        "Every order is one parcel in one shipping box.",
    ],
    "inputs": {
        "Shop.arrival.orders": "gaps between 300 orders observed in the shop, "
        "fitted by fit_column",
        "Shop.service.picking": "picking times of the same 300 orders, "
        "fitted by fit_column",
        "Shop.service.packing": "packing times of the same 300 orders, "
        "fitted by fit_column",
        "Shop.arrival.deliveries": "the supplier's schedule, a delivery every 10 "
        "minutes",
    },
    "limits": [
        "One busy hour only; the rest of the day is not modelled.",
        "The observed values were made from the model's own runs, so comparing "
        "with them shows the method only.",
    ],
    "output": "results/complete-model",
}


def experiment(output=None):
    """Runs the designs; raises CheckFailed when a check fails, after writing every file."""
    return run_experiment(EXPERIMENT, output=output)


def recommended(result) -> list:
    """The designs whose two mean waits both have an upper end under 1 second; the
    sensitivity variant is not a design."""
    upper: dict = {}
    for row in result.summary:
        if row["design"] in DESIGNS and row["statistic"] in WAITS:
            high = row["mean"] + row["half_width"]
            upper[row["design"]] = max(upper.get(row["design"], 0), high)
    return [design for design, high in upper.items() if high < 1]


if __name__ == "__main__":
    for name, result in fitted().items():
        print(f"{name}:\n{result.text()}\n")
    for warmup, result in warmups().items():
        for row in result.summary:
            print(
                f"warm-up {warmup}: {row['measure']} {row['mean']:.3f} ± {row['half_width']:.3f}"
            )
    print(f"recommended: {recommended(experiment())}")
docs/snippets/tutorials/complete_model_outputs.csv
1
2
3
4
measure,value,unit,population,horizon
tasks.pick_order.wait_mean,0.57,s,started instances,58 min
tasks.pack_order.wait_mean,1.9,s,started instances,58 min
resources.packers.utilization_avg,88.0,percent,time average,58 min
docs/snippets/tutorials/complete_model_low_level.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
"""The Complete Model tutorial, low-level: which shop design should be recommended?

Fits the gaps between orders and the picking and packing times of 300 observed
orders, builds the shop's busy hour from the fits, checks it against the queueing
formulas worked by hand, compares three warm-ups, and runs the experiment that
compares the designs, checks them and writes the report.
"""

import csv
import itertools
import logging
from pathlib import Path

from desflow import (
    CapacityConfig,
    ContainerConfig,
    DistributionConfig,
    DynamicContainer,
    DynamicRealtimeEnvironment,
    DynamicResource,
    LowLevelModel,
    Sampler,
    SimParameter,
    fit_column,
    replicate,
    run_experiment,
)

# Replications and the experiment log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

HERE = Path(__file__).resolve().parent
OBSERVED = HERE / "complete_model_observed.csv"


def fitted() -> dict:
    """Each input fitted to its column of the observed orders."""
    with OBSERVED.open(newline="", encoding="utf-8") as handle:
        rows = list(csv.DictReader(handle))
    columns = {
        "orders": "gap_seconds",
        "picking": "picking_seconds",
        "packing": "packing_seconds",
    }
    # Every column is in seconds, and no time can be below 0
    return {
        name: fit_column([float(row[column]) for row in rows], unit="s", lower=0)
        for name, column in columns.items()
    }


# The best fit of each input: dist and its parameters
FITS = {name: result.settings() for name, result in fitted().items()}

PARAMS = SimParameter(
    sim_id="Shop",
    arrival={
        # The fitted gaps between orders
        "orders": DistributionConfig(**FITS["orders"]),
        # A delivery of 1,000 boxes every 10 minutes
        "deliveries": DistributionConfig(dist="constant", value=600),
    },
    # The fitted picking and packing times
    service={
        "picking": DistributionConfig(**FITS["picking"]),
        "packing": DistributionConfig(**FITS["packing"]),
    },
    # One picker and three packers, as the shop has today
    resources={
        "pickers": CapacityConfig(current_cap=1, max_cap=4),
        "packers": CapacityConfig(current_cap=3, max_cap=10),
    },
    # Shipping boxes: 1,000 on the shelf at the start, and room for 2,000
    containers={"stock": ContainerConfig(current_cap=2000, max_cap=2000, level=1000)},
)

# Records and statistics start after the first 2 minutes
WARMUP = 120.0

# Each task's service, resource and the task after it; None where it has none
TASKS = {
    "pick_order": ("picking", "pickers", "pack_order"),
    "pack_order": ("packing", "packers", "ship_order"),
    "ship_order": (None, None, None),
}
EVENTS = {
    "pick_order": "order_picked",
    "pack_order": "order_packed",
    "ship_order": "order_shipped",
}


def task(env, sampler, shop, name, key, task_id, counters):
    """Runs one task of an order, then starts the task after it."""
    service, resource, following = TASKS[name]
    status = {"path_id": f"Shop.service.{service}"} if service else {}

    def publish(value):
        env.publish_event(key, value, task=name, instance=task_id)

    if name == "pick_order":
        env.stats.flow_started("orders")  # the order enters the shop
    publish({**status, "status": "queued"})
    env.stats.task_queued(name, task_id)
    if resource is not None:
        with shop[resource].request() as request:
            yield request
            publish({**status, "status": "started"})
            env.stats.task_started(name, task_id)
            yield env.timeout(
                sampler.sample(env.registry.get_config(status["path_id"]))
            )
            publish({"event_type": EVENTS[name]})
            env.stats.task_finished(name, task_id)
    else:
        # Each parcel leaves in a box from the shelf; waits while the shelf is empty
        yield shop["stock"].get(1)
        publish({"status": "started"})
        env.stats.task_started(name, task_id)
        publish({"event_type": EVENTS[name]})
        env.stats.task_finished(name, task_id)
    if following is None:
        env.stats.flow_finished("orders")  # the order leaves the shop
        return
    instance = next(counters[following])
    env.process(task(env, sampler, shop, following, key, instance, counters))


def restock(env, shop, key, task_id):
    """One delivery: 1,000 boxes onto the shelf, waiting while there is no room."""
    env.stats.flow_started("deliveries")
    yield shop["stock"].put(1000)
    env.publish_event(
        key, {"event_type": "stock_delivered"}, task="restock", instance=task_id
    )
    env.stats.task_finished("restock", task_id)
    env.stats.flow_finished("deliveries")


def order_generator(env, sampler, shop, counters):
    """Starts picking for every order, keyed orders-1, orders-2 and so on."""
    gap = env.registry.get_config("Shop.arrival.orders")
    for number in itertools.count(1):
        yield env.timeout(sampler.sample(gap))
        instance = next(counters["pick_order"])
        env.process(
            task(
                env, sampler, shop, "pick_order", f"orders-{number}", instance, counters
            )
        )


def delivery_generator(env, sampler, shop):
    gap = env.registry.get_config("Shop.arrival.deliveries")
    for number in itertools.count(1):
        yield env.timeout(sampler.sample(gap))
        env.process(restock(env, shop, f"deliveries-{number}", number - 1))


def model(env, sampler):
    """The busy hour in a given environment: the runner sets the statistics."""
    env.registry.register_sim_parameter(PARAMS)
    shop = {
        "pickers": DynamicResource(env, "Shop", "pickers"),
        "packers": DynamicResource(env, "Shop", "packers"),
        "stock": DynamicContainer(env, "Shop", "stock"),
    }
    # One counter per task, shared by the arrivals and the next task
    counters = {name: itertools.count() for name in TASKS}
    env.process(order_generator(env, sampler, shop, counters))
    env.process(delivery_generator(env, sampler, shop))


def run(egress=(), until=3600):
    """One busy hour from the seed 42, its records sent to `egress`."""
    env = DynamicRealtimeEnvironment(factor=0.0)
    # Waits, utilisation and the stock's level, published at the end
    env.setup_stats("Shop", "typical", interval=3600)
    env.setup_egress(list(egress), warmup=WARMUP)
    model(env, Sampler(seed=42))
    try:
        env.run(until=until)
    finally:
        env.teardown()
    return env


SHOP = LowLevelModel(model, sim_id="Shop")
WAITS = ["tasks.pick_order.wait_mean", "tasks.pack_order.wait_mean"]
DESIGNS = ["current", "second-picker", "fourth-packer"]


def warmups() -> dict:
    """The mean waits of 40 replications of today's shop, after three candidate warm-ups."""
    return {
        warmup: replicate(SHOP, 40, seed=42, until=3600, warmup=warmup, measures=WAITS)
        for warmup in (0, WARMUP, 600)
    }


EXPERIMENT = {
    "experiment": "complete-model",
    "question": "Which design keeps both mean waits of the busy hour under 1 second?",
    # The busy hour as a LowLevelModel, and its 2-minute warm-up
    "model": SHOP,
    "warmup": WARMUP,
    "until": 3600,
    "replications": 40,
    "seed": 42,
    "measures": [
        "tasks.pick_order.wait_mean",
        "tasks.pack_order.wait_mean",
        "resources.packers.utilization_avg",
        "tasks.ship_order.wait_mean",
    ],
    # Values made from the model's own runs to show the method, not shop records;
    # the real shop runs the current design
    "observed": {
        "file": str(HERE / "complete_model_outputs.csv"),
        "variant": "current",
    },
    "pairing": "common",
    "compare": [
        {"baseline": "current", "variant": "second-picker"},
        {"baseline": "current", "variant": "fourth-packer"},
    ],
    "variants": {
        "current": {},
        "second-picker": {"Shop.resources.pickers.current_cap": 2},
        "fourth-packer": {"Shop.resources.packers.current_cap": 4},
        "fourth-packer-busier": {
            "Shop.resources.packers.current_cap": 4,
            "Shop.arrival.orders.rate": 1.65791,
        },
    },
    "checks": [
        {"measure": "tasks.pick_order.wait_mean", "variant": "fourth-packer", "max": 1},
        {"measure": "tasks.pack_order.wait_mean", "variant": "fourth-packer", "max": 1},
        {"measure": "tasks.ship_order.wait_mean", "variant": "current", "max": 0},
        {"measure": "tasks.ship_order.wait_mean", "variant": "second-picker", "max": 0},
        {"measure": "tasks.ship_order.wait_mean", "variant": "fourth-packer", "max": 0},
        {
            "measure": "tasks.pick_order.wait_mean",
            "variant": "fourth-packer-busier",
            "max": 1,
        },
        {
            "measure": "tasks.pack_order.wait_mean",
            "variant": "fourth-packer-busier",
            "max": 1,
        },
    ],
    "assumptions": [
        "Orders arrive at random, at a steady rate, through the busy hour.",
        "One picker and three packers work the whole hour; nobody takes a break.",
        "Every order is one parcel in one shipping box.",
    ],
    "inputs": {
        "Shop.arrival.orders": "gaps between 300 orders observed in the shop, "
        "fitted by fit_column",
        "Shop.service.picking": "picking times of the same 300 orders, "
        "fitted by fit_column",
        "Shop.service.packing": "packing times of the same 300 orders, "
        "fitted by fit_column",
        "Shop.arrival.deliveries": "the supplier's schedule, a delivery every 10 "
        "minutes",
    },
    "limits": [
        "One busy hour only; the rest of the day is not modelled.",
        "The observed values were made from the model's own runs, so comparing "
        "with them shows the method only.",
    ],
    "output": "results/complete-model",
}


def experiment(output=None):
    """Runs the designs; raises CheckFailed when a check fails, after writing every file."""
    return run_experiment(EXPERIMENT, output=output)


def recommended(result) -> list:
    """The designs whose two mean waits both have an upper end under 1 second; the
    sensitivity variant is not a design."""
    upper: dict = {}
    for row in result.summary:
        if row["design"] in DESIGNS and row["statistic"] in WAITS:
            high = row["mean"] + row["half_width"]
            upper[row["design"]] = max(upper.get(row["design"], 0), high)
    return [design for design, high in upper.items() if high < 1]


if __name__ == "__main__":
    for warmup, result in warmups().items():
        for row in result.summary:
            print(
                f"warm-up {warmup} s: {row['measure']} {row['mean']:.3f} ± {row['half_width']:.3f}"
            )
    print(f"recommended: {recommended(experiment())}")
docs/snippets/tutorials/complete_model_outputs.csv
1
2
3
4
measure,value,unit,population,horizon
tasks.pick_order.wait_mean,0.57,s,started instances,58 min
tasks.pack_order.wait_mean,1.9,s,started instances,58 min
resources.packers.utilization_avg,88.0,percent,time average,58 min
