Checking a Model

Comparing Designs chose a fourth packer from the busy hour model of Trusting Results, and Parameter Sweeps found the choice holds for rates from 1.6 to 1.9 orders a second. Both answers are only as good as the model. This page asks: does the program do what the model on paper says, and is that model good enough to decide the number of packers?

  • Decision: three packers or four.
  • Measures: the mean wait and the packers' utilisation.
  • Runs: one run of 10 seconds with fixed inputs, then the busy hour after its 2-minute warm-up, 20 replications of each design with seeds spawned from 42, and 10 replications for desflow explain --verify.
  • Assumptions: those of Trusting Results: orders at random at 1.8 a second, and the 40 packing times measured at the bench.

What You Will Learn

This page shows how to:

  • check a model against a trace worked by hand and against estimates at the extremes;
  • check it against Little's Law and the queueing formulas with desflow explain --verify;
  • compare it with values observed in the real shop, as tests that run again after every change.

What You Add

This page adds checks on the model, written as tests that fail when a check fails:

  • a run with fixed inputs, against a trace worked by hand;
  • runs at the extremes, against estimates made by hand;
  • Little's law and the queueing formulas of desflow explain --verify;
  • a comparison with values observed in the real shop;
  • a check that the decision still holds at a higher rate.

Checking and Validating explains each kind of check, and this page applies them to the shop.

Trace Fixed Inputs

Replace every random input with a constant, and the run has one answer that can be worked out by hand. Here the shop has three packers, an order arrives every second, each order takes 4 seconds to pack, and the run lasts 10 seconds. Save the files from Full Files in one folder and run the commands there:

docs/snippets/yaml/checking_a_model.yaml:fixed
1
2
3
4
5
6
7
8
9
# Three packers; an order arrives every second and takes 4 seconds to pack
resources:
  packers: {current_cap: 3, max_cap: 10}

arrivals:
  orders: {dist: constant, value: 1, spawn: pack_order}

services:
  packing: {dist: constant, value: 4}

desflow run checking_a_model.yaml prints the 20 records of the run, which are its trace, then the statistics at 10 seconds.

docs/snippets/tutorials/checking_a_model.py:fixed
1
2
3
4
5
6
7
8
9
def fixed_shop() -> SimulationContext:
    """Three packers, an order every second and 4 seconds to pack each, for 10 s."""
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42)
        .add_resource("packers", current_cap=3, max_cap=10)
        .add_arrival("orders", dist="constant", value=1)
        .add_service("packing", dist="constant", value=4)
        .with_stats("typical", interval=3600)
    )
docs/snippets/tutorials/checking_a_model_low_level.py:fixed
1
2
3
4
5
6
7
# Three packers; an order arrives every second and takes 4 seconds to pack
FIXED = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="constant", value=1)},
    service={"packing": DistributionConfig(dist="constant", value=4)},
    resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
)

The full file reuses order_generator and pack_order from Trusting Results. In them, SimPy's env.timeout(...) makes each gap, and packers.request() waits for a free packer, as SimPy and desflow describes.

Worked by hand, orders arrive at 1, 2, ... 9 seconds. The first three start at once. Each later order starts when a packer becomes free, 4 seconds after that packer started its last order. The run stops at 10 seconds, before the events at that time:

Order Arrives Starts Waits Finishes
1, 2, 3 1, 2, 3 1, 2, 3 0 5, 6, 7
4 4 5 1 9
5, 6 5, 6 6, 7 1 after 10
7 7 9 2 after 10
8, 9 8, 9 not by 10

By the table, 4 orders finish and 5 are still in the shop. Seven orders started packing, and all 9 that arrived count in flows.orders.started. The waits of the seven add up to 5 seconds, so the mean wait is 5 / 7 = 0.714 seconds, and the longest is 2 seconds. The three packers can work 3 × 10 = 30 seconds in all, and they are busy for 24 of them, 80%. Orders 8 and 9 are still waiting at 10 seconds, after 2 seconds and 1 second, which adds 3 seconds. So the time orders spend in the queue adds up to 5 + 3 = 8 seconds. Over 10 seconds that gives an average queue of 8 ÷ 10 = 0.8 orders. The run reports the same six numbers. A difference here means a mistake in the program or in the trace worked by hand, and the mistake must be found before any experiment.

Push to the Extremes

A fixed trace checks the logic, not the busy hour itself. Run the busy hour with settings whose results can be estimated without the model. The checks run as an experiment on the busy hour, 20 replications of each design:

docs/snippets/yaml/checking_a_model_experiment.yaml:model
1
2
3
4
5
6
7
8
9
# The busy hour of Trusting Results, with its 2-minute warm-up
model: trusting_results.yaml
until: 1 h
replications: 20
seed: 42
measures:
  - tasks.pack_order.wait_mean
  - resources.packers.utilization_avg
  - resources.packers.queue_length_avg
docs/snippets/tutorials/checking_a_model.py:model
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
# The busy hour of Trusting Results, with its 2-minute warm-up
"model": shop,
"until": "1 h",
"replications": 20,
"seed": 42,
"measures": [
    "tasks.pack_order.wait_mean",
    "resources.packers.utilization_avg",
    "resources.packers.queue_length_avg",
],
docs/snippets/tutorials/checking_a_model_low_level.py:model
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
# The function that builds the busy hour, and its 2-minute warm-up
"model": LowLevelModel(model, sim_id="Shop"),
"warmup": WARMUP,
"until": 3600,
"replications": 20,
"seed": 42,
"measures": [
    "tasks.pack_order.wait_mean",
    "resources.packers.utilization_avg",
    "resources.packers.queue_length_avg",
],

The summary also has the task's counts, such as tasks.pack_order.finished, although measures does not name them. The designs are variants of the number of packers:

docs/snippets/yaml/checking_a_model_experiment.yaml:extremes
1
2
3
4
# One packer cannot keep up, and ten are mostly idle
three: {}
one: {Shop.resources.packers.current_cap: 1}
ten: {Shop.resources.packers.current_cap: 10}
docs/snippets/tutorials/checking_a_model.py:extremes
1
2
3
4
5
# One packer cannot keep up, and ten are mostly idle
"variants": {
    "three": {},
    "one": {"Shop.resources.packers.current_cap": 1},
    "ten": {"Shop.resources.packers.current_cap": 10},

The same keys, in the same mapping as the model.

One packer takes 1.5 seconds an order on average, so it can finish at most 3,480 ÷ 1.5 = 2,320 orders in the 3,480 seconds after the warm-up. Over the experiment's 20 replications, the one-packer design finishes 2,318 orders on average, with the packer busy 100% of the time and a mean wait of about 1,179 seconds. Ten packers would be busy 1.8 orders a second × 1.5 seconds ÷ 10 packers = 27% of the time. The experiment measures 27.08% on average, and the mean wait rounds to 0.00 seconds.

Turn each extreme into a check, so a later change that breaks it fails. A check tests the far end of the interval, so it passes only when the whole interval is within the bound:

docs/snippets/yaml/checking_a_model_experiment.yaml:extreme-checks
1
2
3
4
5
checks:
  # One packer is busy all the time: the lower end of the interval is 99.9% or more
  - {measure: resources.packers.utilization_avg, variant: one, min: 99.9}
  # With ten packers almost no order waits
  - {measure: tasks.pack_order.wait_mean, variant: ten, max: 0.01}
docs/snippets/tutorials/checking_a_model.py:extreme-checks
1
2
3
4
5
6
7
8
9
"checks": [
    # One packer is busy all the time: the lower end of the interval is 99.9% or more
    {
        "measure": "resources.packers.utilization_avg",
        "variant": "one",
        "min": 99.9,
    },
    # With ten packers almost no order waits
    {"measure": "tasks.pack_order.wait_mean", "variant": "ten", "max": 0.01},

The same keys, in the same mapping as the model.

Check It Against Theory

Two checks compare the run with queueing theory: Little's law, which holds for any model that settles, and the formulas desflow explain applies where their assumptions hold.

Little's Law

Little's law says the average queue equals the arrival rate times the mean wait. The experiment measures the three separately, so they test each other. The arrival rate is the number of orders that arrived after the warm-up, flows.orders.started, divided by the 3,480 seconds that follow the warm-up:

Read the means of flows.orders.started, resources.packers.queue_length_avg and tasks.pack_order.wait_mean from summary.csv or the report, and multiply by hand.

docs/snippets/tutorials/checking_a_model.py:little
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
HORIZON = 3600 - 120  # the measured part of the hour, after the warm-up, in seconds


def littles_law(result, design):
    """The mean queue, and the arrival rate and mean wait whose product it should be."""
    means = {r["statistic"]: r["mean"] for r in result.summary if r["design"] == design}
    rate = means["flows.orders.started"] / HORIZON
    return (
        means["resources.packers.queue_length_avg"],
        rate,
        means["tasks.pack_order.wait_mean"],
    )

The same function, with HORIZON = 3600 - WARMUP.

Over the 20 replications with three packers, the queue averages 4.488 orders, and 1.8065 orders a second × 2.479 seconds = 4.478 orders. The two agree. With one packer they also roughly agree: a queue of 2,127.6 orders against 1.8065 × 1,179.0 = 2,129.9. One packer's queue grows through the whole run and never settles, so its mean depends on how long the run lasts. The agreement there therefore proves less than it does for three packers. Agreement with the law shows the statistics are consistent with each other. It does not show the model is right for the shop: a model with the wrong packing times would agree just as well.

Queueing Formulas With explain

desflow explain --verify puts the queueing formulas beside runs of the model. It works out what the formulas give for each resource, runs the model unpaced, and marks each pair as agreeing or differing. Here it runs the busy hour of Trusting Results ten times:

1
desflow explain trusting_results.yaml --verify --replications 10

context.analyze(verify=True, replications=10) returns the same comparison for a context loaded from a blueprint, or from a builder file with load_context. A context built in a script's own code cannot be built again for the runs, so it refuses verify=True. Use desflow explain --verify on the file instead.

desflow explain does not support low-level models. It reads which arrival starts which task and which resource each task uses, and a low-level model does not declare those links: its SimPy code makes them as it runs.

The end of its output:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
Not estimated:
  wait at packers: no closed formula for c > 1 with non-exponential times
Hints for utilisation 0.85:
  packers with 4 units: utilisation 0.675, at most 0.85
  packers with 3 units: utilisation 0.85 at 1.7 requests a second
Verify: 10 runs to 3600 s, seed 42
+---------------------------------------------------------------------------+
| node       | measure      | analysis | measured |        ± | result       |
|------------+--------------+----------+----------+----------+--------------|
| packers    | utilization  |      0.9 |   0.9034 | 0.009148 | agrees       |
| packers    | queue_length |        - |    4.066 |    0.469 | not compared |
| pack_order | wait         |        - |    2.252 |   0.2476 | not compared |
| orders     | throughput   |      1.8 |    1.807 |  0.01546 | agrees       |
+---------------------------------------------------------------------------+
Not compared:
  packers queue_length: no closed formula for c > 1 with non-exponential times
  pack_order wait: no closed formula for c > 1 with non-exponential times
--verify checks the implementation against the queueing analysis where it applies; it does not show that the model is close enough to the real system

The utilisation of 0.9 and the throughput of 1.8 orders a second agree with the replications. explain and --verify give the utilisation as a fraction, so 0.9034 is 90.34%, while the experiment's statistics give a percentage.

The measured wait, 2.252 ± 0.2476 seconds, is the mean of the 10 replications after the blueprint's 2-minute warm-up. The replications use the seeds of Trusting Results, so the figure equals that page's figure for 10 replications, as Busy Hour Figures lists. The wait and the queue length have no analytical value, and the Not estimated line says why: three packers with measured packing times have no closed formula. For them the interval of the experiment is the check, as the next section shows.

Agreement shows that the program computes what the model on paper says. It says nothing about whether the model is close enough to the real shop. Check Against Theory runs the same check on a shop the formulas describe in full.

Compare With the Real Shop

Only data from the real shop can show that the model is adequate. The observed values below are illustrative, and a real check uses the shop's own records. Suppose the shop recorded a mean wait of 2.6 seconds and a utilisation of 91% over 58 minutes of a busy hour with three packers. checking_a_model_observed.csv, in Full Files, holds them, with the unit, population and horizon of each, as Experiment Results describes. The experiment places each value beside the three-packer interval:

docs/snippets/yaml/checking_a_model_experiment.yaml:observed
1
2
3
# Illustrative values for the real shop, which has three packers;
# a real check reads the shop's own records
observed: {file: checking_a_model_observed.csv, variant: three}
docs/snippets/tutorials/checking_a_model.py:observed
1
2
3
4
5
6
# Illustrative values for the real shop, which has three packers;
# a real check reads the shop's own records
"observed": {
    "file": str(HERE / "checking_a_model_observed.csv"),
    "variant": "three",
},

The same key, in the same mapping as the model.

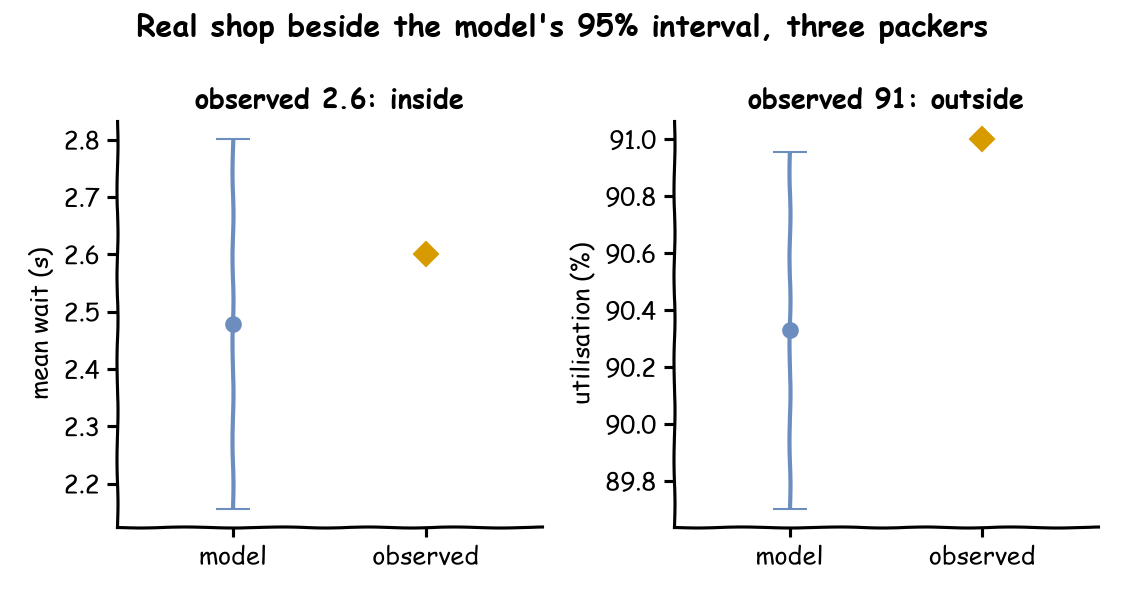

The busy-hour wait with three packers and measured packing times has no exact formula in Queueing Basics, so the experiment's interval is the check. The interval covers only the model's spread from run to run, not the error in the shop's own measurement. One rule applies to both measures: a value outside its interval is a disagreement that the study must explain before it trusts the model for the decision. Each interval is the 95% interval of the model's mean over the 20 replications with three packers:

Measure Observed in the shop Model's interval Result
Mean wait 2.6 seconds 2.16 to 2.80 seconds inside, so it agrees
Utilisation 91% 89.70 to 90.96% outside, a disagreement to explain

The study could, for example, check how the shop measured its utilisation, or whether the packing times are right.

Test the Sensitivity

Parameter Sweeps found that the four-packer wait stays low at every rate. Keep that as a check, so a change to the model that breaks it fails. Add a design with four packers, the chosen number, at 1.9 orders a second, about 6% above the estimate of 1.8:

docs/snippets/yaml/checking_a_model_experiment.yaml:sensitivity
1
2
# The design chosen in Comparing Designs, at a rate 6% above the estimate
four-busier: {Shop.resources.packers.current_cap: 4, Shop.arrival.orders.rate: 1.9}
docs/snippets/tutorials/checking_a_model.py:sensitivity
1
2
3
4
5
# The design chosen in Comparing Designs, at a rate 6% above the estimate
"four-busier": {
    "Shop.resources.packers.current_cap": 4,
    "Shop.arrival.orders.rate": 1.9,
},

The same keys, in the same mapping as the model.

Then bound it:

docs/snippets/yaml/checking_a_model_experiment.yaml:sensitivity-check
1
2
# Four packers keep the mean wait under half a second at the higher rate
- {measure: tasks.pack_order.wait_mean, variant: four-busier, max: 0.5}
docs/snippets/tutorials/checking_a_model.py:sensitivity-check
1
2
3
4
5
6
# Four packers keep the mean wait under half a second at the higher rate
{
    "measure": "tasks.pack_order.wait_mean",
    "variant": "four-busier",
    "max": 0.5,
},

The same keys, in the same mapping as the model.

At 1.9 orders a second, the mean wait with four packers is 0.35 ± 0.02 seconds over 20 replications. The upper end of its interval, 0.37 seconds, is under the bound of 0.5 seconds, so the check passes.

Run the Checks

Run the checks after every change to the model, in the same way as the tests of any program. The Builder and Low-level tabs run pytest, which desflow does not install. Run it with uv run --with desflow --with pytest pytest checking_a_model.py, or install it with uv add --dev pytest in a uv project or pip install pytest:

1
desflow experiment checking_a_model_experiment.yaml

The command writes the results and the report, then exits with status 1 when a check fails, so a CI job that runs it fails too. After a change to the model's logic, also run desflow run checking_a_model.yaml and compare its statistics with the hand-worked figures in Trace Fixed Inputs.

docs/snippets/tutorials/checking_a_model.py:tests
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
def test_fixed_inputs_match_the_hand_trace():
    readings = fixed_run()
    assert readings["tasks.pack_order.finished"] == 4
    assert readings["tasks.pack_order.in_progress"] == 5
    assert readings["tasks.pack_order.wait_mean"] == 5 / 7
    assert readings["tasks.pack_order.wait_max"] == 2


def test_extremes_sensitivity_and_littles_law(tmp_path):
    result = experiment(output=tmp_path)  # a failed check raises CheckFailed
    queue, rate, wait = littles_law(result, "three")
    assert abs(queue - rate * wait) < 0.05 * queue

1
pytest checking_a_model.py

pytest collects the test_ functions of a file named on its command line. run_experiment raises CheckFailed when a check fails, and the exception fails the second test.

The same two tests, in the full file:

1
pytest checking_a_model_low_level.py

What You Get and Why

Each value observed in the real shop beside the three-packer interval of the experiment:

Two panels for three packers. On the left, the model's mean wait of 2.48 seconds over 20 replications with its 95% interval from 2.16 to 2.80 seconds, and the observed 2.6 seconds inside it. On the right, the model's utilisation of 90.33% with its interval from 89.70 to 90.96%, and the observed 91% above it

Does the program do what the model on paper says, and is the model good enough to decide the number of packers? The program does what the model on paper says:

  • The fixed run, 10 seconds with fixed inputs, matches the trace by hand: 4 orders finished, 5 still in the shop and a mean wait of 0.714 seconds.
  • Over the experiment's 20 replications after the 2-minute warm-up, one packer finishes 2,318 orders on average against 2,320 by hand, and ten packers are busy 27.08% of the time against 27%.
  • Over the same replications, Little's law holds for three packers, with a mean queue of 4.488 orders against 4.478, and the measured utilisation agrees with the formula's 0.9.
  • With four packers at a rate 6% higher, the mean wait over 20 replications is 0.35 ± 0.02 seconds, and all three checks pass.

The observed values are illustrative, and a real check uses the shop's own records. Against them the mean wait of 2.6 seconds lies inside the 95% interval of the 20 replications, 2.16 to 2.80, but the utilisation of 91% lies outside 89.70 to 90.96. The model is good enough for the decision only once the study has explained that disagreement.

The trace, the extremes, Little's law and the queueing formulas test the program against the model on paper. Checking and Validating calls these checks verification. The observed values and the sensitivity check test the model against the shop and the decision, and that page calls them validation. Written as tests, the checks run again after every change, so a model that was checked once stays checked.

Key Takeaways

  • Verification checks that the program does what the model on paper says. Validation checks that the model is close enough to the real shop for the decision.
  • A value observed in the shop that lies outside the model's interval must be explained before the model is trusted.
  • Checks written as tests keep a checked model checked after every change.

Full Files

Full files
docs/snippets/yaml/checking_a_model.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# The Checking a Model tutorial: the shop with fixed inputs, to compare with a trace
# worked by hand. Run it with: desflow run checking_a_model.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42

# Three packers; an order arrives every second and takes 4 seconds to pack
resources:
  packers: {current_cap: 3, max_cap: 10}

arrivals:
  orders: {dist: constant, value: 1, spawn: pack_order}

services:
  packing: {dist: constant, value: 4}

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}

# Every record is the trace; the statistics are published once, at the end
stats: {level: typical, interval: 1 h}

egress:
  - type: Console

run:
  until: 10
docs/snippets/yaml/checking_a_model_experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# The Checking a Model tutorial: extremes, sensitivity and the real shop, as checks.
# Run it with: desflow experiment checking_a_model_experiment.yaml
# It exits 1 when a check fails, after writing every file.
experiment: checking-a-model
question: Is the busy hour model adequate for choosing the number of packers?
# The busy hour of Trusting Results, with its 2-minute warm-up
model: trusting_results.yaml
until: 1 h
replications: 20
seed: 42
measures:
  - tasks.pack_order.wait_mean
  - resources.packers.utilization_avg
  - resources.packers.queue_length_avg
variants:
  # One packer cannot keep up, and ten are mostly idle
  three: {}
  one: {Shop.resources.packers.current_cap: 1}
  ten: {Shop.resources.packers.current_cap: 10}
  # The design chosen in Comparing Designs, at a rate 6% above the estimate
  four-busier: {Shop.resources.packers.current_cap: 4, Shop.arrival.orders.rate: 1.9}
checks:
  # One packer is busy all the time: the lower end of the interval is 99.9% or more
  - {measure: resources.packers.utilization_avg, variant: one, min: 99.9}
  # With ten packers almost no order waits
  - {measure: tasks.pack_order.wait_mean, variant: ten, max: 0.01}
  # Four packers keep the mean wait under half a second at the higher rate
  - {measure: tasks.pack_order.wait_mean, variant: four-busier, max: 0.5}
# Illustrative values for the real shop, which has three packers;
# a real check reads the shop's own records
observed: {file: checking_a_model_observed.csv, variant: three}
output: results/checking-a-model
docs/snippets/yaml/trusting_results.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
# The Trusting Results tutorial: the busy hour, measured after a warm-up.
# Run it with: desflow run trusting_results.yaml
# Without the warm-up: WARMUP=0 desflow run trusting_results.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42
  # Records and statistics start after the first 2 minutes; 0 keeps everything
  warmup: ${WARMUP:-2 min}

resources:
  packers: {current_cap: 3, max_cap: 10}

arrivals:
  orders: {dist: exponential, rate: 1.8, spawn: pack_order}

services:
  # The 40 packing times measured at the bench, in seconds
  packing:
    dist: empirical
    values: [1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
             2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
             1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
             2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1]

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}

# Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
stats: {level: typical, interval: 10}

egress:
  - type: Console

run:
  until: 1 h
docs/snippets/yaml/checking_a_model_observed.csv
1
2
3
measure,value,unit,population,horizon
tasks.pack_order.wait_mean,2.6,s,started instances,58 min
resources.packers.utilization_avg,91.0,percent,time average,58 min
docs/snippets/tutorials/checking_a_model.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
"""The Checking a Model tutorial: checks of the busy hour, written as tests, builder.

A run of the shop with fixed inputs is compared with a trace worked by hand. An
experiment then runs the busy hour of Trusting Results with one, three and ten packers
and with four packers at a higher rate, checks each against a bound, and places the
three-packer design beside the values observed in the real shop. Run the checks with:
pytest checking_a_model.py
"""

import logging
from pathlib import Path

from desflow import SimulationContext, run_experiment
from trusting_results import shop

# The imported model logs at INFO; the checks log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

HERE = Path(__file__).resolve().parent


def fixed_shop() -> SimulationContext:
    """Three packers, an order every second and 4 seconds to pack each, for 10 s."""
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42)
        .add_resource("packers", current_cap=3, max_cap=10)
        .add_arrival("orders", dist="constant", value=1)
        .add_service("packing", dist="constant", value=4)
        .with_stats("typical", interval=3600)
    )

    @app.task(service_id="packing", resource_id="packers")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def fixed_run() -> dict:
    """The statistics of the fixed shop after 10 seconds, without the Shop.stats. prefix."""
    app = fixed_shop()
    app.run(until=10)
    readings = app.env.stats.readings()
    return {key.removeprefix("Shop.stats."): value for key, value in readings.items()}


EXPERIMENT = {
    "experiment": "checking-a-model",
    "question": "Is the busy hour model adequate for choosing the number of packers?",
    # The busy hour of Trusting Results, with its 2-minute warm-up
    "model": shop,
    "until": "1 h",
    "replications": 20,
    "seed": 42,
    "measures": [
        "tasks.pack_order.wait_mean",
        "resources.packers.utilization_avg",
        "resources.packers.queue_length_avg",
    ],
    # One packer cannot keep up, and ten are mostly idle
    "variants": {
        "three": {},
        "one": {"Shop.resources.packers.current_cap": 1},
        "ten": {"Shop.resources.packers.current_cap": 10},
        # The design chosen in Comparing Designs, at a rate 6% above the estimate
        "four-busier": {
            "Shop.resources.packers.current_cap": 4,
            "Shop.arrival.orders.rate": 1.9,
        },
    },
    "checks": [
        # One packer is busy all the time: the lower end of the interval is 99.9% or more
        {
            "measure": "resources.packers.utilization_avg",
            "variant": "one",
            "min": 99.9,
        },
        # With ten packers almost no order waits
        {"measure": "tasks.pack_order.wait_mean", "variant": "ten", "max": 0.01},
        # Four packers keep the mean wait under half a second at the higher rate
        {
            "measure": "tasks.pack_order.wait_mean",
            "variant": "four-busier",
            "max": 0.5,
        },
    ],
    # Illustrative values for the real shop, which has three packers;
    # a real check reads the shop's own records
    "observed": {
        "file": str(HERE / "checking_a_model_observed.csv"),
        "variant": "three",
    },
    "output": "results/checking-a-model",
}


def experiment(output=None):
    """Runs the checks; raises CheckFailed when one fails, after writing every file."""
    return run_experiment(EXPERIMENT, output=output)


HORIZON = 3600 - 120  # the measured part of the hour, after the warm-up, in seconds


def littles_law(result, design):
    """The mean queue, and the arrival rate and mean wait whose product it should be."""
    means = {r["statistic"]: r["mean"] for r in result.summary if r["design"] == design}
    rate = means["flows.orders.started"] / HORIZON
    return (
        means["resources.packers.queue_length_avg"],
        rate,
        means["tasks.pack_order.wait_mean"],
    )


def test_fixed_inputs_match_the_hand_trace():
    readings = fixed_run()
    assert readings["tasks.pack_order.finished"] == 4
    assert readings["tasks.pack_order.in_progress"] == 5
    assert readings["tasks.pack_order.wait_mean"] == 5 / 7
    assert readings["tasks.pack_order.wait_max"] == 2


def test_extremes_sensitivity_and_littles_law(tmp_path):
    result = experiment(output=tmp_path)  # a failed check raises CheckFailed
    queue, rate, wait = littles_law(result, "three")
    assert abs(queue - rate * wait) < 0.05 * queue


if __name__ == "__main__":
    print(fixed_run())
    result = experiment()
    for design in ("three", "one"):
        queue, rate, wait = littles_law(result, design)
        print(
            f"{design}: queue {queue:.3f}, {rate:.4f} x {wait:.3f} = {rate * wait:.3f}"
        )
    for row in result.observed:
        print(f"observed {row['measure']}: {row['value']} inside={row['inside']}")
docs/snippets/tutorials/trusting_results.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
"""The Trusting Results tutorial: the busy hour, measured after a warm-up, builder.

Three packers pack orders that arrive at 1.8 a second on average, with the packing
times measured at the bench. Every record is printed to the terminal. At the end the
script prints the mean wait without and with the warm-up, the mean wait of 5 runs
after each of three candidate warm-ups, then the mean and half-width of two outputs
over 5, 10, 20 and 40 replications. To see only those lines, run:
python trusting_results.py 2>/dev/null
"""

import logging

from desflow import ConsoleEgress, SimulationContext, replicate
from desflow.analysis import interval

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

# The 40 packing times measured at the bench, in seconds
MEASURED = [
    1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
    2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
    1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
    2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1,
]  # fmt: skip


def shop(warmup="2 min") -> SimulationContext:
    """The busy hour; records and statistics start after `warmup`."""
    app = (
        # Records and statistics start after the first 2 minutes; None keeps everything
        SimulationContext(sim_id="Shop", factor=0, random_seed=42, warmup=warmup)
        .add_resource("packers", current_cap=3, max_cap=10)
        .add_arrival("orders", dist="exponential", rate=1.8)
        .add_service("packing", dist="empirical", values=MEASURED)
        # Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
        .with_stats("typical", interval=10)
        .add_egress(ConsoleEgress())
    )

    @app.task(service_id="packing", resource_id="packers")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def mean_wait(warmup) -> float:
    """Runs the busy hour and returns the mean wait it measured."""
    app = shop(warmup)
    app.run(until="1 h")
    return app.env.stats.readings()["Shop.stats.tasks.pack_order.wait_mean"]


MEASURES = ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"]


def replications(n=40):
    """Runs the busy hour n times, each after the warm-up, with seeds spawned from 42."""
    return replicate(shop, n, seed=42, until="1 h", measures=MEASURES)


def warmups(n=5) -> dict:
    """The mean wait of n runs after each candidate warm-up, with seeds spawned from 42."""
    wait = ["tasks.pack_order.wait_mean"]
    return {
        warmup: replicate(shop, n, seed=42, until="1 h", warmup=warmup, measures=wait)
        for warmup in ("1 min", "2 min", "4 min")
    }


def precision(result) -> dict:
    """Each output's mean and half-width over the first 5, 10, 20 and 40 replications."""
    return {
        (measure, n): interval(result.values[measure][:n])
        for measure in MEASURES
        for n in (5, 10, 20, 40)
    }


if __name__ == "__main__":
    print(f"without a warm-up: mean wait {mean_wait(None):.3f} s")
    print(f"with a 2 min warm-up: mean wait {mean_wait('2 min'):.3f} s")
    for warmup, result in warmups().items():
        row = result.summary[0]
        print(
            f"warm-up {warmup}: mean wait {row['mean']:.3f} ± {row['half_width']:.2f} s"
        )
    for (measure, n), result in precision(replications()).items():
        share = result.half_width / result.mean
        print(
            f"{measure}, {n} runs: {result.mean:.2f} ± {result.half_width:.2f} ({share:.1%})"
        )
docs/snippets/tutorials/checking_a_model_observed.csv
1
2
3
measure,value,unit,population,horizon
tasks.pack_order.wait_mean,2.6,s,started instances,58 min
resources.packers.utilization_avg,91.0,percent,time average,58 min
docs/snippets/tutorials/checking_a_model_low_level.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
"""The Checking a Model tutorial: checks of the busy hour, written as tests, low-level.

A run of the shop with fixed inputs is compared with a trace worked by hand. An
experiment then runs the busy hour of Trusting Results with one, three and ten packers
and with four packers at a higher rate, checks each against a bound, and places the
three-packer design beside the values observed in the real shop. Run the checks with:
pytest checking_a_model_low_level.py
"""

import logging
from pathlib import Path

from desflow import (
    CapacityConfig,
    DistributionConfig,
    DynamicRealtimeEnvironment,
    DynamicResource,
    LowLevelModel,
    Sampler,
    SimParameter,
    run_experiment,
)
from trusting_results_low_level import WARMUP, model, order_generator

# The imported model logs at INFO; the checks log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

HERE = Path(__file__).resolve().parent

# Three packers; an order arrives every second and takes 4 seconds to pack
FIXED = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="constant", value=1)},
    service={"packing": DistributionConfig(dist="constant", value=4)},
    resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
)


def fixed_run() -> dict:
    """The statistics of the fixed shop after 10 seconds, without the Shop.stats. prefix."""
    env = DynamicRealtimeEnvironment(factor=0.0)
    env.registry.register_sim_parameter(FIXED)
    env.setup_stats("Shop", "typical", interval=3600)
    packers = DynamicResource(env, "Shop", "packers")
    env.process(order_generator(env, Sampler(seed=42), packers))
    try:
        env.run(until=10)
    finally:
        env.teardown()
    readings = env.stats.readings()
    return {key.removeprefix("Shop.stats."): value for key, value in readings.items()}


EXPERIMENT = {
    "experiment": "checking-a-model",
    "question": "Is the busy hour model adequate for choosing the number of packers?",
    # The function that builds the busy hour, and its 2-minute warm-up
    "model": LowLevelModel(model, sim_id="Shop"),
    "warmup": WARMUP,
    "until": 3600,
    "replications": 20,
    "seed": 42,
    "measures": [
        "tasks.pack_order.wait_mean",
        "resources.packers.utilization_avg",
        "resources.packers.queue_length_avg",
    ],
    "variants": {
        "three": {},
        "one": {"Shop.resources.packers.current_cap": 1},
        "ten": {"Shop.resources.packers.current_cap": 10},
        "four-busier": {
            "Shop.resources.packers.current_cap": 4,
            "Shop.arrival.orders.rate": 1.9,
        },
    },
    "checks": [
        {
            "measure": "resources.packers.utilization_avg",
            "variant": "one",
            "min": 99.9,
        },
        {"measure": "tasks.pack_order.wait_mean", "variant": "ten", "max": 0.01},
        {
            "measure": "tasks.pack_order.wait_mean",
            "variant": "four-busier",
            "max": 0.5,
        },
    ],
    # Illustrative values for the real shop, which has three packers;
    # a real check reads the shop's own records
    "observed": {
        "file": str(HERE / "checking_a_model_observed.csv"),
        "variant": "three",
    },
    "output": "results/checking-a-model",
}


def experiment(output=None):
    """Runs the checks; raises CheckFailed when one fails, after writing every file."""
    return run_experiment(EXPERIMENT, output=output)


HORIZON = 3600 - WARMUP  # the measured part of the hour, in seconds


def littles_law(result, design):
    """The mean queue, and the arrival rate and mean wait whose product it should be."""
    means = {r["statistic"]: r["mean"] for r in result.summary if r["design"] == design}
    rate = means["flows.orders.started"] / HORIZON
    return (
        means["resources.packers.queue_length_avg"],
        rate,
        means["tasks.pack_order.wait_mean"],
    )


def test_fixed_inputs_match_the_hand_trace():
    readings = fixed_run()
    assert readings["tasks.pack_order.finished"] == 4
    assert readings["tasks.pack_order.in_progress"] == 5
    assert readings["tasks.pack_order.wait_mean"] == 5 / 7
    assert readings["tasks.pack_order.wait_max"] == 2


def test_extremes_sensitivity_and_littles_law(tmp_path):
    result = experiment(output=tmp_path)  # a failed check raises CheckFailed
    queue, rate, wait = littles_law(result, "three")
    assert abs(queue - rate * wait) < 0.05 * queue


if __name__ == "__main__":
    print(fixed_run())
    result = experiment()
    for design in ("three", "one"):
        queue, rate, wait = littles_law(result, design)
        print(
            f"{design}: queue {queue:.3f}, {rate:.4f} x {wait:.3f} = {rate * wait:.3f}"
        )
    for row in result.observed:
        print(f"observed {row['measure']}: {row['value']} inside={row['inside']}")
docs/snippets/tutorials/trusting_results_low_level.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
"""The Trusting Results tutorial: the busy hour, measured after a warm-up, low-level.

Three packers pack orders that arrive at 1.8 a second on average, with the packing
times measured at the bench. Every record is printed to the terminal. At the end the
script prints the mean wait without and with the warm-up, the mean wait of 5 runs
after each of three candidate warm-ups, then the mean and half-width of two outputs
over 5, 10, 20 and 40 replications. To see only those lines, run:
python trusting_results_low_level.py 2>/dev/null
"""

import logging

from desflow import (
    CapacityConfig,
    ConsoleEgress,
    DistributionConfig,
    DynamicRealtimeEnvironment,
    DynamicResource,
    LowLevelModel,
    Sampler,
    SimParameter,
    replicate,
)
from desflow.analysis import interval

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

# The 40 packing times measured at the bench, in seconds
MEASURED = [
    1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
    2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
    1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
    2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1,
]  # fmt: skip

PARAMS = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="exponential", rate=1.8)},
    service={"packing": DistributionConfig(dist="empirical", values=MEASURED)},
    resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
)


def pack_order(env, sampler, packers, key, task_id):
    """One order, which reports each step to the statistics."""
    path_id = "Shop.service.packing"

    def publish(value):
        env.publish_event(key, value, task="pack_order", instance=task_id)

    publish({"path_id": path_id, "status": "queued"})
    env.stats.flow_started("orders")  # the order enters the shop
    env.stats.task_queued("pack_order", task_id)
    with packers.request() as request:
        yield request
        publish({"path_id": path_id, "status": "started"})
        env.stats.task_started("pack_order", task_id)
        yield env.timeout(sampler.sample(env.registry.get_config(path_id)))
        publish({"event_type": "order_packed"})
    env.stats.task_finished("pack_order", task_id)
    env.stats.flow_finished("orders")  # the order leaves the shop


def order_generator(env, sampler, packers):
    arrival = env.registry.get_config("Shop.arrival.orders")
    task_id = 0
    while True:
        yield env.timeout(sampler.sample(arrival))
        env.process(pack_order(env, sampler, packers, f"orders-{task_id + 1}", task_id))
        task_id += 1


# Records and statistics start after the first 2 minutes; None keeps everything
WARMUP = 120.0  # seconds, passed to setup_egress in run below


def run(warmup=WARMUP, until=3600, factor=0.0):
    env = DynamicRealtimeEnvironment(factor=factor)
    env.registry.register_sim_parameter(PARAMS)
    # Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
    env.setup_stats("Shop", "typical", interval=10)
    # The warm-up is set with the sinks: no sink receives a record stamped before it
    # ends, and the statistics start again from zero when it ends
    env.setup_egress([ConsoleEgress()], warmup=warmup)
    packers = DynamicResource(env, "Shop", "packers")
    env.process(order_generator(env, Sampler(seed=42), packers))
    try:
        env.run(until=until)
    finally:
        env.teardown()
    return env


def mean_wait(warmup) -> float:
    """Runs the busy hour and returns the mean wait it measured."""
    return run(warmup).stats.readings()["Shop.stats.tasks.pack_order.wait_mean"]


MEASURES = ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"]


def model(env, sampler):
    """The busy hour in a given environment: replicate sets the statistics."""
    env.registry.register_sim_parameter(PARAMS)
    packers = DynamicResource(env, "Shop", "packers")
    env.process(order_generator(env, sampler, packers))


def replications(n=40):
    """Runs the busy hour n times, each after the warm-up, with seeds spawned from 42."""
    shop = LowLevelModel(model, sim_id="Shop")
    return replicate(shop, n, seed=42, until=3600, warmup=WARMUP, measures=MEASURES)


def warmups(n=5) -> dict:
    """The mean wait of n runs after each candidate warm-up, with seeds spawned from 42."""
    shop = LowLevelModel(model, sim_id="Shop")
    wait = ["tasks.pack_order.wait_mean"]
    return {
        warmup: replicate(shop, n, seed=42, until=3600, warmup=warmup, measures=wait)
        for warmup in (60, WARMUP, 240)
    }


def precision(result) -> dict:
    """Each output's mean and half-width over the first 5, 10, 20 and 40 replications."""
    return {
        (measure, n): interval(result.values[measure][:n])
        for measure in MEASURES
        for n in (5, 10, 20, 40)
    }


if __name__ == "__main__":
    print(f"without a warm-up: mean wait {mean_wait(None):.3f} s")
    print(f"with a 2 min warm-up: mean wait {mean_wait(WARMUP):.3f} s")
    for warmup, result in warmups().items():
        row = result.summary[0]
        print(
            f"warm-up {warmup:g} s: mean wait {row['mean']:.3f} ± {row['half_width']:.2f} s"
        )
    for (measure, n), result in precision(replications()).items():
        share = result.half_width / result.mean
        print(
            f"{measure}, {n} runs: {result.mean:.2f} ± {result.half_width:.2f} ({share:.1%})"
        )
docs/snippets/tutorials/checking_a_model_observed.csv
1
2
3
measure,value,unit,population,horizon
tasks.pack_order.wait_mean,2.6,s,started instances,58 min
resources.packers.utilization_avg,91.0,percent,time average,58 min
