Comparing Designs

Trusting Results measured the busy hour with three packers: over 40 replications the mean wait was 2.32 ± 0.20 seconds. The shop could hire a fourth packer. This page asks: does a fourth packer cut the mean wait, and by how much?

  • Decision: three packers or four.
  • Measures: the mean wait and the packers' utilisation.
  • Runs: the busy hour after its 2-minute warm-up, 20 replications of each design with the same seeds, spawned from 42. The rest of the day is not modelled.
  • Assumptions: those of Trusting Results: orders at random at 1.8 a second, and the 40 packing times measured at the bench.

What You Will Learn

This page shows how to:

  • write an experiment that names the model, the designs, a comparison and a check;
  • compare two designs with the same seeds;
  • read the difference with its interval, and the report.

What You Add

This page adds an experiment: a file in YAML, or a mapping in Python, that names the model, the two designs, the comparison and a check. The model is the busy hour of Trusting Results, unchanged.

Name the Model

An experiment runs a model written in any of the three ways, for a number of replications from one seed:

docs/snippets/yaml/comparing_designs_experiment.yaml:model
1
2
3
4
5
# The busy hour of Trusting Results, with its 2-minute warm-up
model: trusting_results.yaml
until: 1 h
replications: 20
seed: 42

The path is read from the experiment file's folder.

docs/snippets/tutorials/comparing_designs.py:model
1
2
3
4
5
# A function returning a new busy hour, with its 2-minute warm-up
"model": shop,
"until": "1 h",
"replications": 20,
"seed": 42,

shop is the function of Trusting Results that returns a new busy hour. The experiment calls it once per run.

docs/snippets/tutorials/comparing_designs_low_level.py:model
1
2
3
4
5
6
# The function that builds the busy hour, and its 2-minute warm-up
"model": LowLevelModel(model, sim_id="Shop"),
"warmup": WARMUP,
"until": 3600,
"replications": 20,
"seed": 42,

The low-level model has no warm-up of its own, so the experiment gives it one.

Compare Two Designs

Each variant names the registry values it changes before the clock starts. three changes nothing, so it is the busy hour as written. four sets the packers' capacity to 4. pairing: common gives both designs the same 20 seeds, and compare asks for their difference seed by seed:

docs/snippets/yaml/comparing_designs_experiment.yaml:compare
1
2
3
4
5
6
7
8
# Every design runs with the same 20 seeds, so they are compared seed by seed
pairing: common
measures: [tasks.pack_order.wait_mean, resources.packers.utilization_avg]
variants:
  three: {}
  four: {Shop.resources.packers.current_cap: 4}
compare:
  - {baseline: three, variant: four}
docs/snippets/tutorials/comparing_designs.py:compare
1
2
3
4
5
# Every design runs with the same 20 seeds, so they are compared seed by seed
"pairing": "common",
"measures": ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"],
"variants": {"three": {}, "four": {"Shop.resources.packers.current_cap": 4}},
"compare": [{"baseline": "three", "variant": "four"}],

The same keys, in the same mapping as the model.

Save the files from Full Files in one folder and run the commands there:

1
desflow experiment comparing_designs_experiment.yaml

1
python comparing_designs.py

1
python comparing_designs_low_level.py

The experiment runs 40 replications, 20 of each design, and writes what it found to results/four-packers. The command prints only where it wrote and the result of the check. Open results/four-packers/report.md: its Results and Comparisons sections hold the two tables below. Each design's results, with the 95% half-width:

Design Mean wait (s) Utilisation (%)
three 2.48 ± 0.32 90.33 ± 0.63
four 0.27 ± 0.01 67.70 ± 0.46

The three-packer design ran with the first 20 of the seeds that Trusting Results used. Its row therefore equals that page's figure for 20 replications, not its mean of 2.32 seconds over 40. Busy Hour Figures lists both. The comparison gives the four-packer value minus the three-packer value, seed by seed:

Measure Difference Half-width Random streams
tasks.pack_order.wait_mean -2.21 s 0.31 s 2 shared
resources.packers.utilization_avg -22.63 percentage points 0.17 percentage points 2 shared

The difference in utilisation has a half-width of 0.17 percentage points, although each design's own utilisation has a half-width of 0.63 or 0.46. The same seed gives both designs the same arrivals and packing times, so a busy run of one design is a busy run of the other. Their difference therefore leaves out most of the variation that comes from chance. Running every design with the same seeds is called common random numbers. The difference in waits has a half-width of 0.31 seconds, about the same as the half-width of the three-packer wait, 0.32 seconds. With four packers the wait hardly varies, so the difference varies about as much as the three-packer wait does.

"2 shared" says both designs drew from the same two random streams, arrival.orders and service.packing. desflow records which streams each run drew from. It lists any stream that only one design used, such as the stream of a gift-wrap step that only one design has, because draws from such a stream are not paired. With pairing: independent each design gets seeds of its own instead. A comparison is then refused, because no seed pairs one run of each design.

Check the Answer

A check states what the answer must be. This one asks for a mean wait under half a second with four packers:

docs/snippets/yaml/comparing_designs_experiment.yaml:checks
1
2
3
checks:
  # The upper end of the interval must be under half a second
  - {measure: tasks.pack_order.wait_mean, variant: four, max: 0.5}
docs/snippets/tutorials/comparing_designs.py:checks
1
2
3
4
# The upper end of the interval must be under half a second
"checks": [
    {"measure": "tasks.pack_order.wait_mean", "variant": "four", "max": 0.5}
],

The same key, in the same mapping.

A check compares its bound with the end of the interval that is nearer to failing it, here the upper end. A mean that is below the bound only by chance has an upper end above the bound, so it does not pass. The upper end is 0.286 seconds, so the check passes. When a check fails, desflow experiment still writes every file, then exits with status 1, and run_experiment raises CheckFailed. Either way, a script or a CI job stops at the failed check.

Read the Report

The experiment writes report.md beside its results. It states the question, the model and its versions, the assumptions, each input distribution with where it came from, the run settings, the counts, the results, the comparison and the checks, and what the experiment does not state. The experiment file names its assumptions, the source of its inputs and its limits:

docs/snippets/yaml/comparing_designs_experiment.yaml:report
1
2
3
4
5
6
7
8
assumptions:
  - Orders arrive at random, at a steady 1.8 a second, through the busy hour.
  - The 40 packing times measured at the bench stand for every packer.
inputs:
  Shop.service.packing: 40 packing times measured at the bench, in seconds
limits:
  - One busy hour only; the rest of the day is not modelled.
output: results/four-packers

The experiment states where the packing times came from but not the arrival rate, so the report's Missing Inputs section says: "The provenance of Shop.arrival.orders is not stated." It names the gap rather than filling it in. Experiments lists every file and section.

output in the experiment file names the results folder. --output names another folder for one run, so a second run keeps the results of the first. desflow report builds report.md again from the other files in a results folder, with no new run, such as after editing experiment.json by hand. output= in run_experiment names the folder in Python:

1
2
desflow experiment comparing_designs_experiment.yaml --output results/four-packers-again
desflow report results/four-packers-again

What You Get and Why

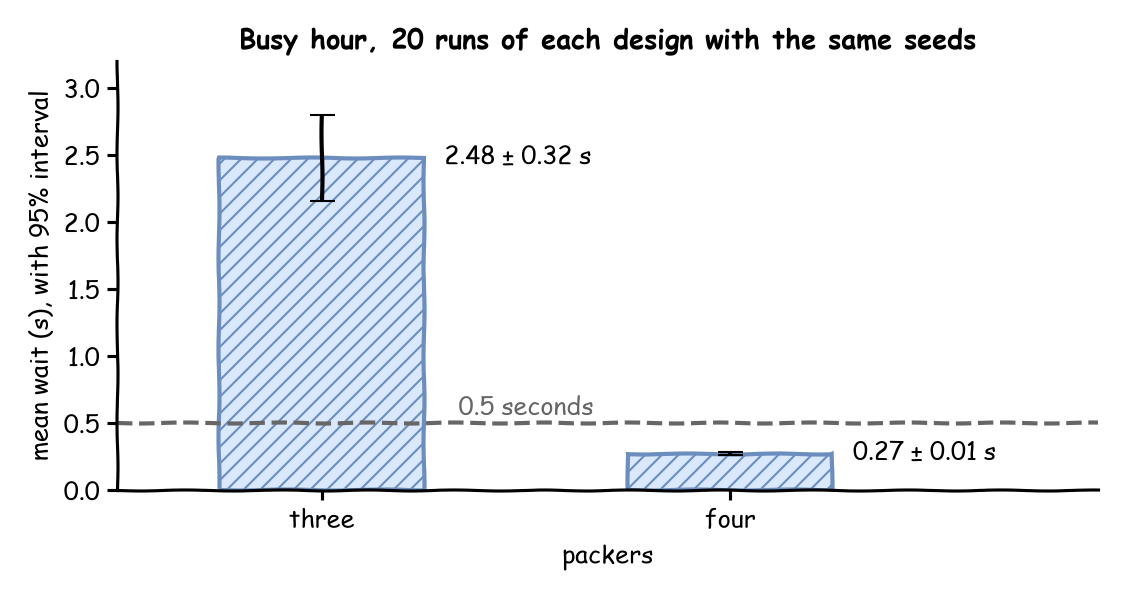

The mean wait of each design over its 20 replications, with its 95% interval:

Bars of the busy hour's mean wait over 20 replications of each design with the same seeds: 2.48 ± 0.32 seconds with three packers and 0.27 ± 0.01 seconds with four, which is under the dashed half-second bound

Does a fourth packer cut the mean wait, and by how much? Yes. Over 20 replications of each design after the 2-minute warm-up, with the same seeds, a fourth packer cuts the busy hour's mean wait by 2.21 ± 0.31 seconds, from 2.48 to 0.27 seconds. The packers are busy 22.63 ± 0.17 percentage points less of the time. The whole interval of the difference is below zero, and the four-packer wait stays under the half-second bound.

Two designs run with different seeds differ by the design and by chance, and the chance part can hide a small effect. With the same seeds, each pair of runs has the same arrivals and the same packing times, so the chance part partly cancels in their difference, as Output Analysis explains. Each difference comes from a seed of its own, so the 20 differences are independent of each other, and the interval is a Student t interval on them.

Key Takeaways

  • Running both designs with the same seeds makes the chance part of their difference partly cancel.
  • The difference between two designs has its own interval. An interval that lies wholly below or wholly above zero shows a difference that chance alone does not explain, at 95% confidence.
  • A check in the experiment turns the decision rule into a test that passes or fails.

Full Files

Full files
docs/snippets/yaml/comparing_designs_experiment.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
# The Comparing Designs tutorial: does a fourth packer cut the busy hour's mean wait?
# Run it with: desflow experiment comparing_designs_experiment.yaml
# Each design separately: change pairing to independent and remove compare.
experiment: four-packers
question: Does a fourth packer cut the mean wait of the busy hour, and by how much?
# The busy hour of Trusting Results, with its 2-minute warm-up
model: trusting_results.yaml
until: 1 h
replications: 20
seed: 42
# Every design runs with the same 20 seeds, so they are compared seed by seed
pairing: common
measures: [tasks.pack_order.wait_mean, resources.packers.utilization_avg]
variants:
  three: {}
  four: {Shop.resources.packers.current_cap: 4}
compare:
  - {baseline: three, variant: four}
checks:
  # The upper end of the interval must be under half a second
  - {measure: tasks.pack_order.wait_mean, variant: four, max: 0.5}
assumptions:
  - Orders arrive at random, at a steady 1.8 a second, through the busy hour.
  - The 40 packing times measured at the bench stand for every packer.
inputs:
  Shop.service.packing: 40 packing times measured at the bench, in seconds
limits:
  - One busy hour only; the rest of the day is not modelled.
output: results/four-packers
docs/snippets/yaml/trusting_results.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
# The Trusting Results tutorial: the busy hour, measured after a warm-up.
# Run it with: desflow run trusting_results.yaml
# Without the warm-up: WARMUP=0 desflow run trusting_results.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42
  # Records and statistics start after the first 2 minutes; 0 keeps everything
  warmup: ${WARMUP:-2 min}

resources:
  packers: {current_cap: 3, max_cap: 10}

arrivals:
  orders: {dist: exponential, rate: 1.8, spawn: pack_order}

services:
  # The 40 packing times measured at the bench, in seconds
  packing:
    dist: empirical
    values: [1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
             2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
             1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
             2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1]

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}

# Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
stats: {level: typical, interval: 10}

egress:
  - type: Console

run:
  until: 1 h
docs/snippets/tutorials/comparing_designs.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
"""The Comparing Designs tutorial: a fourth packer, builder.

Runs the busy hour of Trusting Results 20 times with three packers and 20 times with
four, with the same seeds, and compares the two designs seed by seed. The experiment
writes its artifacts and report to results/four-packers, and the script prints the
comparison and the check.
"""

import logging

from desflow import run_experiment
from trusting_results import shop

# The imported model logs at INFO; an experiment logs only its warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

EXPERIMENT = {
    "experiment": "four-packers",
    "question": "Does a fourth packer cut the mean wait of the busy hour, and by how much?",
    # A function returning a new busy hour, with its 2-minute warm-up
    "model": shop,
    "until": "1 h",
    "replications": 20,
    "seed": 42,
    # Every design runs with the same 20 seeds, so they are compared seed by seed
    "pairing": "common",
    "measures": ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"],
    "variants": {"three": {}, "four": {"Shop.resources.packers.current_cap": 4}},
    "compare": [{"baseline": "three", "variant": "four"}],
    # The upper end of the interval must be under half a second
    "checks": [
        {"measure": "tasks.pack_order.wait_mean", "variant": "four", "max": 0.5}
    ],
    "assumptions": [
        "Orders arrive at random, at a steady 1.8 a second, through the busy hour.",
        "The 40 packing times measured at the bench stand for every packer.",
    ],
    "inputs": {
        "Shop.service.packing": "40 packing times measured at the bench, in seconds"
    },
    "limits": ["One busy hour only; the rest of the day is not modelled."],
    "output": "results/four-packers",
}


def experiment(pairing="common", output=None):
    """Runs the experiment; independent pairing gives each design seeds of its own."""
    settings = dict(EXPERIMENT, pairing=pairing)
    if pairing == "independent":
        settings["compare"] = []  # a comparison needs the same seeds
    return run_experiment(settings, output=output)


if __name__ == "__main__":
    result = experiment()
    for row in result.comparisons:
        print(f"{row['measure']}: {row['difference']:.2f} ± {row['half_width']:.2f}")
    for row in result.checks:
        print(f"check {row['design']}: {row['value']:.3f} passed={row['passed']}")
docs/snippets/tutorials/trusting_results.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
"""The Trusting Results tutorial: the busy hour, measured after a warm-up, builder.

Three packers pack orders that arrive at 1.8 a second on average, with the packing
times measured at the bench. Every record is printed to the terminal. At the end the
script prints the mean wait without and with the warm-up, the mean wait of 5 runs
after each of three candidate warm-ups, then the mean and half-width of two outputs
over 5, 10, 20 and 40 replications. To see only those lines, run:
python trusting_results.py 2>/dev/null
"""

import logging

from desflow import ConsoleEgress, SimulationContext, replicate
from desflow.analysis import interval

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

# The 40 packing times measured at the bench, in seconds
MEASURED = [
    1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
    2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
    1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
    2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1,
]  # fmt: skip


def shop(warmup="2 min") -> SimulationContext:
    """The busy hour; records and statistics start after `warmup`."""
    app = (
        # Records and statistics start after the first 2 minutes; None keeps everything
        SimulationContext(sim_id="Shop", factor=0, random_seed=42, warmup=warmup)
        .add_resource("packers", current_cap=3, max_cap=10)
        .add_arrival("orders", dist="exponential", rate=1.8)
        .add_service("packing", dist="empirical", values=MEASURED)
        # Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
        .with_stats("typical", interval=10)
        .add_egress(ConsoleEgress())
    )

    @app.task(service_id="packing", resource_id="packers")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def mean_wait(warmup) -> float:
    """Runs the busy hour and returns the mean wait it measured."""
    app = shop(warmup)
    app.run(until="1 h")
    return app.env.stats.readings()["Shop.stats.tasks.pack_order.wait_mean"]


MEASURES = ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"]


def replications(n=40):
    """Runs the busy hour n times, each after the warm-up, with seeds spawned from 42."""
    return replicate(shop, n, seed=42, until="1 h", measures=MEASURES)


def warmups(n=5) -> dict:
    """The mean wait of n runs after each candidate warm-up, with seeds spawned from 42."""
    wait = ["tasks.pack_order.wait_mean"]
    return {
        warmup: replicate(shop, n, seed=42, until="1 h", warmup=warmup, measures=wait)
        for warmup in ("1 min", "2 min", "4 min")
    }


def precision(result) -> dict:
    """Each output's mean and half-width over the first 5, 10, 20 and 40 replications."""
    return {
        (measure, n): interval(result.values[measure][:n])
        for measure in MEASURES
        for n in (5, 10, 20, 40)
    }


if __name__ == "__main__":
    print(f"without a warm-up: mean wait {mean_wait(None):.3f} s")
    print(f"with a 2 min warm-up: mean wait {mean_wait('2 min'):.3f} s")
    for warmup, result in warmups().items():
        row = result.summary[0]
        print(
            f"warm-up {warmup}: mean wait {row['mean']:.3f} ± {row['half_width']:.2f} s"
        )
    for (measure, n), result in precision(replications()).items():
        share = result.half_width / result.mean
        print(
            f"{measure}, {n} runs: {result.mean:.2f} ± {result.half_width:.2f} ({share:.1%})"
        )
docs/snippets/tutorials/comparing_designs_low_level.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
"""The Comparing Designs tutorial: a fourth packer, low-level.

Runs the busy hour of Trusting Results 20 times with three packers and 20 times with
four, with the same seeds, and compares the two designs seed by seed. The experiment
writes its artifacts and report to results/four-packers, and the script prints the
comparison and the check.
"""

import logging

from desflow import LowLevelModel, run_experiment
from trusting_results_low_level import WARMUP, model

# The imported model logs at INFO; an experiment logs only its warnings
logging.getLogger("desflow").setLevel(logging.WARNING)

EXPERIMENT = {
    "experiment": "four-packers",
    "question": "Does a fourth packer cut the mean wait of the busy hour, and by how much?",
    # The function that builds the busy hour, and its 2-minute warm-up
    "model": LowLevelModel(model, sim_id="Shop"),
    "warmup": WARMUP,
    "until": 3600,
    "replications": 20,
    "seed": 42,
    "pairing": "common",
    "measures": ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"],
    "variants": {"three": {}, "four": {"Shop.resources.packers.current_cap": 4}},
    "compare": [{"baseline": "three", "variant": "four"}],
    "checks": [
        {"measure": "tasks.pack_order.wait_mean", "variant": "four", "max": 0.5}
    ],
    "assumptions": [
        "Orders arrive at random, at a steady 1.8 a second, through the busy hour.",
        "The 40 packing times measured at the bench stand for every packer.",
    ],
    "inputs": {
        "Shop.service.packing": "40 packing times measured at the bench, in seconds"
    },
    "limits": ["One busy hour only; the rest of the day is not modelled."],
    "output": "results/four-packers",
}


def experiment(pairing="common", output=None):
    """Runs the experiment; independent pairing gives each design seeds of its own."""
    settings = dict(EXPERIMENT, pairing=pairing)
    if pairing == "independent":
        settings["compare"] = []  # a comparison needs the same seeds
    return run_experiment(settings, output=output)


if __name__ == "__main__":
    result = experiment()
    for row in result.comparisons:
        print(f"{row['measure']}: {row['difference']:.2f} ± {row['half_width']:.2f}")
    for row in result.checks:
        print(f"check {row['design']}: {row['value']:.3f} passed={row['passed']}")
docs/snippets/tutorials/trusting_results_low_level.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
"""The Trusting Results tutorial: the busy hour, measured after a warm-up, low-level.

Three packers pack orders that arrive at 1.8 a second on average, with the packing
times measured at the bench. Every record is printed to the terminal. At the end the
script prints the mean wait without and with the warm-up, the mean wait of 5 runs
after each of three candidate warm-ups, then the mean and half-width of two outputs
over 5, 10, 20 and 40 replications. To see only those lines, run:
python trusting_results_low_level.py 2>/dev/null
"""

import logging

from desflow import (
    CapacityConfig,
    ConsoleEgress,
    DistributionConfig,
    DynamicRealtimeEnvironment,
    DynamicResource,
    LowLevelModel,
    Sampler,
    SimParameter,
    replicate,
)
from desflow.analysis import interval

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

# The 40 packing times measured at the bench, in seconds
MEASURED = [
    1.5, 2.5, 2.4, 1.2, 1.3, 1.2, 1.8, 1.4, 2.0, 0.7,
    2.7, 1.4, 1.9, 1.4, 1.3, 1.8, 2.0, 1.4, 1.4, 1.9,
    1.1, 0.8, 1.7, 1.1, 0.7, 1.1, 1.2, 0.9, 0.8, 1.5,
    2.1, 1.3, 1.1, 1.7, 1.9, 1.3, 1.8, 2.2, 1.4, 1.1,
]  # fmt: skip

PARAMS = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="exponential", rate=1.8)},
    service={"packing": DistributionConfig(dist="empirical", values=MEASURED)},
    resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
)


def pack_order(env, sampler, packers, key, task_id):
    """One order, which reports each step to the statistics."""
    path_id = "Shop.service.packing"

    def publish(value):
        env.publish_event(key, value, task="pack_order", instance=task_id)

    publish({"path_id": path_id, "status": "queued"})
    env.stats.flow_started("orders")  # the order enters the shop
    env.stats.task_queued("pack_order", task_id)
    with packers.request() as request:
        yield request
        publish({"path_id": path_id, "status": "started"})
        env.stats.task_started("pack_order", task_id)
        yield env.timeout(sampler.sample(env.registry.get_config(path_id)))
        publish({"event_type": "order_packed"})
    env.stats.task_finished("pack_order", task_id)
    env.stats.flow_finished("orders")  # the order leaves the shop


def order_generator(env, sampler, packers):
    arrival = env.registry.get_config("Shop.arrival.orders")
    task_id = 0
    while True:
        yield env.timeout(sampler.sample(arrival))
        env.process(pack_order(env, sampler, packers, f"orders-{task_id + 1}", task_id))
        task_id += 1


# Records and statistics start after the first 2 minutes; None keeps everything
WARMUP = 120.0  # seconds, passed to setup_egress in run below


def run(warmup=WARMUP, until=3600, factor=0.0):
    env = DynamicRealtimeEnvironment(factor=factor)
    env.registry.register_sim_parameter(PARAMS)
    # Every 10 seconds, wait_mean is the mean wait so far: plot it against sim_ts
    env.setup_stats("Shop", "typical", interval=10)
    # The warm-up is set with the sinks: no sink receives a record stamped before it
    # ends, and the statistics start again from zero when it ends
    env.setup_egress([ConsoleEgress()], warmup=warmup)
    packers = DynamicResource(env, "Shop", "packers")
    env.process(order_generator(env, Sampler(seed=42), packers))
    try:
        env.run(until=until)
    finally:
        env.teardown()
    return env


def mean_wait(warmup) -> float:
    """Runs the busy hour and returns the mean wait it measured."""
    return run(warmup).stats.readings()["Shop.stats.tasks.pack_order.wait_mean"]


MEASURES = ["tasks.pack_order.wait_mean", "resources.packers.utilization_avg"]


def model(env, sampler):
    """The busy hour in a given environment: replicate sets the statistics."""
    env.registry.register_sim_parameter(PARAMS)
    packers = DynamicResource(env, "Shop", "packers")
    env.process(order_generator(env, sampler, packers))


def replications(n=40):
    """Runs the busy hour n times, each after the warm-up, with seeds spawned from 42."""
    shop = LowLevelModel(model, sim_id="Shop")
    return replicate(shop, n, seed=42, until=3600, warmup=WARMUP, measures=MEASURES)


def warmups(n=5) -> dict:
    """The mean wait of n runs after each candidate warm-up, with seeds spawned from 42."""
    shop = LowLevelModel(model, sim_id="Shop")
    wait = ["tasks.pack_order.wait_mean"]
    return {
        warmup: replicate(shop, n, seed=42, until=3600, warmup=warmup, measures=wait)
        for warmup in (60, WARMUP, 240)
    }


def precision(result) -> dict:
    """Each output's mean and half-width over the first 5, 10, 20 and 40 replications."""
    return {
        (measure, n): interval(result.values[measure][:n])
        for measure in MEASURES
        for n in (5, 10, 20, 40)
    }


if __name__ == "__main__":
    print(f"without a warm-up: mean wait {mean_wait(None):.3f} s")
    print(f"with a 2 min warm-up: mean wait {mean_wait(WARMUP):.3f} s")
    for warmup, result in warmups().items():
        row = result.summary[0]
        print(
            f"warm-up {warmup:g} s: mean wait {row['mean']:.3f} ± {row['half_width']:.2f} s"
        )
    for (measure, n), result in precision(replications()).items():
        share = result.half_width / result.mean
        print(
            f"{measure}, {n} runs: {result.mean:.2f} ± {result.half_width:.2f} ({share:.1%})"
        )
