Arrivals and Services: Sampler and the Distributions
Two building blocks set the timing of every simulation. An arrival decides how often a new entity enters the model: an order, a visitor, a support call. A service decides how long a piece of work takes: packing an order, answering a call. Both are distributions of time, and each time one is needed, a value is drawn from the distribution with its current parameters.
What It Is
| Block | Answers | Used by | Example |
|---|---|---|---|
| Arrival | How long until the next entity? | the arrival loop, which starts a task for each one | an order every 2 s on average |
| Service | How long does this piece of work take? | a task, while it holds its resource | 3 s of packing, give or take 0.5 s |

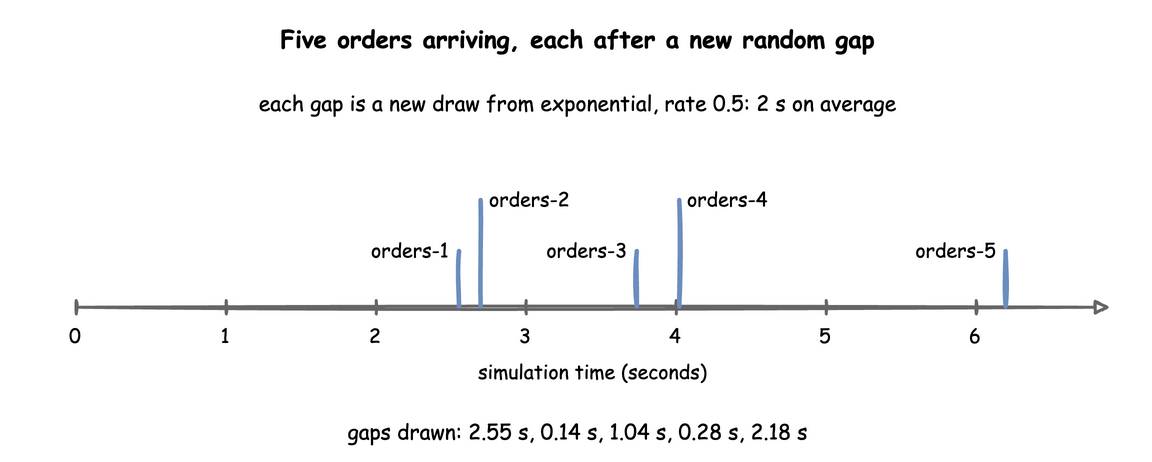

An arrival draws one gap after another, so entities arrive at uneven times. Look at the first five orders of the shop in First Simulation:
How to Use It
Every distribution is a family, dist, and the parameters that family takes. There are ten families. A parameter outside its range, a missing one, or one the family does not take is refused when the model is built, with the YAML line when it comes from a blueprint. Reference, Distributions lists every family with its parameters, rules, mean and variance; this section shows each in use.
Exponential
Gaps between arrivals that happen independently of each other: orders, calls, visits. Many short gaps and a few long ones, with mean 1 / rate.
rate above 0, in events per second: 0.5 is one every 2 seconds on average, 2.0 is two a second. It is the one parameter that is not a time, so it takes no duration.
Normal
Work with a typical time and a small, symmetric spread.
mean, and std 0 or more (0 when left out). A std of 0 gives the mean every time. A draw can be negative, and every time is raised to at least 0.00001 seconds, which raises the mean of a wide normal; use truncated_normal for that.
Truncated Normal
Work with a typical time and a hard minimum.
mean, std 0 or more, and low, 0 when left out; with std 0, mean must be at least low. A draw below low is thrown away and drawn again, so no draws pile up at the limit, and the mean is the truncated distribution's own: 1.29 seconds for mean: 1, std: 1, low: 0. When low is more than half a standard deviation above the mean, where plain draws are kept less and less often, it uses an exponential proposal (Robert, 1995), so it stays exact and fast for any low.
Lognormal
Times that are never negative and now and then much longer: repairs, support calls.
mean above 0 and std 0 or more (0 when left out). Both describe the times you get, not the underlying normal; desflow converts them.
Constant
Fixed times: a conveyor, a set-up, a step that takes no time.
value 0 or more. It uses no random number at all.
Uniform
Any time in a range, all equally likely, when only the range is known.
low and high, with low < high. The mean is halfway between them.
Triangular
An expert's estimate: the shortest, the most likely and the longest time.
low, mode and high, all required, with low <= mode <= high and low < high. The mean is (low + mode + high) ÷ 3.
Gamma
Times less variable than exponential. A whole-number shape is the Erlang distribution: that many exponential steps in a row.
shape and scale, both above 0. The mean is shape × scale and the variance shape × scale². From a mean and a standard deviation: shape = (mean ÷ std)² and scale = std² ÷ mean, so a mean of 1.5 seconds with a std of 0.5 is shape 9 and scale 0.1667.
Weibull
Time to failure: a shape below 1 fails early, a shape above 1 wears out.
shape and scale, both above 0. The mean is scale × gamma(1 + 1 ÷ shape), where gamma is the gamma function.
Empirical
Times taken from real data, when no family fits.
# under services: measured times, each equally likely; or weights, one per value
loading: {dist: empirical, values: [1.2 s, 1.5 s, 1.5 s, 2.1 s, 3 s]}
# a histogram: 10 times from 0 to 1 s, 30 from 1 to 2 s, 5 from 2 to 4 s
sealing: {dist: empirical, edges: [0, 1 s, 2 s, 4 s], counts: [10, 30, 5]}
# Measured times, each equally likely; or weights=[...], one per value
app.add_service("loading", dist="empirical", values=[1.2, 1.5, 1.5, 2.1, 3.0])
# A histogram: 10 times from 0 to 1 s, 30 from 1 to 2 s, 5 from 2 to 4 s
app.add_service("sealing", dist="empirical", edges=[0, 1, 2, 4], counts=[10, 30, 5])
# Measured times, each equally likely; or weights=[...], one per value
loading = DistributionConfig(dist="empirical", values=[1.2, 1.5, 1.5, 2.1, 3.0])
# A histogram: 10 times from 0 to 1 s, 30 from 1 to 2 s, 5 from 2 to 4 s
sealing = DistributionConfig(dist="empirical", edges=[0, 1, 2, 4], counts=[10, 30, 5])
Either values, each equally likely, with optional weights, one per value; or a histogram of edges and counts, one count per bin, where a draw picks a bin by its count and a time inside it uniformly. Weights and counts are 0 or more and add up to more than 0, and edges increase. The lists are taken when the model is loaded, so an empirical distribution has no registry path and does not change while the run goes on.
Durations
In a blueprint, every time-valued parameter takes a duration as well as a number of seconds: mean, std, low, mode, high, scale and value, and the values and edges of an empirical. A plain number is seconds. rate stays a number per second.
# under services: every time-valued parameter takes a duration
support_call: {dist: lognormal, mean: 5 min, std: 3 min}
The builder and the low-level API take seconds.
Seeding
A seed makes every draw the same on every run:
# The same draws on every run; leave it out to draw a seed and log it
random_seed: 42
desflow run arrivals_services.yaml --seed 7 overrides it without editing the file.
A run without a seed draws one and logs it, so it can be repeated: desflow run logs the command with --seed, and a builder run logs the value to pass as random_seed:
A low-level Sampler() with no seed draws nothing at random, as How It Works explains. Randomness and Seeds shows seeds in use.
How It Works
One registry of distributions. Every family is declared once, in desflow.core.distributions.DISTRIBUTIONS, with its parameters, its range rules, how to draw from it, its mean and variance, and what it gives with no random generator. The YAML models, the builder, DistributionConfig, the Sampler and the registry's live paths all read it, so they accept the same families and parameters. These are 200,000 draws from each family:
A draw reads the live configuration. A DistributionConfig holds the family and its parameters. Sampler.sample(config) reads the parameters at the moment it is called, so a change made while the run goes on applies from the next draw. A task draws its service time once it has its resource and has published started; the arrival loop draws the next gap when it starts waiting. Every value is raised to at least 0.00001 seconds, so a time is never 0 or negative.
One random stream per distribution. A seeded Sampler makes one generator for each name: NumPy's SeedSequence(seed, spawn_key=(CRC32 of the name,)). When the registry registers a distribution, it names it by its path without the sim id, such as arrival.orders or service.packing, and every draw from that distribution comes from that stream. Probability routing draws from route.<task> in the same way, as Task Flow describes. Adding a distribution therefore leaves every other one's draws unchanged, and renaming the simulation does not change them either:
In the low-level API, a DistributionConfig that was never registered draws from the Sampler's main generator instead. Your own code can take a stream of its own with sampler.generator("<name>"):
# Each registered distribution draws from the stream named by its path without
# the sim id; register the parameters, and sample() picks the stream
registry = SimulationRegistry(simpy.Environment())
registry.register_sim_parameter(SimParameter(sim_id="Shop", arrival={"orders": gap}))
assert gap.stream == "arrival.orders"
stream = Sampler(seed=42).generator("arrival.orders") # the same seed, the same name
assert stream is not None and sampler.sample(gap) == stream.exponential(2.0)
Sampler(rng=np.random.default_rng(42)) draws the same numbers as Sampler(seed=42), because the streams come from the generator's seed.
No random generator. A Sampler() with neither a seed nor a generator draws nothing at random: every sample is the distribution's mean, or its value, which gives the time a model takes on average and suits a test. A truncated_normal gives its mean or its low, whichever is higher.
fixed = Sampler() # no random generator: every draw is the mean, or the value
assert fixed.sample(packing) == 3.0 and fixed.sample(gap) == 2.0
assert fixed.sample(checking) == 1.5 # shape × scale
SimPy and desflow. SimPy has no distributions: a SimPy model draws its own times, usually with random.expovariate(0.5) for a gap, and writes yield env.timeout(...) with the result. Nothing checks the parameters, a negative draw makes timeout raise, and the parameters are ordinary variables. desflow names each distribution and its parameters once, checks them, keeps them in the registry, and gives each a stream of its own; SimPy and desflow compares the two.
Under Live Changes
Each scalar parameter a family takes has a path in the registry: <sim_id>.arrival.<name>.rate for an exponential arrival, <sim_id>.service.<name>.mean and .std for a normal service, .low, .mode and .high for a triangular, .shape and .scale for a gamma or weibull, .value for a constant. A scenario, an ingress message or a process changes it while the run goes on, as Live Parameters explains:
- The next draw uses the new value. An order already being packed keeps the time it drew, and the arrival already being waited for keeps its gap.
- An update is checked on a copy of the configuration, by the same rules as at build. A value outside the range is refused with an error log line, and the old value stays:
packing_path = "Shop.service.packing.std"
registry.register_sim_parameter(
SimParameter(sim_id="Shop", service={"packing": packing})
)
registry.update(packing_path, -1.0) # refused with an error log line
assert registry.get(packing_path).value == 0.5 # the old value stays
Invalid value for 'Shop.service.packing.std': normal std must be 0 or more, got -1.0. Update ignored.
- The family is fixed when the model is built. There is no path that turns a
normalinto anexponential, and an update to a parameter the family does not have, such as.rateon a normal, is refused as an unknown path, with a warning. - An
empiricaldistribution has no paths: its lists are taken at load.
Stability and Limits
-
Refused at build. The same checks refuse a bad distribution when the model is built. These three are an out-of-range
std, a parameternormaldoes not take, and amodeabovehigh:docs/snippets/pages/arrivals_services.py:invalidrefused: List[Dict[str, Any]] = [ {"dist": "normal", "mean": 3.0, "std": -1.0}, # out of range {"dist": "normal", "mean": 3.0, "rate": 2.0}, # a parameter normal does not take {"dist": "triangular", "low": 1.0, "mode": 3.0, "high": 2.0}, # mode above high ] for parameters in refused: try: DistributionConfig(**parameters) except ValueError as error: print(error) -
A wide

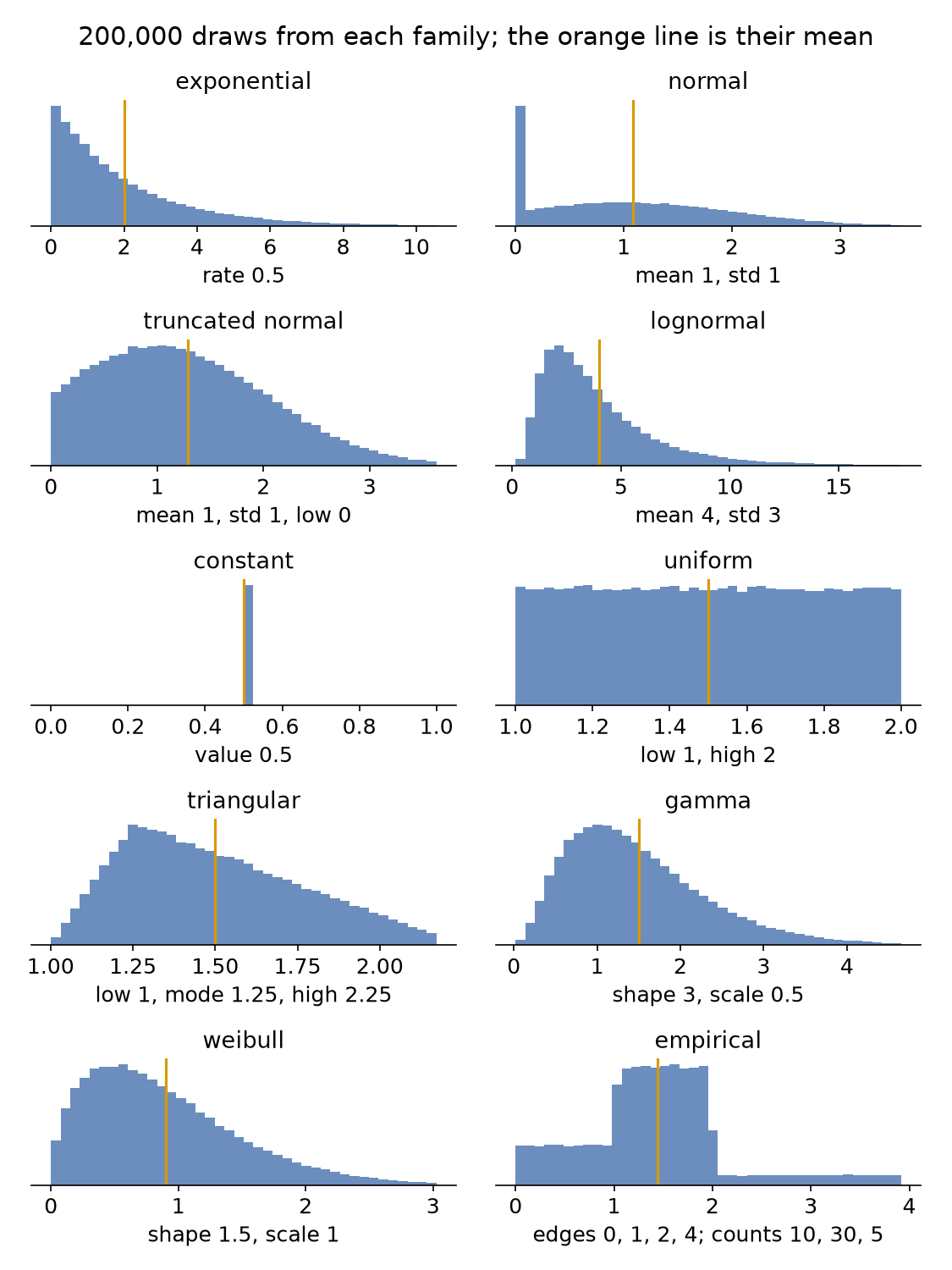

normal. Whenstdis half ofmean, 2.3% of draws fall below 0 and are raised to the floor, and atstdequal tomeanit is 15.9%, so the average time rises: the normal panel in the chart above has a mean of 1.08, not 1. Usetruncated_normal. - Rate against mean.
exponentialtakes arateper second, not a mean gap: an order every 30 seconds israte: 0.0333, not30. - A seed and the timestamps. A seed fixes the draws and so the simulation times, but each record's
timestampalso depends on when the run started, unlesslogical_start_timeis set, as Time and Pacing explains. - Spread lengthens queues. Two models with the same mean times but a different spread have different queues: more spread means longer waits, as Queues and Capacity and Choosing Inputs measure.
