Ingress

An ingress connector brings parameter changes into a running simulation from outside: from Kafka, Redis, PostgreSQL or a local schedule. This page shows each connector, the message it reads, how to send one, and when the change lands.

---

What It Is

An ingress connector listens to a source while the run goes on. Every message it reads is one change: a registry path and its new value, the same two names a scenario step uses. The change reaches the registry, and the simulation follows it, as Live Parameters describes. Four connectors bring changes in, beside the seven that write records out, on Egress:

---

How to Use It

Each connector is attached with add_ingress in the builder, passed to env.setup_ingress in the low-level API, or listed under ingress in a blueprint with its type and config, as YAML Format shows.

Connector	Source	Message	Extra
LocalIngress	a schedule in the code	(delay in wall-clock seconds, path, value)	none
KafkaIngress	a topic	a JSON object {"path": ..., "value": ...}	kafka
RedisIngress	a Pub/Sub channel	the same JSON object	redis
PostgresIngress	a table, polled	a row with the columns path and value, the value as JSON text	postgres

Local Schedule

LocalIngress applies changes after set delays in wall-clock seconds from the start of the run. It suits a local run; for a change at an exact simulation time, use a scenario step.

docs/snippets/pages/connectors.py:local-ingress

# 10 wall-clock seconds after the start, set the packers capacity to 3
app.add_ingress(
    LocalIngress(schedule=[(10.0, "Shop.resources.packers.current_cap", 3)])
)

Kafka

KafkaIngress consumes a topic and reads each message as a JSON object with path and value, or through a deserializer of your own, such as Avro, as Avro and Pydantic shows.

docs/snippets/pages/connectors.py:kafka-ingress

# Reads {"path": ..., "value": ...} messages from the sim-config topic
app.add_ingress(KafkaIngress(topic="sim-config", bootstrap_servers="localhost:9092"))

KafkaAdminConnector.send_config(topic, path, value) sends one such message. The Kafka example listens on sim-config, and this sets its number of packers:

docs/snippets/pages/live_parameters_kafka.py

"""Sets the packers capacity of the running Kafka example.

`KafkaAdminConnector.send_config` publishes `{"path": ..., "value": ...}` to the
topic `KafkaIngress` reads, `sim-config` in the example. Call `set_packer_capacity(3)`
while the example runs.
"""

import asyncio

from desflow import KafkaAdminConnector


def set_packer_capacity(value: int) -> None:
    admin = KafkaAdminConnector(bootstrap_servers="localhost:9092")
    asyncio.run(
        admin.send_config("sim-config", "Shop.resources.packers.current_cap", value)
    )

From any Kafka client, the message is the JSON object itself:

docs/snippets/pages/ingress_senders.py:kafka

async def send_with_kafka(rate: float) -> None:
    """A JSON object with path and value, to the topic KafkaIngress reads."""
    from aiokafka import AIOKafkaProducer

    producer = AIOKafkaProducer(bootstrap_servers="localhost:9092")
    await producer.start()
    try:
        message = {"path": "Shop.arrival.orders.rate", "value": rate}
        await producer.send_and_wait("sim-config", json.dumps(message).encode())
    finally:
        await producer.stop()

Redis

RedisIngress subscribes to a Pub/Sub channel and reads each message as the same JSON object.

docs/snippets/pages/connectors.py:redis-ingress

# Reads {"path": ..., "value": ...} messages from a Pub/Sub channel
app.add_ingress(
    RedisIngress(
        "redis://user:password@localhost:6379/0", channel_name="simulation_params"
    )
)

docs/snippets/pages/ingress_senders.py:redis

async def send_with_redis(rate: float) -> None:
    """The same JSON object, published to the channel RedisIngress subscribes to."""
    import redis.asyncio as redis

    client = redis.from_url("redis://user:password@localhost:6379/0")
    message = {"path": "Shop.arrival.orders.rate", "value": rate}
    await client.publish("simulation_params", json.dumps(message))
    await client.aclose()

With the Redis example running, valkey-cli sends one from a shell:

docker exec -it valkey valkey-cli --user user --pass password PUBLISH simulation_params '{"path": "Shop.arrival.orders.rate", "value": 10.0}'

PostgreSQL

PostgresIngress polls a table, simulation_params by default, every poll_interval seconds, 2 by default. It creates the table when it is missing, with the columns id, path, value, is_applied and created_at. At the start it applies the latest applied value of each path, so a restarted run resumes from the last settings; then it applies every row whose is_applied is false and marks it true, so the table keeps the history of every change. value is read as JSON, and as plain text when it is not JSON.

docs/snippets/pages/connectors.py:postgres-ingress

# Applies new rows (path, value) of simulation_params, checking every 2 seconds
app.add_ingress(
    PostgresIngress(
        "postgresql://user:password@localhost:5432/odctl",
        table_name="simulation_params",
        poll_interval=2.0,
    )
)

docs/snippets/pages/ingress_senders.py:postgres

async def send_with_postgres(rate: float) -> None:
    """A row in the table PostgresIngress polls; value is JSON text."""
    import asyncpg

    conn = await asyncpg.connect("postgresql://user:password@localhost:5432/odctl")
    try:
        await conn.execute(
            "INSERT INTO simulation_params (path, value) VALUES ($1, $2)",
            "Shop.arrival.orders.rate",
            json.dumps(rate),
        )
    finally:
        await conn.close()

With the PostgreSQL example running, psql adds one from a shell:

docker exec -it postgres psql -U user -d odctl -c "INSERT INTO simulation_params (path, value) VALUES ('Shop.arrival.orders.rate', '5.0');"

---

How It Works

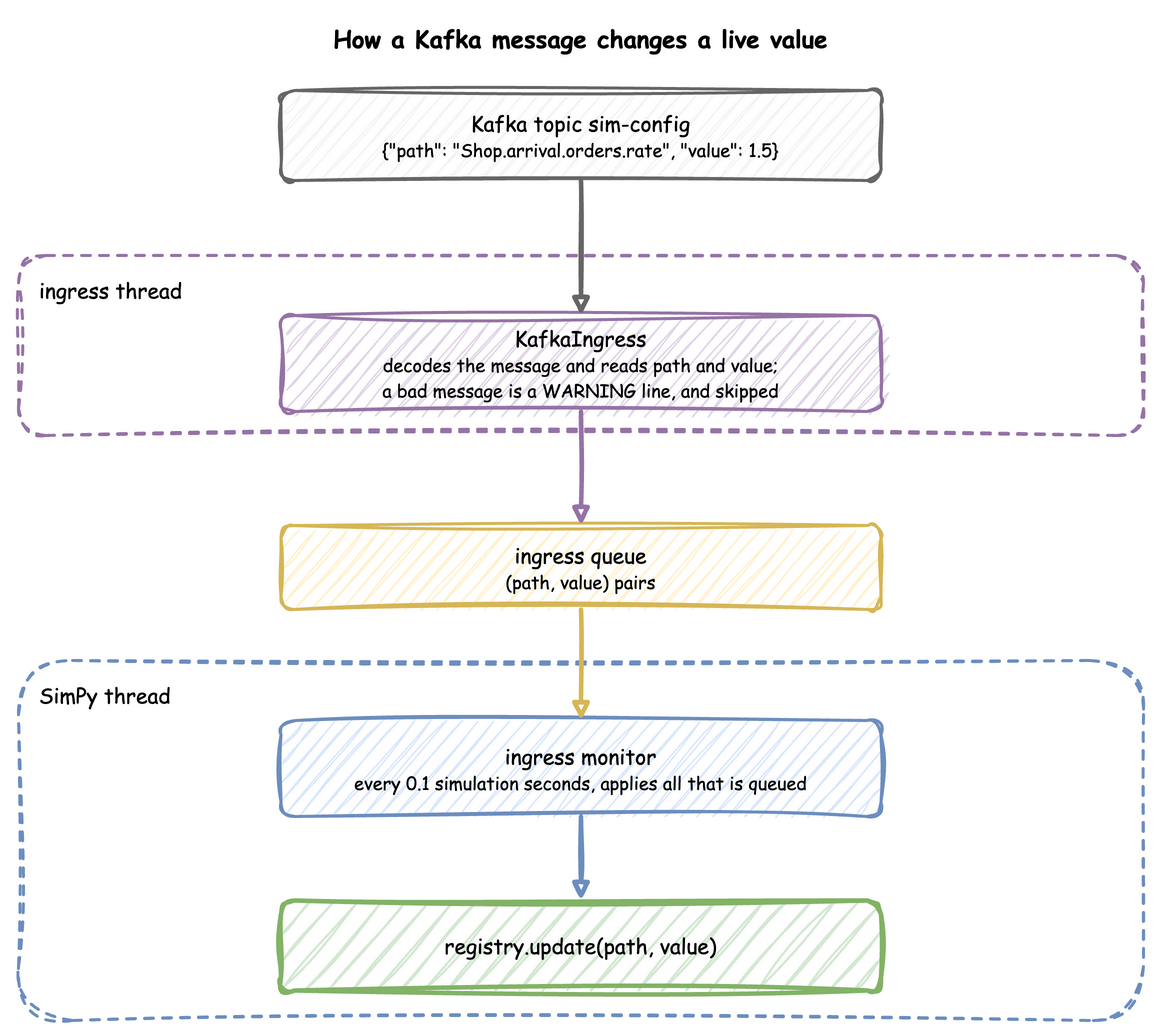

The connectors run on the ingress thread, apart from the simulation. Each reads its source, turns every message into a (path, value) pair with one shared check, and puts it on a queue. A SimPy process, the ingress monitor, applies everything queued every 0.1 simulation seconds:

At factor: 1.0 a change therefore lands within 0.1 seconds of arriving. The simulation time it lands at depends on when it arrives, so two runs with the same seed and the same messages can differ; a change that must land at an exact simulation time is a scenario step.

---

Stability and Limits

• A bad message is skipped. A message that cannot be decoded, that is not an object, or that lacks a non-empty path or a non-null value is logged as one WARNING line and skipped; the run goes on. A PostgreSQL row like that is marked applied, so it is read once. A path the model does not have is a warning from the registry.

• Old keys get a hint. Before 0.21.0, Kafka read path_id, and Redis and PostgreSQL read param_path and param_value. A message with the old keys is skipped with a line that says so:

  docs/snippets/pages/ingress_senders.py:old-keys

  # Every connector reads a message with the same check; one written for desflow
  # 0.20.0 or earlier is refused with a hint
  try:
      parse_change({"path_id": "Shop.arrival.orders.rate", "value": 1.0})
  except ValueError as error:
      print(f"Skipped a Kafka ingress message: {error}")


  Skipped a Kafka ingress message: expected a non-empty path and a non-null value, got {'path_id': 'Shop.arrival.orders.rate', 'value': 1.0}; path_id, param_path and param_value were renamed to path and value in desflow 0.21.0


• Old PostgreSQL columns. A table created before 0.21.0 has the columns param_path and param_value. Reading it fails with an error line that gives the two statements to rename them:

  ALTER TABLE simulation_params RENAME COLUMN param_path TO path;
  ALTER TABLE simulation_params RENAME COLUMN param_value TO value;


• LocalIngress follows the wall clock, so at factor: 0 an unpaced run can end before its first change.

• Ingress needs an until. The ingress monitor repeats for as long as the run lasts, so a run with ingress needs until or Ctrl+C, as Time and Pacing explains.
