Kafka Connect

Both Kafka profiles run one Kafka Connect worker, connect, beside the brokers. Kafka Connect runs connectors: a source connector writes records from another system into Kafka, and a sink connector writes records from Kafka into another system. The worker loads its connectors from the shared volume that the deps profile fills, and you manage them through its REST API. The end-to-end tests run the commands below on every release.

This guide builds on Kafka, which starts kafka-lite and reads a topic with the console consumer.

Start the profile:

odctl up kafka-lite

Setting	Value
REST API from the host	http://127.0.0.1:8083
REST API inside the odctl network	http://connect:8083
Plugin folder	/mnt/shared-deps/connect
Default converters	JSON with schemas, for keys and values
Offset flush interval	10 seconds

The converters and the flush interval are set today in the connect service of .odctl/compose-kafka.yml (offset.flush.interval.ms=10000), where an edit can change them.

Plugins

The deps image puts these connectors in the plugin folder: the Apache Iceberg sink, the Debezium PostgreSQL source, the ClickHouse sink, the Aiven JDBC connector, the Aiven S3 sink, the Redis connector and the MSK data generator. This lists the classes Connect has loaded:

curl -s http://127.0.0.1:8083/connector-plugins

The reply is a JSON list with one entry per class. The tests check that it includes org.apache.iceberg.connect.IcebergSinkConnector, io.debezium.connector.postgresql.PostgresConnector and com.clickhouse.kafka.connect.ClickHouseSinkConnector. A plugin missing from the volume does not stop Connect from starting. It only leaves the class out of this list.

Register a Connector

A connector is a name and a config object, posted to /connectors. The MSK data generator is a source connector that needs nothing but Kafka: it writes made-up records to a topic. Save this configuration as demo-datagen.json. It writes a record to the topic customers every half second, with an ISBN-10 number as its key, a first name and a number of visits from 1 to 10:

{
  "name": "demo-datagen",
  "config": {
    "connector.class": "com.amazonaws.mskdatagen.GeneratorSourceConnector",
    "tasks.max": "1",
    "genkp.customers.with": "#{Code.isbn10}",
    "genv.customers.name.with": "#{Name.first_name}",
    "genv.customers.visits.with": "#{number.number_between '1','10'}",
    "global.throttle.ms": "500",
    "key.converter": "org.apache.kafka.connect.storage.StringConverter",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "false"
  }
}

The worker's default converters expect JSON with a schema envelope, so the connector sets its own: plain strings for keys, and JSON without a schema for values. Post the file from the folder that holds it:

curl -X POST -H 'Content-Type: application/json' \
  http://127.0.0.1:8083/connectors -d @demo-datagen.json

The reply repeats the configuration, with "tasks":[] and "type":"source". The worker starts the task right after it answers.

Read Its Records

The broker creates customers when the connector first writes to it, because automatic topic creation is on by default. This reads the first three records with their keys:

docker exec kafka /opt/kafka/bin/kafka-console-consumer.sh --bootstrap-server broker-1:19092 \
  --topic customers --from-beginning --max-messages 3 --timeout-ms 60000 \
  --formatter-property print.key=true

Each line is a key, a tab and a value such as {"name":"Patrina","visits":"3"}. The names and numbers are random. The consumer ends with Processed a total of 3 messages.

Check and Remove It

This reads the connector's status, then deletes it:

curl -s http://127.0.0.1:8083/connectors/demo-datagen/status
curl -X DELETE http://127.0.0.1:8083/connectors/demo-datagen

The status shows "state":"RUNNING" for the connector and for task 0. A failed task shows FAILED with its error. The worker's log has the rest:

docker logs --tail 40 connect

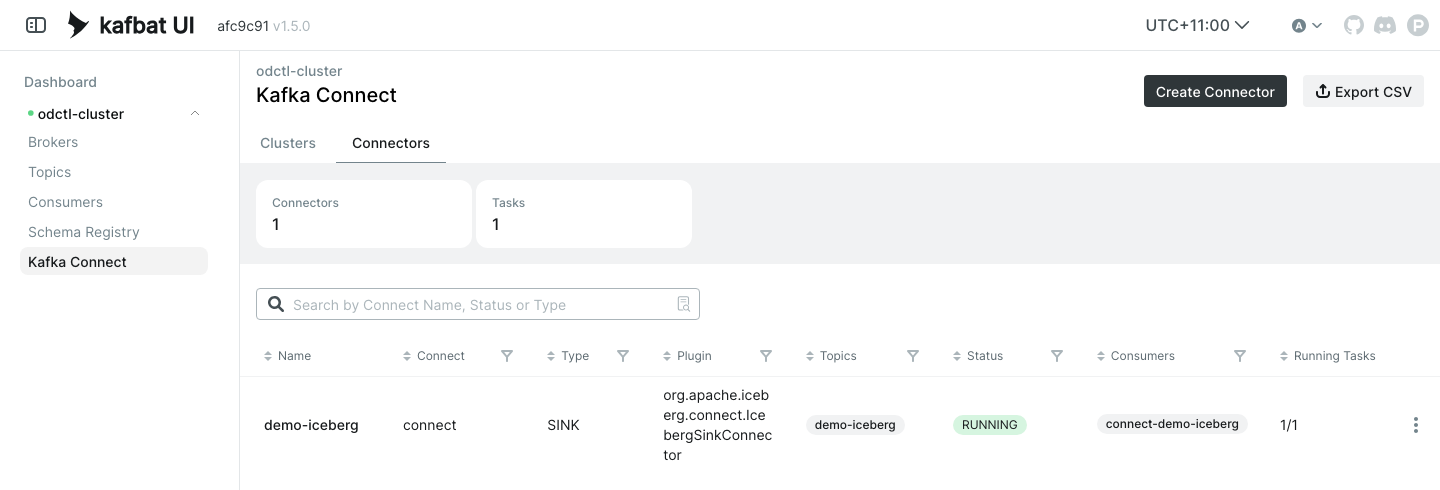

After the delete, the last lines of the log say that the worker stopped the task of demo-datagen. Kafka UI at http://127.0.0.1:8086 lists the registered connectors under Kafka Connect, Connectors. Ingest into Iceberg registers a sink connector, the Iceberg sink.

PostgreSQL for Debezium

The postgres profile runs PostgreSQL with wal_level=logical. Its init script creates the cdc schema and the cdc_pub publication for every table in that schema, so a Debezium source can read changes to tables you create in cdc. Start both profiles to use it:

odctl up postgres kafka-lite

From Another Container

Inside the odctl network, the REST API is http://connect:8083, and connectors reach the brokers at broker-1:19092, the catalog at http://catalog:8181 and SeaweedFS at http://seaweed:8333.

Runnable Example

Save this file as example.sh and run it with bash example.sh in the folder that holds your .odctl workspace. It holds the configuration above, so it needs no other file:

#!/usr/bin/env bash
# Starts kafka-lite, registers a data generator connector, reads three of its
# records, prints the connector's status and removes it.
set -euo pipefail

odctl up kafka-lite

# The REST API answers a little after the worker starts.
until curl -fs http://127.0.0.1:8083/connectors >/dev/null; do sleep 2; done

curl -s -X POST -H 'Content-Type: application/json' http://127.0.0.1:8083/connectors -d @- <<'JSON'
{
  "name": "demo-datagen",
  "config": {
    "connector.class": "com.amazonaws.mskdatagen.GeneratorSourceConnector",
    "tasks.max": "1",
    "genkp.customers.with": "#{Code.isbn10}",
    "genv.customers.name.with": "#{Name.first_name}",
    "genv.customers.visits.with": "#{number.number_between '1','10'}",
    "global.throttle.ms": "500",
    "key.converter": "org.apache.kafka.connect.storage.StringConverter",
    "value.converter": "org.apache.kafka.connect.json.JsonConverter",
    "value.converter.schemas.enable": "false"
  }
}
JSON
echo

docker exec kafka /opt/kafka/bin/kafka-console-consumer.sh --bootstrap-server broker-1:19092 \
  --topic customers --from-beginning --max-messages 3 --timeout-ms 60000 \
  --formatter-property print.key=true

curl -s http://127.0.0.1:8083/connectors/demo-datagen/status
echo
curl -s -X DELETE http://127.0.0.1:8083/connectors/demo-datagen

It prints the reply to the registration, three records, Processed a total of 3 messages and the status with "state":"RUNNING".
