End Conditions

Level: Intermediate

The shop now takes 0.7 orders a second for an hour, a little more than its one packer can pack in 1.5 seconds each, so orders are still waiting when the hour ends. A report that counts only the orders packed in the hour leaves them out. This page asks: does a fixed horizon answer the same question as closing the doors and packing every order already in the shop? It runs the hour both ways and counts every order.

What You Add

A drain at the end of the run, and the counts that show which orders each way leaves out. The shop is the one from First Simulation, busier: one packer and 1.5 seconds of packing.

Count Who Is Still There

An end condition decides which entities a run's results describe. With statistics at basic or above, flows.orders.started counts the orders that entered the shop, when their first task began, before any queue, flows.orders.finished the orders that left, and flows.orders.in_system those still in the shop; from minimal, tasks.pack_order.in_progress counts the orders waiting for or being packed:

docs/snippets/yaml/end_conditions.yaml:watch
1
2
# Orders started, finished and still in the shop, and the mean wait, at the end
stats: {level: typical, interval: 2 h}
docs/snippets/tutorials/end_conditions.py:watch
1
2
# Orders started, finished and still in the shop, and the mean wait, at the end
.with_stats("typical", interval=7200)
docs/snippets/tutorials/end_conditions_low_level.py:watch
1
2
# Orders started, finished and still in the shop, and the mean wait, at the end
env.setup_stats("Shop", "typical", interval=7200)

A low-level process reports its entities with env.stats.flow_started(arrival) and env.stats.flow_finished(arrival), as the full file below does.

Every order that started is finished or still in the shop: started is finished plus in_system, so the counts say how many orders a mean wait leaves out.

Close the Doors, Then Finish

A fixed horizon stops the clock at until, whatever is still going on. A drain stops only the arrivals at until and keeps running until every entity in the model has left. In SimPy that is two steps: interrupt the source process, then run until every admitted process has ended. desflow writes both with drain:

docs/snippets/yaml/end_conditions.yaml:run
1
2
3
4
5
run:
  # No new orders after one hour
  until: 1 h
  # true: pack every order already in the shop before the run ends
  drain: ${DRAIN:-false}

${DRAIN:-false} reads the environment variable DRAIN, so DRAIN=true desflow run end_conditions.yaml runs the drain, as desflow run end_conditions.yaml --drain does.

docs/snippets/tutorials/end_conditions.py:run
1
2
# No new orders after one hour; with drain, pack every order already in the shop
app.run(until="1 h", drain=drain or None)
docs/snippets/tutorials/end_conditions_low_level.py:run
1
2
3
4
5
env.run(until=3600)  # no new orders after one hour
if drain:
    # Stop the source, then run until every admitted order has ended
    source.interrupt()
    env.run(until=env.all_of([o for o in orders if o.is_alive]))

env.all_of(...) is SimPy's AllOf: it happens when every order process has ended.

A drain can also take a limit, drain: {limit: 10 min}, so a model that never empties still ends, and a stop ends the run as soon as an event or a condition happens; Time and Pacing describes both.

Result

Does a fixed horizon answer the same question as a drain? Not for every order. The fixed horizon ends at 3,600 seconds with 2,436 orders started, 2,398 finished and 38 still in the shop, one being packed and 37 waiting. The drain ends 56.4 seconds later, at 3,656.4, with all 2,436 finished:

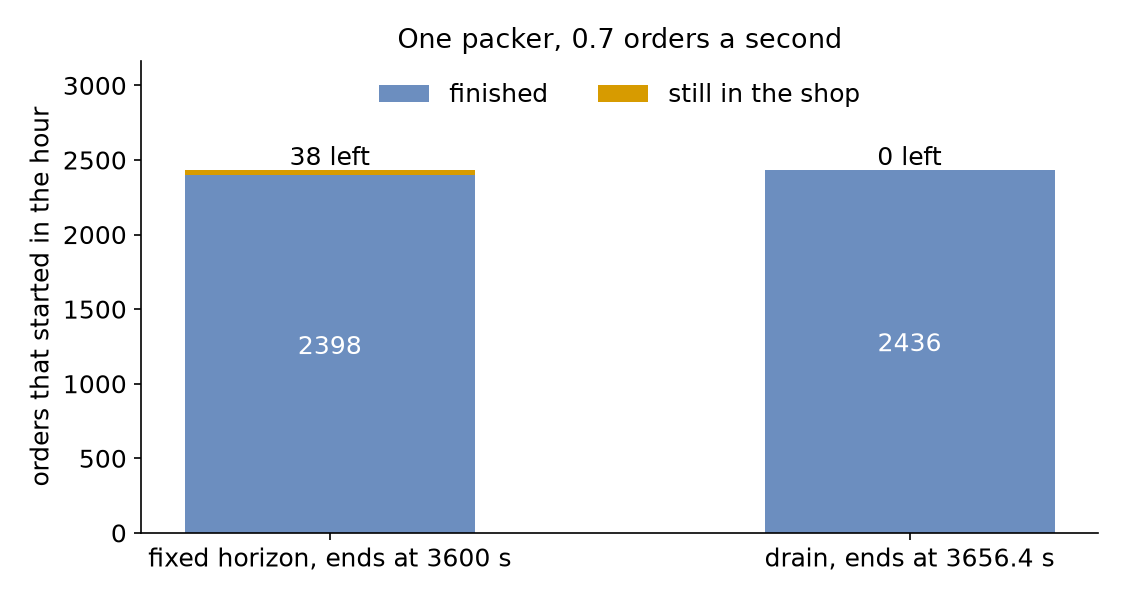

Fixed horizon: 2398 orders finished and 38 left; drain: 2436 finished and 0 left

The mean wait barely moves, 71.70 seconds against 71.51, because the wait of an order is measured when its packing starts, and only 37 orders started late. The Builder and Low-level scripts print both runs:

1
2
horizon: ends at  3600.0 s, 2436 started, 2398 finished, 38 left, mean wait 71.70 s
drain  : ends at  3656.4 s, 2436 started, 2436 finished, 0 left, mean wait 71.51 s

Why It Works

A fixed horizon answers a question about a period, such as how many orders the shop packs in an hour; the orders still in the shop are its unfinished work, and in_system says how many there are. A drain answers a question about a batch of orders, such as how long the day's orders take to clear; it serves every admitted order, at the cost of running past the hour. Report the counts beside any mean, so a reader knows which orders it covers. Statistics describes each count.

Full Files

Full files
docs/snippets/yaml/end_conditions.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
# The End Conditions tutorial: a fixed horizon against a drain.
# Run it with: desflow run end_conditions.yaml
# With a drain after the hour: DRAIN=true desflow run end_conditions.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42

resources:
  packers: {current_cap: 1, max_cap: 4}

services:
  packing: {dist: constant, value: 1.5 s}

arrivals:
  orders: {dist: exponential, rate: 0.7, spawn: pack_order}

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}

# Orders started, finished and still in the shop, and the mean wait, at the end
stats: {level: typical, interval: 2 h}

egress:
  - type: Console

run:
  # No new orders after one hour
  until: 1 h
  # true: pack every order already in the shop before the run ends
  drain: ${DRAIN:-false}
docs/snippets/tutorials/end_conditions.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
"""The End Conditions tutorial: a fixed horizon against a drain.

One packer, 0.7 orders a second and 1.5 seconds of packing, for an hour. Every
record is printed to the terminal, and the script prints the counts and the mean
wait with a fixed horizon and with a drain at the end:
python end_conditions.py 2>/dev/null shows only those lines.
"""

import logging

from desflow import ConsoleEgress, SimulationContext

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)


def shop() -> SimulationContext:
    """The shop of First Simulation, busier: more orders than one packer can pack."""
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42)
        .add_resource("packers", current_cap=1, max_cap=4)
        .add_service("packing", dist="constant", value=1.5)
        .add_arrival("orders", dist="exponential", rate=0.7)
        # Orders started, finished and still in the shop, and the mean wait, at the end
        .with_stats("typical", interval=7200)
        .add_egress(ConsoleEgress())
    )

    @app.task(service_id="packing", resource_id="packers")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def outcomes(drain: bool) -> dict:
    """Runs the hour, with or without a drain, and returns the counts and the wait."""
    app = shop()
    # No new orders after one hour; with drain, pack every order already in the shop
    app.run(until="1 h", drain=drain or None)
    r = app.env.stats.readings()
    name = "Shop.stats.{}".format
    return {
        "started": r[name("flows.orders.started")],
        "finished": r[name("flows.orders.finished")],
        "in_system": r[name("flows.orders.in_system")],
        "wait_mean": r[name("tasks.pack_order.wait_mean")],
        "end": app.env.now,
    }


if __name__ == "__main__":
    for drain in (False, True):
        r = outcomes(drain)
        label = "drain  " if drain else "horizon"
        print(
            f"{label}: ends at {r['end']:7.1f} s, {r['started']} started, "
            f"{r['finished']} finished, {r['in_system']} left, "
            f"mean wait {r['wait_mean']:5.2f} s"
        )
docs/snippets/tutorials/end_conditions_low_level.py
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
"""The End Conditions tutorial: a fixed horizon against a drain.

One packer, 0.7 orders a second and 1.5 seconds of packing, for an hour. Every
record is printed to the terminal, and the script prints the counts and the mean
wait with a fixed horizon and with a drain at the end:
python end_conditions_low_level.py 2>/dev/null shows only those lines.
"""

import itertools
import logging

import simpy

from desflow import (
    CapacityConfig,
    ConsoleEgress,
    DistributionConfig,
    DynamicRealtimeEnvironment,
    DynamicResource,
    Sampler,
    SimParameter,
)

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

PARAMS = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="exponential", rate=0.7)},
    service={"packing": DistributionConfig(dist="constant", value=1.5)},
    resources={"packers": CapacityConfig(current_cap=1, max_cap=4)},
)


def pack_order(env, sampler, packers, key, task_id):
    path_id = "Shop.service.packing"

    def publish(value):
        env.publish_event(key, value, task="pack_order", instance=task_id)

    env.stats.flow_started("orders")  # the order enters the shop
    publish({"path_id": path_id, "status": "queued"})
    env.stats.task_queued("pack_order", task_id)
    with packers.request() as request:
        yield request
        publish({"path_id": path_id, "status": "started"})
        env.stats.task_started("pack_order", task_id)
        yield env.timeout(sampler.sample(env.registry.get_config(path_id)))
        publish({"event_type": "order_packed"})
        env.stats.task_finished("pack_order", task_id)
    env.stats.flow_finished("orders")


def order_generator(env, sampler, packers, orders):
    arrival = env.registry.get_config("Shop.arrival.orders")
    try:
        for task_id in itertools.count():
            yield env.timeout(sampler.sample(arrival))
            key = f"orders-{task_id + 1}"
            orders.append(env.process(pack_order(env, sampler, packers, key, task_id)))
    except simpy.Interrupt:
        pass  # no new orders after the hour


def run(drain=False, factor=0.0):
    env = DynamicRealtimeEnvironment(factor=factor)
    env.registry.register_sim_parameter(PARAMS)
    env.setup_egress([ConsoleEgress()])
    # Orders started, finished and still in the shop, and the mean wait, at the end
    env.setup_stats("Shop", "typical", interval=7200)
    packers = DynamicResource(env, "Shop", "packers")
    orders = []
    source = env.process(order_generator(env, Sampler(seed=42), packers, orders))
    try:
        env.run(until=3600)  # no new orders after one hour
        if drain:
            # Stop the source, then run until every admitted order has ended
            source.interrupt()
            env.run(until=env.all_of([o for o in orders if o.is_alive]))
    finally:
        env.teardown()
    return env


def outcomes(drain: bool) -> dict:
    """Runs the hour, with or without a drain, and returns the counts and the wait."""
    env = run(drain)
    r = env.stats.readings()
    name = "Shop.stats.{}".format
    return {
        "started": r[name("flows.orders.started")],
        "finished": r[name("flows.orders.finished")],
        "in_system": r[name("flows.orders.in_system")],
        "wait_mean": r[name("tasks.pack_order.wait_mean")],
        "end": env.now,
    }


if __name__ == "__main__":
    for drain in (False, True):
        r = outcomes(drain)
        label = "drain  " if drain else "horizon"
        print(
            f"{label}: ends at {r['end']:7.1f} s, {r['started']} started, "
            f"{r['finished']} finished, {r['in_system']} left, "
            f"mean wait {r['wait_mean']:5.2f} s"
        )

Next, Fit the Inputs asks which distribution fits the 40 packing times.
