Patience

Level: Intermediate

The shop now takes 0.7 orders a second, and its one packer packs one every 1.5 seconds, so orders arrive faster than they can be packed. A real customer does not wait for ever: one whose order has not started within 30 seconds cancels it. And the courier leaves at the hour, so the shop takes no new orders in the last five minutes. This page asks: which orders leave or refuse to join, and what does that do to the wait of the others? It measures the hour with a patience of 30 seconds and without one.

What You Add

A patience and a balk condition on the packing task. The shop is the one from First Simulation: one packer and 1.5 seconds of packing, run for an hour, with orders at 0.7 a second.

---

Leave After a Wait

An entity that leaves a queue after waiting too long reneges. In SimPy it waits for whichever comes first, the unit or a timeout, with the | of two events (an AnyOf), then checks which one happened. In desflow it is the task's patience: how long the task may wait, for its wait, then its resource and then its get from a store or container, before it leaves the queue and publishes reneged. It counts waiting time only and pauses while the task is served, as SimPy's pattern does when a preempted process waits again with the patience it has left:

YAMLBuilderLow-level

# A customer cancels an order not started within 30 seconds
patience: ${PATIENCE:-30 s}

${PATIENCE:-30 s} reads the environment variable PATIENCE, 30 seconds when it is not set, so PATIENCE="1 h" desflow run patience.yaml runs the hour with no limit that matters. patience takes seconds, a duration, or an expression such as attr.patience, so each order can bring its own.

# A customer cancels an order not started within 30 seconds
patience=patience,

patience is 30 here, in seconds; it also takes a duration, as in YAML: patience="30 s". A distribution's parameters in the builder take seconds only.

# A customer cancels an order not started within 30 seconds
yield request | env.timeout(patience)
if not request.triggered:
    # Leaving the with block takes the request out of the queue
    publish("reneged")
    env.stats.task_reneged("pack_order", task_id)
    return

request | env.timeout(patience) is SimPy's AnyOf: it happens when either event does. request.triggered is true once the unit is granted. Leaving the with block takes a waiting request out of the queue at once, so the packer is never granted to an order that has gone. SimPy and desflow describes events and conditions.

A reneged order publishes reneged in place of started and its finished event, and adds nothing to the wait statistics, because it was never served.

A grant and a patience can fall at the same instant: the packer finishes the previous order at exactly the moment the next order's 30 seconds run out. desflow then does what plain SimPy does, which depends on which of the two events was scheduled first; the Reneging and Balking guide shows both cases.

---

Refuse to Join

An entity that does not join a queue at all balks. In SimPy it is an if before the request. In desflow it is the task's balk, a condition checked before the task joins the queue; when it holds, the task publishes balked and never asks for the resource. Here t, the simulation time, stops new orders in the last five minutes:

YAMLBuilderLow-level

# The courier leaves at the hour, so the last 5 minutes take no new orders
balk: t >= 3300

# The courier leaves at the hour, so the last 5 minutes take no new orders
balk="t >= 3300",

# The courier leaves at the hour, so the last 5 minutes take no new orders
if env.now >= 3300:
    publish("balked")
    env.stats.task_balked("pack_order", task_id)
    return

The condition reads the names every expression reads, such as attr.<name> for the order's own attributes and level.<name> for a store or container; Task Flow lists them.

---

Count Who Left

With statistics at basic and above, each task publishes how many instances reneged and balked, as Shop.stats.tasks.pack_order.reneged and .balked, once the first one happens. typical adds the mean and longest wait of the orders that were served:

YAMLBuilderLow-level

# Counts of finished, reneged and balked orders, and the mean wait, at the end
stats: {level: typical, interval: 1 h}

# Counts of finished, reneged and balked orders, and the mean wait, at the end
.with_stats("typical", interval=3600)

# Counts of finished, reneged and balked orders, and the mean wait, at the end
env.setup_stats("Shop", "typical", interval=3600)

A low-level process counts its own outcomes with env.stats.task_reneged(task, instance) and env.stats.task_balked(task, instance), as the full file below does.

---

Result

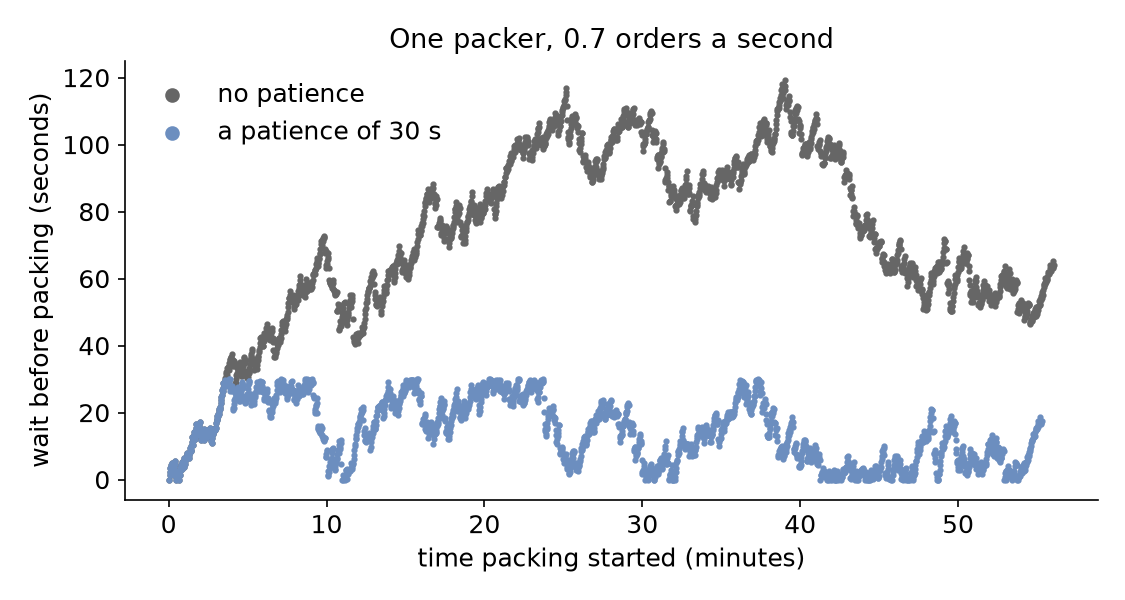

Which orders leave or refuse to join, and what does that do to the others? With a patience of 30 seconds, 69 orders leave the queue during the hour, and the mean wait of the packed orders falls from 72.16 seconds to 14.57 seconds; no packed order waits more than 30 seconds. In both runs the 194 orders that arrive in the last five minutes refuse to join. The wait of each packed order over the hour shows why:

The Builder and Low-level scripts print both runs:

patience 30 s: 2173 packed, 69 reneged, 194 balked, mean wait 14.57 s
patience none: 2242 packed, 0 reneged, 194 balked, mean wait 72.16 s

Why It Works

Orders arrive at 0.7 a second and bring 1.05 seconds of packing each second, more than one packer can do, so without patience the queue grows and every order waits longer than the one before. Patience removes the orders that have waited longest, which keeps the queue short for the rest: the shop packs 69 fewer orders, and every order it packs waits less. The mean wait of packed orders is then no longer the whole story, because it leaves out the orders that left; report the reneged and balked counts beside it. Statistics describes what each count measures.

---

Full Files

Full files

YAMLBuilderLow-level

# The Patience tutorial: orders leave after waiting too long, and none join near closing.
# Run it with: desflow run patience.yaml
# With no time limit: PATIENCE="1 h" desflow run patience.yaml
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42

resources:
  packers: {current_cap: 1, max_cap: 4}

services:
  packing: {dist: constant, value: 1.5 s}

arrivals:
  # 0.7 orders a second: more than one packer can pack
  orders: {dist: exponential, rate: 0.7, spawn: pack_order}

tasks:
  pack_order:
    service: packing
    resource: packers
    # A customer cancels an order not started within 30 seconds
    patience: ${PATIENCE:-30 s}
    # The courier leaves at the hour, so the last 5 minutes take no new orders
    balk: t >= 3300
    payload: {event_type: order_packed}

# Counts of finished, reneged and balked orders, and the mean wait, at the end
stats: {level: typical, interval: 1 h}

egress:
  - type: Console

run:
  until: 1 h

"""The Patience tutorial: orders leave after waiting too long, and none join near closing.

One packer, 0.7 orders a second and 1.5 seconds of packing. Every record is printed
to the terminal, and the script prints what happened to the orders with a patience
of 30 seconds and with none at the end: python patience.py 2>/dev/null shows only
those lines.
"""

import logging

from desflow import ConsoleEgress, SimulationContext

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)


def shop(patience: float = 30) -> SimulationContext:
    """The shop, where a customer waits at most `patience` seconds."""
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42)
        .add_resource("packers", current_cap=1, max_cap=4)
        .add_service("packing", dist="constant", value=1.5)
        # 0.7 orders a second: more than one packer can pack
        .add_arrival("orders", dist="exponential", rate=0.7)
        # Counts of finished, reneged and balked orders, and the mean wait, at the end
        .with_stats("typical", interval=3600)
        .add_egress(ConsoleEgress())
    )

    @app.task(
        service_id="packing",
        resource_id="packers",
        # A customer cancels an order not started within 30 seconds
        patience=patience,
        # The courier leaves at the hour, so the last 5 minutes take no new orders
        balk="t >= 3300",
    )
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}


    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def outcomes(patience: float) -> dict:
    """Runs one hour and returns what happened to the orders, and the mean wait."""
    app = shop(patience)
    app.run(until="1 h")
    readings = app.env.stats.readings()
    name = "Shop.stats.tasks.pack_order.{}".format
    return {
        outcome: readings.get(name(outcome), 0)
        for outcome in ("finished", "reneged", "balked", "wait_mean")
    }


if __name__ == "__main__":
    for patience, label in ((30, "30 s"), (3600, "none")):
        result = outcomes(patience)
        print(
            f"patience {label:>4}: {result['finished']} packed, "
            f"{result['reneged']} reneged, {result['balked']} balked, "
            f"mean wait {result['wait_mean']:5.2f} s"
        )

"""The Patience tutorial: orders leave after waiting too long, and none join near closing.

One packer, 0.7 orders a second and 1.5 seconds of packing. Every record is printed
to the terminal, and the script prints what happened to the orders with a patience
of 30 seconds and with none at the end: python patience_low_level.py 2>/dev/null
shows only those lines.
"""

import logging

from desflow import (
    CapacityConfig,
    ConsoleEgress,
    DistributionConfig,
    DynamicRealtimeEnvironment,
    DynamicResource,
    Sampler,
    SimParameter,
)

logging.basicConfig(
    level=logging.INFO, format="%(levelname)s [%(asctime)s] %(message)s"
)

PARAMS = SimParameter(
    sim_id="Shop",
    # 0.7 orders a second: more than one packer can pack
    arrival={"orders": DistributionConfig(dist="exponential", rate=0.7)},
    service={"packing": DistributionConfig(dist="constant", value=1.5)},
    resources={"packers": CapacityConfig(current_cap=1, max_cap=4)},
)


def pack_order(env, sampler, packers, key, task_id, patience):
    path_id = "Shop.service.packing"

    def publish(status):
        value = {"path_id": path_id, "status": status}
        env.publish_event(key, value, task="pack_order", instance=task_id)

    # The courier leaves at the hour, so the last 5 minutes take no new orders
    if env.now >= 3300:
        publish("balked")
        env.stats.task_balked("pack_order", task_id)
        return
    publish("queued")
    env.stats.task_queued("pack_order", task_id)
    with packers.request() as request:
        # A customer cancels an order not started within 30 seconds
        yield request | env.timeout(patience)
        if not request.triggered:
            # Leaving the with block takes the request out of the queue
            publish("reneged")
            env.stats.task_reneged("pack_order", task_id)
            return
        publish("started")
        env.stats.task_started("pack_order", task_id)
        yield env.timeout(sampler.sample(env.registry.get_config(path_id)))
        value = {"event_type": "order_packed"}
        env.publish_event(key, value, task="pack_order", instance=task_id)
    env.stats.task_finished("pack_order", task_id)


def order_generator(env, sampler, packers, patience):
    arrival = env.registry.get_config("Shop.arrival.orders")
    task_id = 0
    while True:
        yield env.timeout(sampler.sample(arrival))
        key = f"orders-{task_id + 1}"
        env.process(pack_order(env, sampler, packers, key, task_id, patience))
        task_id += 1


def run(patience=30, until=3600, factor=0.0):
    env = DynamicRealtimeEnvironment(factor=factor)
    env.registry.register_sim_parameter(PARAMS)
    env.setup_egress([ConsoleEgress()])
    # Counts of finished, reneged and balked orders, and the mean wait, at the end
    env.setup_stats("Shop", "typical", interval=3600)
    packers = DynamicResource(env, "Shop", "packers")
    sampler = Sampler(seed=42)
    env.process(order_generator(env, sampler, packers, patience))
    try:
        env.run(until=until)
    finally:
        env.teardown()
    return env


def outcomes(patience: float) -> dict:
    """Runs one hour and returns what happened to the orders, and the mean wait."""
    readings = run(patience).stats.readings()
    name = "Shop.stats.tasks.pack_order.{}".format
    return {
        outcome: readings.get(name(outcome), 0)
        for outcome in ("finished", "reneged", "balked", "wait_mean")
    }


if __name__ == "__main__":
    for patience, label in ((30, "30 s"), (3600, "none")):
        result = outcomes(patience)
        print(
            f"patience {label:>4}: {result['finished']} packed, "
            f"{result['reneged']} reneged, {result['balked']} balked, "
            f"mean wait {result['wait_mean']:5.2f} s"
        )

Reneging and Balking shows the same two decisions in a shop example, with ties and how to check that every order is accounted for. Next, Interruptions asks what remains of an order's packing when an express order takes its packer.
