Fit the Inputs

Level: Intermediate

Choosing Inputs compared four candidates for the packing time by hand and chose the 40 times measured at the bench. desflow can fit every distribution family to those times and say which fits best. This page asks: which supported distribution fits the 40 packing times, and does the choice change the busy hour's answer?

What You Add

desflow fit, or fit_column in Python, on the 40 packing times, and the fitted settings in the busy hour of Trusting Results in place of the times themselves. Fitting needs the fit extra: pip install "desflow[fit]".

Fit the Packing Times

Fit the times, which are in seconds and cannot be below 0:

1
desflow fit packing_times.csv --column packing_seconds --lower 0 --out fitted/packing.yaml --plot fit.png

packing_times.csv has a column packing_seconds with the 40 times; desflow examples get fitting downloads it as fitting/packing_times.csv. --out writes the best candidate's settings, and --plot draws the data against it.

docs/snippets/tutorials/fit_the_inputs.py:fit
1
2
3
# The 40 packing times, in seconds; none can be below 0
result = fit_column(MEASURED, unit="s", lower=0)
print(result.text())  # every candidate, its status and diagnostics
docs/snippets/tutorials/fit_the_inputs_low_level.py:fit
1
2
3
# The 40 packing times, in seconds; none can be below 0
result = fit_column(MEASURED, unit="s", lower=0)
print(result.text())  # every candidate, its status and diagnostics

Each family is fitted by maximum likelihood, which chooses the parameters under which the measured values are most probable, then checked and given one row:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
40 rows: 40 used, 0 missing, 0 invalid
family            status              AIC      KS p (approx.)  parameters or reason
exponential       rejected                                     its std is 1.5, the data's is 0.4832: more than 25% apart
normal            fitted            59.33   0.157      0.2504  mean=1.5, std=0.483218 (can draw below the lower bound 0)
lognormal         fitted            57.33 0.09406      0.8385  mean=1.50251, std=0.511854
truncated_normal  fitted            59.25  0.1558      0.2579  mean=1.49836, std=0.48579, low=0
constant          skipped                                      the values are not all equal
uniform           fitted            59.45   0.225     0.02923  low=0.7, high=2.7
triangular *      fitted            56.68  0.1258       0.511  low=0.546332, mode=1.2, high=2.83766
gamma             fitted            56.79  0.1157      0.6165  shape=9.55777, scale=0.15694
weibull           fitted            58.99  0.1502      0.2972  shape=3.33522, scale=1.67203
empirical         fitted                                       values: 40 numbers
* best: triangular

AIC, Akaike's information criterion, scores how likely the data is under the fitted family, with a penalty for each parameter; lower is better. KS is the largest gap between the data's cumulative share and the family's, and its p-value is approximate, because the family was fitted to the same data. exponential was rejected: its standard deviation equals its mean, 1.5 seconds, more than three times the data's. constant was skipped, because the times are not all equal. normal fitted, but it can draw below 0, so it is not chosen while a family that stays within the bounds fits. empirical, the 40 times themselves, is always offered. The lowest AIC is the triangular, marked best, with gamma 0.11 behind it.

Look at the Fit

--plot, or result.plot("fit.png"), draws the data against 10,000 values drawn from the best fit through desflow's Sampler, as a run draws them:

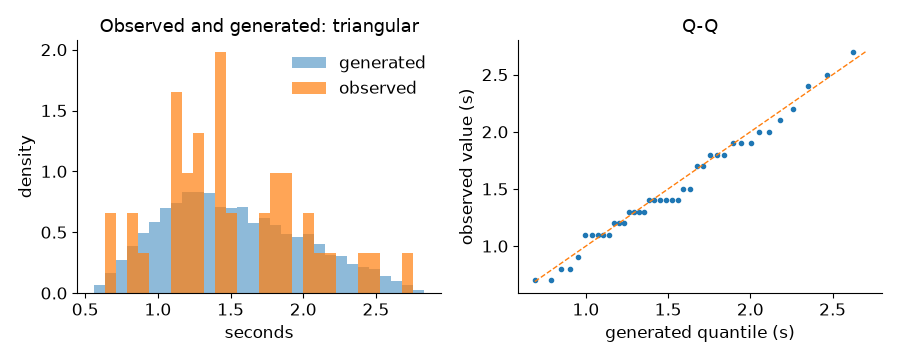

On the left, the histogram of the 40 packing times over the histogram of 10,000 values drawn from the fitted triangular between 0.55 and 2.84 seconds with its mode at 1.2; on the right, a Q-Q plot whose points lie close to the diagonal from 0.7 to 2.7 seconds

On the left, the data and the generated values cover the same range. On the right, each sorted packing time is plotted against the generated value at the same quantile; points on the diagonal mean the two agree. Forty values cannot show much more than that.

Load the Settings

The fitted settings go where the 40 times were:

docs/snippets/yaml/fit_the_inputs.yaml:include
1
2
3
services:
  # The best fit of the 40 packing times, as desflow fit wrote it
  packing: !include fitted/packing.yaml

!include reads a mapping from another file, relative to the blueprint. The file desflow fit wrote:

docs/snippets/yaml/fitted/packing.yaml
1
2
3
4
5
# Fitted by desflow fit from packing_times.csv, column packing_seconds: triangular, from 40 values in s, written in seconds.
dist: triangular
low: 0.546332
mode: 1.2
high: 2.83766
docs/snippets/tutorials/fit_the_inputs.py:service
1
2
# The best fit's settings: dist="triangular", low, mode and high
.add_service("packing", **packing)
docs/snippets/tutorials/fit_the_inputs_low_level.py:service
1
2
3
4
5
6
7
params = SimParameter(
    sim_id="Shop",
    arrival={"orders": DistributionConfig(dist="exponential", rate=1.8)},
    # The best fit's settings: dist="triangular", low, mode and high
    service={"packing": DistributionConfig(**packing)},
    resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
)

result.settings() returns the best candidate's settings and result.settings("gamma") another's, with the same six significant digits the file holds, so a script and a blueprint that use one fit draw the same values.

Does the Choice Matter?

Run the busy hour 40 times with each, as in Trusting Results. In YAML, desflow run fit_the_inputs.yaml --replications 40 --measure tasks.pack_order.wait_mean runs the best fit; --candidates gamma on desflow fit writes the gamma fit instead. The mean wait, with the 95% half-width:

Packing time Mean (s) Mean wait (s)
triangular, the lowest AIC 1.53 2.93 ± 0.25
gamma 1.50 2.33 ± 0.19
the 40 times 1.50 2.32 ± 0.20

Result

Which supported distribution fits the 40 packing times? The triangular has the lowest AIC, but the gamma fits almost as well, 0.11 behind, and by a common rule of thumb an AIC difference below 2 does not tell two fits apart. The choice does change the answer: the triangular gives a mean wait of 2.93 ± 0.25 seconds, the gamma 2.33 ± 0.19, which agrees with the 2.32 ± 0.20 of the 40 times. So the gamma is the better choice for this question.

Why It Works

The triangular's mean is (0.546 + 1.2 + 2.838) ÷ 3 = 1.53 seconds, 2% above the data's 1.50, while the gamma keeps the data's mean exactly, as shape × scale = 9.558 × 0.157 = 1.50. With the packers busy 90% of the time, 2% more packing is a large share of their spare time, so the wait grows far more than 2%. Input Fitting describes every option and outcome.

Full Files

Full files
docs/snippets/yaml/fit_the_inputs.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
# The Fit the Inputs tutorial: the busy hour, with a packing time fitted to the data.
# Fit, then run it:
#   desflow fit packing_times.csv --column packing_seconds --lower 0 --out fitted/packing.yaml
#   desflow run fit_the_inputs.yaml
# 40 replications: desflow run fit_the_inputs.yaml --replications 40 --measure tasks.pack_order.wait_mean
simulation:
  sim_id: Shop
  factor: 0
  random_seed: 42
  warmup: 2 min

resources:
  packers: {current_cap: 3, max_cap: 10}

arrivals:
  orders: {dist: exponential, rate: 1.8, spawn: pack_order}

services:
  # The best fit of the 40 packing times, as desflow fit wrote it
  packing: !include fitted/packing.yaml

tasks:
  pack_order:
    service: packing
    resource: packers
    payload: {event_type: order_packed}

stats: typical

run:
  until: 1 h
docs/snippets/tutorials/fit_the_inputs.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
"""The Fit the Inputs tutorial: which distribution fits the 40 packing times? builder.

Fits the 40 packing times measured at the bench to every family, prints the table
of candidates, then runs the busy hour of Trusting Results 40 times with the best
fit, with the gamma fit and with the 40 times themselves, and prints the mean wait
of each.
"""

import logging

from desflow import SimulationContext, fit_column, replicate
from trusting_results import MEASURED

# The imported model logs at INFO; replications log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)


def fitted():
    """Every family fitted to the measured times."""
    # The 40 packing times, in seconds; none can be below 0
    result = fit_column(MEASURED, unit="s", lower=0)
    print(result.text())  # every candidate, its status and diagnostics
    return result


def shop(packing=None) -> SimulationContext:
    """The busy hour; `packing` is a fit's settings, or None for the 40 times."""
    if packing is None:
        packing = {"dist": "empirical", "values": MEASURED}
    app = (
        SimulationContext(sim_id="Shop", factor=0, random_seed=42, warmup="2 min")
        .add_resource("packers", current_cap=3, max_cap=10)
        .add_arrival("orders", dist="exponential", rate=1.8)
        # The best fit's settings: dist="triangular", low, mode and high
        .add_service("packing", **packing)
        .with_stats("typical")
    )

    @app.task(service_id="packing", resource_id="packers")
    def pack_order(task_id: int):
        return {"event_type": "order_packed"}

    @app.arrival_loop("orders")
    def order_generator(context: SimulationContext):
        task_id = 0
        while True:
            order = yield context.wait_for_arrival("orders")
            context.spawn(pack_order(task_id, entity=order))
            task_id += 1

    return app


def mean_waits(result) -> dict:
    """The mean wait over 40 replications, with each packing distribution."""
    choices = {
        "triangular": result.settings(),
        "gamma": result.settings("gamma"),
        "empirical": None,
    }
    return {
        name: replicate(
            lambda: shop(packing),
            40,
            seed=42,
            until="1 h",
            measures=["tasks.pack_order.wait_mean"],
        ).summary[0]
        for name, packing in choices.items()
    }


if __name__ == "__main__":
    for name, row in mean_waits(fitted()).items():
        print(f"{name}: mean wait {row['mean']:.2f} ± {row['half_width']:.2f} s")

It imports from trusting_results.py, which is in the full files of Trusting Results.

docs/snippets/tutorials/fit_the_inputs_low_level.py
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
"""The Fit the Inputs tutorial: which distribution fits the 40 packing times? low-level.

Fits the 40 packing times measured at the bench to every family, prints the table
of candidates, then runs the busy hour of Trusting Results 40 times with the best
fit, with the gamma fit and with the 40 times themselves, and prints the mean wait
of each.
"""

import logging

from desflow import (
    CapacityConfig,
    DistributionConfig,
    DynamicResource,
    LowLevelModel,
    SimParameter,
    fit_column,
    replicate,
)
from trusting_results_low_level import MEASURED, WARMUP, order_generator

# The imported model logs at INFO; replications log only their warnings
logging.getLogger("desflow").setLevel(logging.WARNING)


def fitted():
    """Every family fitted to the measured times."""
    # The 40 packing times, in seconds; none can be below 0
    result = fit_column(MEASURED, unit="s", lower=0)
    print(result.text())  # every candidate, its status and diagnostics
    return result


def busy_hour(packing):
    """The busy hour's model, with a packing distribution's settings."""
    params = SimParameter(
        sim_id="Shop",
        arrival={"orders": DistributionConfig(dist="exponential", rate=1.8)},
        # The best fit's settings: dist="triangular", low, mode and high
        service={"packing": DistributionConfig(**packing)},
        resources={"packers": CapacityConfig(current_cap=3, max_cap=10)},
    )

    def model(env, sampler):
        env.registry.register_sim_parameter(params)
        packers = DynamicResource(env, "Shop", "packers")
        env.process(order_generator(env, sampler, packers))

    return LowLevelModel(model, sim_id="Shop")


def mean_waits(result) -> dict:
    """The mean wait over 40 replications, with each packing distribution."""
    choices = {
        "triangular": result.settings(),
        "gamma": result.settings("gamma"),
        "empirical": {"dist": "empirical", "values": MEASURED},
    }
    return {
        name: replicate(
            busy_hour(packing),
            40,
            seed=42,
            until=3600,
            warmup=WARMUP,
            measures=["tasks.pack_order.wait_mean"],
        ).summary[0]
        for name, packing in choices.items()
    }


if __name__ == "__main__":
    for name, row in mean_waits(fitted()).items():
        print(f"{name}: mean wait {row['mean']:.2f} ± {row['half_width']:.2f} s")

It imports from trusting_results_low_level.py, which is in the full files of Trusting Results.

Next, Stock asks what happens when the shop runs out of boxes.
